Highend logic analyzers are essential tools for professionals and serious electronics enthusiasts who need precise, high-speed data capture across multiple channels. The best options, like the Saleae Logic Pro 16, deliver extensive channel counts and blazing-fast sampling rates, but often come with a higher price tag. Other standout picks, such as the DSLogic U3Pro32, offer impressive performance with broader compatibility, though they might lack some user-friendly features. The main tradeoffs in this category revolve around balancing power, ease of use, and cost. Continue reading for a detailed comparison of these top-tier devices and what makes each one unique.
Complete the kit
Key Takeaways
- Top highend analyzers deliver over 16 channels and sampling rates exceeding 500MHz for demanding applications.
- Portability and multi-platform support are common features among the best options, but they can increase price.
- Price often correlates with advanced features like PWM generation, greater memory depth, and higher sampling speeds.
- Ease of use varies significantly, with some models offering plug-and-play compatibility and others requiring more setup.
- Choosing the right analyzer depends heavily on specific use cases—whether for professional debugging or complex development projects.
| highend logic analyzer | Channels | Sampling rate |
|---|---|---|
| Logic 8 | 8 | — |
| USB Logic Analyzer | 16 | 400 MHz |
| DSLogic Plus USB-Based Logic A | 16 | 400 MHz |
| Logic Pro 8 | 8 | — |
| USB Logic Analyzer LA2016 16 C | 16 | 200 MHz |
| Logic Pro 8 | 8 | — |
| LA5016 USB Logic Analyzer | 16 | 500 MS/s |
| DSLogic U3Pro32 USB Logic Anal | 32 | 1GHz |
| HiLetgo USB Logic Analyzer Dev | 8 | 24 MHz |
| Logic Pro 16 | 16 | — |
| Logic 8 | — | — |
| DSLogic U3Pro16 USB Logic Anal | 16 | 1GHz |
More Details on Our Top Picks

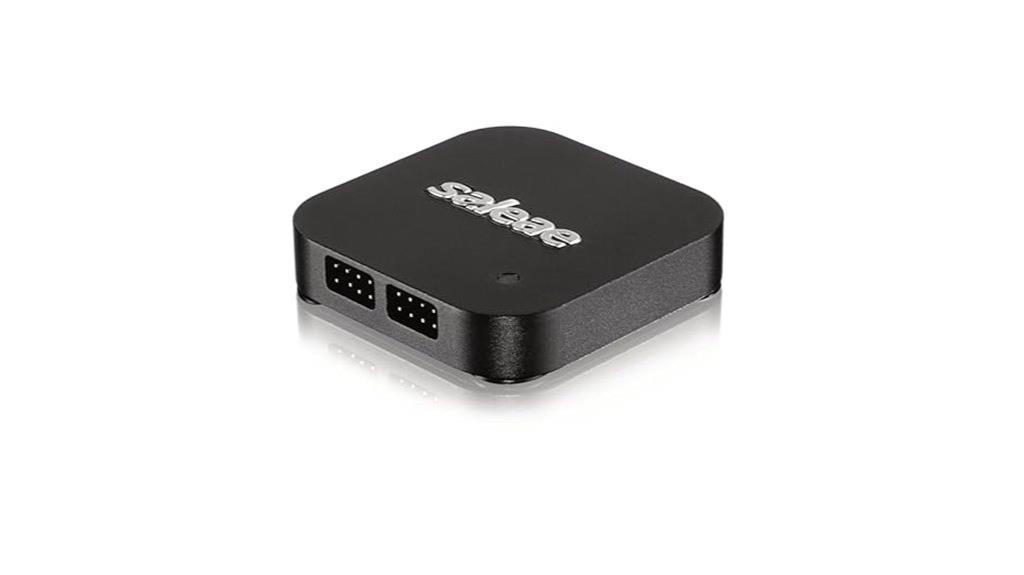

Logic 8 (Black) – Saleae 8-Channel Logic Analyzer
This option excels in portability and multi-platform support, making it ideal for engineers who need a compact, versatile tool. Its 8 channels support both digital and analog signals, with a maximum digital sample rate of 100 MS/s, which is sufficient for most embedded projects. Compared to the Logic Pro 8 (Red), the Black version offers similar functionality but with a more compact form factor and broader OS compatibility, though it’s limited to USB 2.0, which can restrict sustained high-speed data transfers. Its cross-platform capability makes it appealing for users working across different systems, but the lower analog sample rate (10 MS/s) may be a drawback for high-precision analog measurements. Overall, this analyzer suits portable lab setups or field testing where size and OS flexibility matter most.
Pros:- Highly portable and lightweight design
- Supports Windows, Mac, and Linux seamlessly
- Multi-use inputs for digital and analog signals
Cons:- Limited to USB 2.0 interface, restricting sustained data throughput
- Analog sample rate capped at 10 MS/s, less suitable for high-fidelity analog analysis
Best for: Engineers needing a compact, cross-platform analyzer for digital and basic analog work on the go.
Not ideal for: Power users requiring ultra-high-speed sampling or extensive analog analysis, as it’s limited to 10 MS/s on analog channels.
- Channels:8
- Digital sample rate:100 MS/s
- Analog sample rate:10 MS/s
- Input types:Digital/Analog
- Connectivity:USB 2.0
- Supported OS:Windows, Mac, Linux
Our verdict“Best suited for users who prioritize portability and cross-platform flexibility over maximum sampling speed.”
USB Logic Analyzer, 16 Channels, 400MHz Sampling Rate, 16G Depth, USB 2.0 Interface for PC Analysis
The DSLogic Plus stands out for its impressive 400MHz sampling rate and extensive protocol decoding capabilities, making it ideal for detailed digital analysis. Its support for nearly 100 protocols surpasses many competitors like the LA2016, which is more focused on basic decoding. However, its reliance on USB 2.0 can limit sustained high-speed transfers, especially when capturing long sessions at maximum speeds. The setup may also be daunting for less experienced users, as configuring multiple modes and protocols requires familiarity with digital analysis tools. Compared with the DSLogic U3Pro32, this model offers a slightly lower maximum sampling rate but maintains broad compatibility and extensive accessory support. It’s best for professionals needing high-speed, multi-protocol analysis without the bulk of larger units.
Pros:- High sampling rate of 400MHz for detailed digital capture
- Supports nearly 100 protocols for versatility
- Cross-platform compatibility including Windows, macOS, and Linux
Cons:- Requires advanced knowledge to set up and operate effectively
- Limited to USB 2.0, which can bottleneck data transfer at high speeds
Best for: Digital engineers requiring detailed, multi-protocol analysis with high sampling rates on multiple platforms.
Not ideal for: Beginners or those needing analog signal analysis, as it handles only digital signals and has a complex setup process.
- Channels:16
- Sampling rate:400 MHz
- Memory depth:16G
- Supported OS:Windows, Mac, Linux
- Interface:USB 2.0
- Input voltage:-30V to +30V
Our verdict“This analyzer offers excellent digital performance for experienced users needing high-speed, multi-protocol analysis across platforms.”
DSLogic Plus USB-Based Logic Analyzer with 400MHz Sampling Rate, 256Mbits Memory, USB 2.0 Interface, 16 Channels
The DSLogic Plus offers a compelling mix of high-speed digital sampling at 400MHz and a robust 256Mbit memory, making it a strong choice for detailed digital debugging. Its open-source DSView software and support for multiple protocols provide flexibility that appeals to developers and researchers alike. Compared to the LA2016, which emphasizes protocol decoding and ease of use, the DSLogic Plus leans more toward customizability and software flexibility, though its setup can be complex for newcomers. Its aluminum case and shielded wires add durability, but it’s limited to digital signals and does not support analog measurements. This device is best suited for professional digital signal analysis where software flexibility and high-speed capture are priorities.
Pros:- High sampling rate of 400MHz for detailed digital analysis
- Open source software offers customization and transparency
- Durable construction with shielded wires and aluminum case
Cons:- Requires technical expertise to configure and operate
- Limited to digital signals only, excluding analog analysis
Best for: Digital engineers and developers needing a customizable, high-speed analyzer with open source software support.
Not ideal for: Those primarily working with analog signals or seeking plug-and-play simplicity, as it’s tailored for digital signals and requires technical setup.
- Channels:16
- Sampling rate:400 MHz
- Memory:256 Mbits
- Interface:USB 2.0 Type-C
- Supported OS:Windows, MacOS, Linux
- Additional features:Adjustable thresholds, open source software
Our verdict“Ideal for professionals who want a flexible, high-speed digital analyzer with open source software options and durability.”
Logic Pro 8 (Red) – Saleae 8-Channel Logic Analyzer – Compatible with Windows, Mac, or Linux – Easy to Use, Ultra-Portable, Saves Time & Frustration
The Logic Pro 8 (Red) combines high-speed sampling—up to 500 MS/s—with user-friendly features, making it a top choice for those who prioritize ease and speed. Its USB 3.0 interface enables faster data transfer compared to older USB standards, which benefits users analyzing longer or more complex captures. The 8 channels support both digital and analog signals, similar to the Logic 8 (Black), but with a focus on simplicity and quick setup. Compared to the LA2016, the Logic Pro 8 offers higher sampling speeds and a more intuitive interface, but it might lack the protocol decoding depth of some specialized analyzers. This pick makes the most sense for users seeking straightforward operation without sacrificing high-speed digital data handling.
Pros:- High sampling rate of 500 MS/s for fast digital capture
- USB 3.0 interface enables rapid data transfer
- Easy to set up and use across multiple OS platforms
Cons:- Limited protocol decoding features compared to more advanced analyzers
- Analog sampling rate is lower at 50 MS/s, less suited for precision analog work
Best for: Designers and engineers who want high-speed, easy-to-use analysis with minimal setup fuss.
Not ideal for: Power users requiring extensive protocol decoding or analog analysis at lower speeds, as this model emphasizes speed and simplicity over protocol depth.
- Channels:8
- Digital sample rate:500 MS/s
- Analog sample rate:50 MS/s
- Interface:USB 3.0
- Supported OS:Windows, Mac, Linux
- Samples:10+ billion digital samples
Our verdict“Best suited for users who need high-speed digital analysis with a straightforward, user-friendly experience.”
USB Logic Analyzer LA2016 16 Channel 200MHz with PC Software
The LA2016 offers a solid balance of 16 channels at 200MHz, supported by comprehensive protocol decoding for over 20 standards, making it a practical choice for many digital debugging tasks. Its 1Gbit memory supports long captures, while the bundled PC software simplifies analysis without requiring extensive setup. Compared to the higher-speed DSLogic models, the LA2016’s 200MHz rate is more modest but still sufficient for typical digital signals, especially in embedded designs. Its portability and broad OS support make it appealing for field work and lab use, but it’s less suited for applications demanding ultra-high sampling speeds or analog measurement. This analyzer is well-suited for hobbyists and professionals needing reliable protocol decoding at an accessible price point.
Pros:- 16 channels at 200MHz sampling rate for reliable digital analysis
- Supports over 20 protocols for versatile debugging
- Cross-platform software simplifies data analysis
Cons:- Limited to 200MHz, not suitable for high-speed digital signals
- Requires familiarity with digital debugging software
Best for: Digital engineers seeking an affordable, multi-protocol analyzer with good memory capacity for routine debugging.
Not ideal for: Users needing high-frequency or analog analysis, as it is limited to 200MHz digital sampling and does not support analog signals.
- Channels:16
- Sampling rate:200 MHz
- Memory:1 Gbit
- Protocols supported:20+
- Compatibility:Windows, MacOS, Linux
- Power:USB bus-powered
Our verdict“A budget-friendly, multi-protocol digital analyzer suited for routine debugging and educational purposes.”
Logic Pro 8 (Black) – Saleae 8-Channel Logic Analyzer – Compatible with Windows, Mac, or Linux – Easy to Use, Ultra-Portable, Saves Time & Frustration
The Logic Pro 8 (Black) stands out for its user-friendly interface and cross-platform compatibility, making it ideal for professionals who need reliable, portable data capture. Compared to the Logic Pro 16, it offers half the channels but maintains a high sample rate up to 500 MS/s, ensuring detailed signal analysis. Its portability and ease of use make it a strong choice for field debugging, though it sacrifices some scalability for simplicity. The device supports both digital and analog signals, with extensive sample memory, but its 8-channel limit may be restrictive for more complex setups. Overall, this model is perfect for those who prioritize straightforward operation without sacrificing high performance, but it may not suffice for extensive multi-channel projects.Pros:- High digital sample rate up to 500 MS/s for precise timing analysis
- Cross-platform support for Windows, Mac, and Linux
- Compact, portable design for field use
Cons:- Limited to 8 channels, which may be insufficient for complex systems
- No built-in protocol decoding for some specialized protocols
Best for: Engineers and developers who need a portable, reliable high-end analyzer with up to 8 channels for versatile debugging tasks.
Not ideal for: Large-scale projects requiring more than 8 channels or extensive protocol decoding, where the smaller capacity becomes limiting.
- Channels:8
- Digital sample rate:500 MS/s
- Analog sample rate:50 MS/s
- Memory capacity:10 Billion+ samples digital
- Compatibility:Windows, Mac, Linux
- Form factor:Portable
Our verdict“This analyzer is best suited for professionals needing a portable, high-speed device with straightforward operation for smaller projects.”
LA5016 USB Logic Analyzer – 16 Channels, 500MS/s, 10GB Depth, PWM Generator, Multi-Platform Support
The LA5016 USB Logic Analyzer excels in protocol support and user-friendly operation, making it ideal for debugging multiple communication standards. Unlike the Logic Pro 8, it offers 16 channels and a large 10GB memory, enabling more complex, multi-protocol analysis with less data loss. Its easy setup and cross-platform software reduce the learning curve for newcomers or multi-disciplinary teams. However, being tethered via USB limits portability for fieldwork, and its setup can be complex for beginners unfamiliar with protocol decoding. It’s an excellent choice for engineers needing broad protocol support, but less so for portable or quick-turnaround diagnostics.Pros:- Supports 16 channels with 500 MS/s sampling rate for detailed analysis
- Large 10GB memory for extended captures
- Multi-protocol support including UART, I2C, SPI, CAN, USB, HDMI
Cons:- USB tethered design reduces mobility for on-site testing
- Setup complexity can be daunting for beginners
Best for: Embedded engineers and firmware developers needing multi-protocol debugging on a desktop or lab setup.
Not ideal for: Field technicians requiring a completely portable device or users with limited technical experience in protocol decoding.
- Channels:16
- Sampling Rate:500 MS/s
- Memory Depth:10GB
- Protocols Supported:UART, I2C, SPI, CAN, USB, HDMI
- Platform Compatibility:Windows, macOS, Linux
Our verdict“This analyzer is perfect for professionals who need versatile debugging capabilities on a stable, multi-protocol platform.”
DSLogic U3Pro32 USB Logic Analyzer with 1GHz Sampling Rate and 32 Channels
The DSLogic U3Pro32 offers outstanding raw performance with a 1GHz sampling rate and 32 digital channels, suitable for detailed high-frequency signal analysis. This makes it a superior choice over the Logic Pro 8 for capturing fast digital signals in complex systems. Its onboard DDR3 memory supports various stream and buffer modes, enhancing flexibility for advanced users. Still, the complexity of setup and lack of detailed protocol decoders may be a barrier for less technical buyers. Its rugged design with shielded wires and aluminum case ensures clean waveforms, but the device’s advanced features come with a steeper learning curve, making it less ideal for beginners.Pros:- Unmatched 1GHz sampling rate for capturing high-frequency signals
- Supports multiple stream and buffer modes for flexible data acquisition
- 32 channels and rugged build for complex, large-scale testing
Cons:- Complex setup may intimidate less experienced users
- Limited protocol decoding features
Best for: Advanced engineers working on high-speed digital systems or FPGA debugging who need maximum sampling rates and large channel counts.
Not ideal for: Beginners or users seeking a portable, plug-and-play solution with simple protocol decoding.
- Channels:32
- Sampling Rate:1GHz
- Memory:2Gbits DDR3
- Stream Modes:Various, up to 1GHz
- Compatibility:Windows, macOS, Linux
- Build:Aluminum case, shielded wires
Our verdict“This device is best for high-end, high-frequency digital analysis where raw speed and capacity outweigh ease of use.”

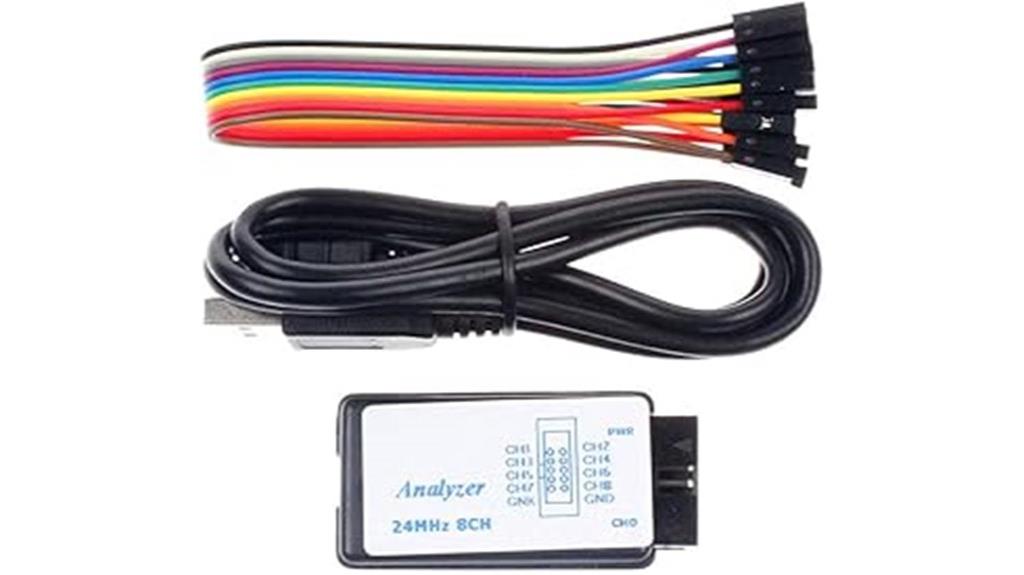

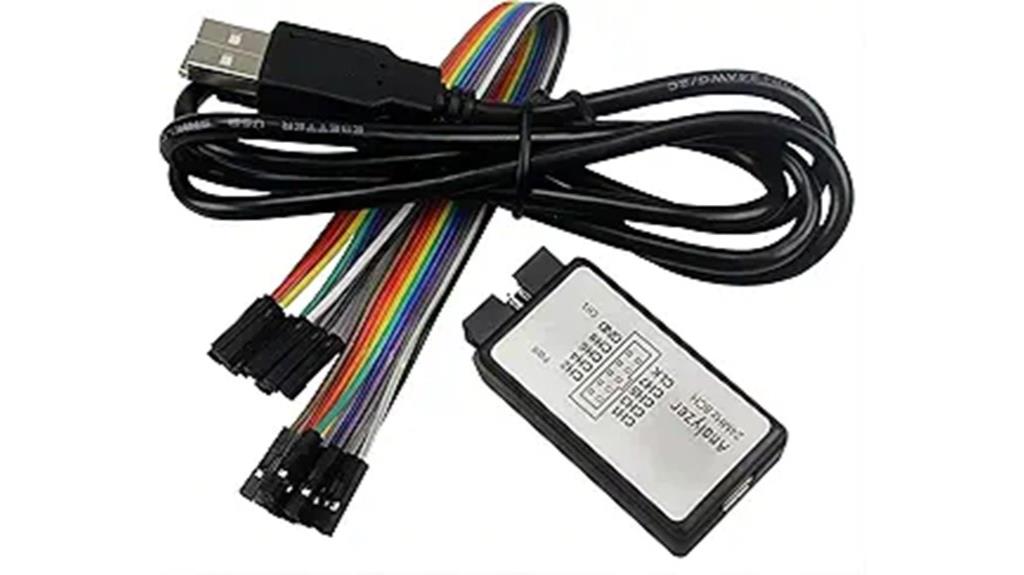

HiLetgo USB Logic Analyzer Device with EMI Ferrite Ring USB Cable 24MHz 8CH 24MHz 8 Channel UART IIC SPI Debug
The HiLetgo 24MHz 8-Channel Analyzer offers a simple, affordable solution for basic logic analysis, suitable for hobbyists or quick diagnostics. While its 24MHz sampling rate is much lower than high-end options like the Logic Pro 16 or DSLogic U3Pro32, it still covers common UART, I2C, and SPI signals effectively. Compared to more expensive models, it lacks advanced features like extensive protocol decoding or high-speed sampling, but its straightforward operation and included EMI ferrite ring make it accessible for entry-level users. Its limited channels and lower speed mean it’s not suited for complex, high-frequency projects, but it delivers reliable performance for simple debugging tasks.Pros:- Affordable price point for entry-level users
- Supports critical protocols like UART, I2C, and SPI
- Includes EMI ferrite ring for improved noise immunity
Cons:- Limited to 24MHz sampling rate, unsuitable for high-frequency signals
- Only 8 channels, restricting complex system analysis
Best for: Electronics students, hobbyists, or technicians needing a low-cost device for basic protocol analysis.
Not ideal for: Professional engineers or advanced developers working on high-speed digital systems or multi-channel projects.
- Channels:8
- Sampling Rate:24 MHz
- Input Voltage Range:-0.5V to 5.25V
- Input Impedance:1 MΩ
- Included Accessories:EMI ferrite ring USB cable
Our verdict“This analyzer provides a solid entry point for basic troubleshooting but isn’t suited for demanding high-speed or multi-channel applications.”
Logic Pro 16 (Black) – Saleae 16-Channel Logic Analyzer – Compatible with Windows, Mac, or Linux – Easy to Use, Ultra-Portable, Saves Time & Frustration
The Logic Pro 16 combines high channel count and portability, making it ideal for field engineers and on-the-go debugging. Its 16 channels and 500 MS/s sample rate provide more detailed signals than the Logic Pro 8, with similar cross-platform support. Compared to the LA5016, it offers less protocol support but excels in ease of use and mobility, making it suitable for quick deployments. Its larger channel count benefits complex multi-signal troubleshooting, but it retains a portable form factor that might be less suitable for permanent lab setups. This model strikes a balance between power and convenience, tailored for professionals who need high performance in a portable package.Pros:- 16 channels with digital and analog capabilities
- Cross-platform support for Windows, Mac, and Linux
- Portable design for field use
Cons:- Less protocol decoding support compared to dedicated lab analyzers
- Limited to 16 channels, which may be restrictive for very complex systems
Best for: Field technicians and engineers who need a portable, high-channel-count analyzer for diverse debugging tasks.
Not ideal for: Heavy-duty lab environments requiring extensive protocol decoding or maximum data logging capacity.
- Channels:16
- Digital sample rate:500 MS/s
- Analog sample rate:50 MS/s
- Memory:10 Billion+ samples digital
- Compatibility:Windows, Mac, Linux
- Portability:Yes
Our verdict“This device is well-suited for professionals who need a portable, high-channel-count analyzer with reliable performance for diverse debugging scenarios.”
Logic 8 (Red) – Saleae 8-Channel Logic Analyzer
The Logic 8 (Red) stands out for its ability to handle both digital and analog signals with high sampling rates, making it a flexible choice compared to the Logic 8 (Black), which is primarily digital. Its portability and cross-platform compatibility make it ideal for field testing or quick setups. However, its reliance on PC memory for large samples and the limited USB 2.0 interface can hinder performance during extended recording sessions. Unlike the more robust DSLogic U3Pro16, which features a 1GHz sampling rate and more advanced hardware, the Logic 8 is better suited for users who prioritize ease of use and portability over raw speed and extensive protocol decoding capacity.
Pros:- Supports both digital and analog signals with high sampling rates
- Compatible with Windows, Mac, and Linux platforms
- Portable and easy to connect for quick testing
Cons:- Limited to USB 2.0, which can slow down data transfer during large captures
- Requires significant PC memory for handling extensive samples
- Lacks detailed software features beyond basic support
Best for: Engineers and hobbyists needing flexible digital and analog signal analysis across multiple platforms without complex setup.
Not ideal for: Power users requiring ultra-fast sampling or large data buffers for detailed, lengthy captures, who should consider the DSLogic U3Pro16 instead.
- Number of Inputs:8
- Input Types:Digital/Analog
- Digital Sample Rate:up to 100 MS/s
- Analog Sample Rate:up to 10 MS/s
- Digital Samples:over 10 billion
- Connectivity:USB 2.0
Our verdict“This analyzer suits users seeking versatile, portable testing with decent multi-platform support, but not those needing maximum sampling speed or large data storage.”

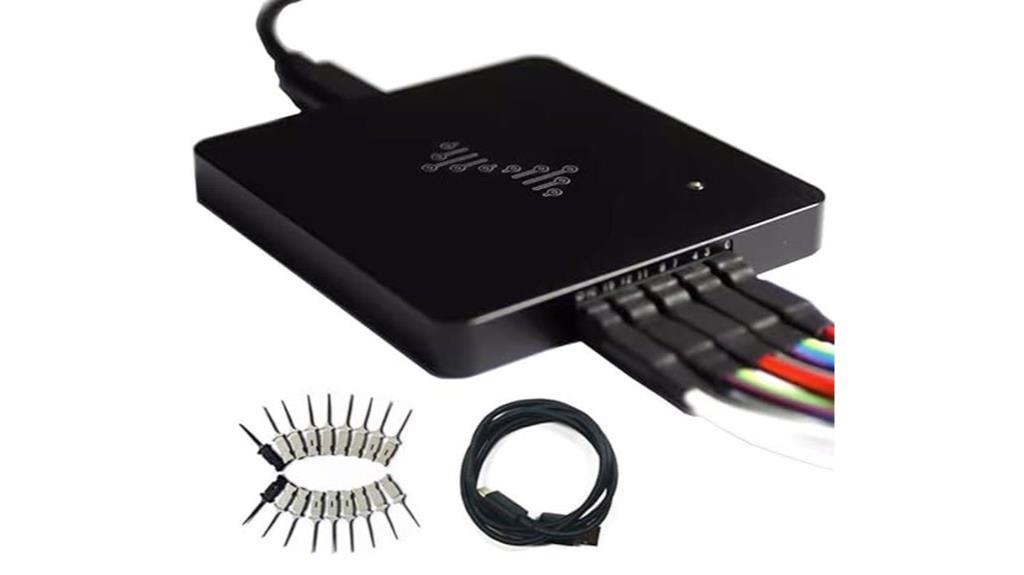

DSLogic U3Pro16 USB Logic Analyzer with 1GHz Sampling Rate and 16 Channels
The DSLogic U3Pro16 offers a significant leap in speed with its 1GHz sampling rate, making it ideal for detailed, high-speed signal analysis compared to the Logic 8 (Red). Its 16 channels and support for both stream and buffer modes provide extensive flexibility for complex debugging tasks. The durable aluminum case and shielded wires contribute to cleaner waveform signals, essential for precise protocol decoding. The setup complexity might be a hurdle for newcomers, and its hardware-centric design caters best to experienced users with specific high-speed requirements. Unlike the more portable Logic 8, this device prioritizes speed and hardware robustness, which come with a steeper learning curve and higher cost.
Pros:- Impressive 1GHz sampling rate for capturing fast signals
- Supports multiple protocol decoders and open-source software
- Solid aluminum case and shielded wires for cleaner signals
Cons:- Setup may be intimidating for less experienced users
- No included price information, potentially costly for hobbyists
- Designed for technical users with specific high-speed needs
Best for: Electronics professionals and advanced hobbyists needing high-speed, multi-protocol decoding with detailed signal fidelity.
Not ideal for: Beginners or users with modest data capture needs, as the setup can be complex and the hardware may be overkill.
- Channels:16
- Sampling Rate:1GHz
- Memory:2Gbits DDR3
- Interface:USB 3.0 Type-C
- Supported Modes:Stream and Buffer
- Stream Mode Sample Rate:up to 1GHz @ 3 channels
Our verdict“This analyzer is best suited for those requiring ultra-fast, high-precision analysis of complex digital protocols, accepting a more involved setup process.”
How We Picked
To evaluate these highend logic analyzers, I focused on performance metrics like maximum sampling rate, channel count, and memory depth, as these directly impact their ability to handle complex signals. Usability factors, such as cross-platform support, software stability, and ease of setup, were also critical. Build quality and expandability, including features like PWM generators or additional triggers, helped distinguish premium options. Price was considered in relation to features offered, aiming to highlight models that deliver the best value for their capabilities. Products were ranked based on a balanced combination of these criteria, prioritizing high performance and user experience for demanding professional use.Factors to Consider When Choosing Highend Logic Analyzers
Selecting a highend logic analyzer requires weighing several key factors beyond just specifications. Each user has different priorities—some need maximum channels, others prioritize high sampling speeds or ease of use. Understanding these broader considerations can prevent costly mistakes and ensure you choose a device that truly meets your needs.Channel Count and Sampling Speed
The number of channels and maximum sampling rate determine how much data you can capture simultaneously and how accurately you can analyze high-speed signals. Higher channel counts and faster speeds are essential for complex debugging, but they often come with increased costs and complexity. Balance your specific project needs with budget constraints to find the right mix.
Software Compatibility and Ease of Use
Reliable, user-friendly software can significantly reduce setup time and frustration. Multi-platform support (Windows, Mac, Linux) is a plus, especially for teams or diverse workflows. Be wary of models with limited or unstable software, as they can hinder productivity and require additional technical workarounds.
Memory Depth and Data Storage
Deep memory allows for longer capture windows without data loss, which is vital for debugging intermittent issues. Consider whether the device’s data storage capacity matches your typical data acquisition needs. Higher memory often means higher cost but can save time during extended analysis sessions.
Additional Features and Expandability
Features like PWM generators, trigger options, and protocol decoding expand a device’s versatility. These extras can justify higher prices if they match your project requirements. Carefully evaluate whether these capabilities are essential or if they add unnecessary complexity for your use case.
Price and Long-Term Value
Highend analyzers represent a significant investment. Focus on the total value—considering durability, software updates, and support—rather than just initial cost. Sometimes paying more upfront results in better performance and longevity, saving money over time.
Frequently Asked Questions
Is a higher sampling rate always better for my projects?
Not necessarily. While higher sampling rates enable capturing very fast signals more accurately, they also generate larger data files and require more processing power. For most applications, a sampling rate of 200-500MHz is sufficient unless you’re working with extremely high-frequency signals. Assess your signal frequencies and choose a rate that provides a good balance between performance and manageability.
How important is software support across different operating systems?
Multi-platform support can significantly simplify integration into existing workflows, especially in collaborative environments. If you predominantly work on Windows, Mac, or Linux, confirm that the analyzer’s software is fully compatible and regularly updated. Software stability and features directly impact ease of use and overall productivity, making this a key consideration.
Should I prioritize channel count over sampling speed?
This depends on your typical debugging tasks. Multiple channels are crucial if you’re analyzing complex digital systems with many signals. However, high sampling speeds are essential for capturing fast transient events. For most high-end applications, a balance between the two—like 16 channels at 500MHz—offers comprehensive coverage, but your specific needs may tilt the priority one way or the other.
Are additional features like PWM generators worth the extra cost?
If your projects involve protocol testing, signal generation, or complex trigger setups, these features can be invaluable. They reduce the need for separate testing tools and streamline workflows. However, if your primary concern is just data capturing and analysis, simpler models without these extras may be more cost-effective.
What should I consider for future expandability?
Look for analyzers with modular architectures or upgrade paths, such as additional trigger options or extra channels. This foresight can extend the device’s usefulness as your projects grow more complex. However, be aware that expandable devices often come at a premium, so weigh potential future needs against current budget constraints.
Conclusion
The best overall highend logic analyzer for most users remains the Saleae Logic Pro 16, thanks to its combination of user-friendly software, high channel count, and portability. For those prioritizing cost-effectiveness without sacrificing performance, the DSLogic U3Pro32 offers impressive specs at a more accessible price. Professionals needing the highest speeds and expandability should consider the LA5016 or DSLogic U3Pro16. Beginners or hobbyists should lean toward models with simpler interfaces, while experienced engineers will benefit from advanced features like PWM generation and multi-platform support. Tailoring your choice to your project scope and future needs will ensure you get the most value from your investment.
