Finding the right microscope for semiconductor inspection involves balancing magnification, image clarity, ease of use, and budget. The Professional Trinocular Stereo Zoom Microscope stands out for its versatile magnification range and superior build quality, making it ideal for detailed inspections. The Elikliv Autofocus 4K Digital Microscope offers advanced digital features and high resolution, perfect for precise digital analysis. However, higher-end options often come with a steeper learning curve and higher costs, while more affordable models may sacrifice image quality or features. Continue reading for a detailed breakdown of each option and how they compare across key factors.
Complete the kit
Key Takeaways
- High magnification alone isn’t enough; image clarity and lighting are critical for accurate semiconductor inspection.
- Digital microscopes with HDMI or USB output simplify capturing and analyzing images, especially for documentation.
- Build quality and stability significantly impact ease of use during detailed inspections, favoring models with robust stands.
- Budget models can suffice for basic checks but often lack the resolution and precision needed for professional work.
- Choosing between optical and digital scopes depends on whether real-time observation or digital analysis is the priority.
| microscope for semiconductor inspection | Magnification | Lighting | Connectivity |
|---|---|---|---|
| 5" LCD Digital Soldering Micro | up to 1000X | — | Plug & Play PC (Windows & Mac) |
| Andonstar AD246S-M 3 Lens 2160 | 15-2040x | 8 levels of adjustable LED lights | — |
| Professional Trinocular Stereo | — | 56S LED ring light | — |
| Elikliv Autofocus 4K Digital M | 2000X | — | HDMI, USB |
| TOMLOV DM9 7-Inch Digital Micr | — | LED fill and gooseneck lights | — |
| Elikliv LCD Digital Coin Micro | up to 1000x | 8 adjustable LED lights | Windows and Mac compatible |
More Details on Our Top Picks
5″ LCD Digital Soldering Microscope with C-Clamp for PCB Repair
This 5-inch LCD digital microscope stands out for its large, eye-friendly display and high magnification up to 1000X, making it ideal for detailed soldering and PCB inspection. Unlike larger stand-alone models like the Elikliv EM4K-AF, it’s more portable and easier to set up in tight workspaces. However, its reliance on Micro SD cards for image storage adds an extra step, and the lack of auto-focus means manual adjustments are necessary for sharp images. Its flexible arm offers multi-angle viewing, which is crucial for intricate electronics work, but the absence of specified power details could be a concern for uninterrupted use.Pros:- High magnification up to 1000X for detailed soldering inspection
- Large 5-inch IPS display reduces eye strain during prolonged work
- Flexible arm allows versatile positioning
Cons:- Requires Micro SD card for saving images, which is not included
- No auto-focus, manual adjustments needed for clarity
- Power and battery details are not specified, affecting portability assessment
Best for: Hobbyists and electronics technicians needing a portable, high-magnification digital microscope for detailed PCB repair.
Not ideal for: Biological researchers or users requiring auto-focus and high-end imaging features, as these are not included.
- Display Size:5 inches
- Magnification:up to 1000X
- Connectivity:Plug & Play PC (Windows & Mac)
- Memory Card Support:Supports Micro SD cards up to 32GB
- Power:Not specified
Our verdict“This microscope suits electronics repair specialists seeking a compact, high-magnification digital tool with a clear display.”

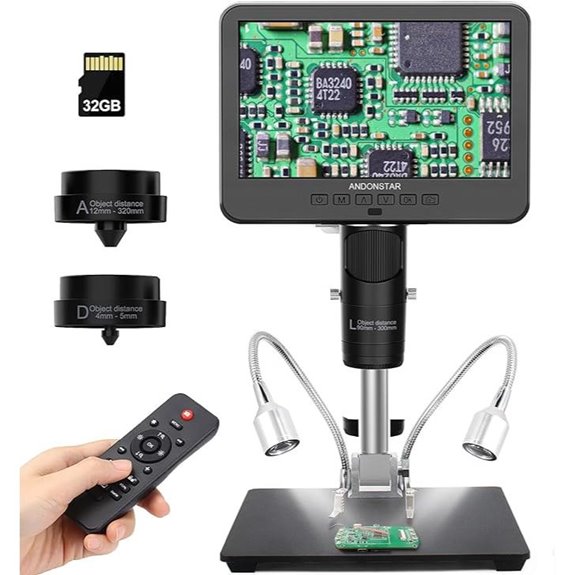

Andonstar AD246S-M 3 Lens 2160P HDMI Digital Microscope with 7 Inch LCD for Electronics Repair and Biological Observation
The Andonstar AD246S-M offers three interchangeable lenses and a 7-inch UHD display, making it suitable for both detailed electronics work and biological observation. Its 2160P resolution surpasses many competitors like the Elikliv EM4K-AF, offering crisp, detailed images. The inclusion of a professional boom arm stand and measurement software enhances precision, but the complexity of setup may challenge beginners, and its size and weight could restrict mobility. Compared to simpler models, this microscope provides extensive versatility for users who need both macro and micro views in one device.Pros:- Three interchangeable lenses for versatile observation
- UHD 2160P resolution delivers highly detailed images
- Adjustable stand and lighting enhance precision
Cons:- Setup can be complicated for beginners
- Heavy and large, requiring stable workspace
- High price may not suit casual users
Best for: Professional electronics repair technicians and educators who need flexible observation options and high-resolution imaging.
Not ideal for: Casual hobbyists or those with limited workspace, due to its weight and setup complexity.
- Resolution:2160P UHD
- Magnification:15-2040x
- Screen Size:7 inches
- Lens Types:L, A, D
- Stand:Pro boom arm
- Lighting:8 levels of adjustable LED lights
Our verdict“This microscope is ideal for professionals needing adaptable, high-resolution imaging across various inspection scenarios.”
Professional Trinocular Stereo Zoom Microscope, 3.5X-90X Magnification with WF10X Eyepieces, 0.7X-4.5X Zoom Objective, Auxiliary Lenses, Double-Arm Boom Stand, 56S LED Ring Light
This professional trinocular stereo microscope excels in providing a wide magnification range from 3.5X to 90X, making it perfect for inspecting larger components and assemblies. Its robust steel base and adjustable LED lighting ensure durability and clear illumination, especially valuable compared to smaller, less stable models like the Elikliv. The trinocular port supports digital camera attachment for high-quality imaging, but its weight and size demand a dedicated setup space, and the complexity might be overwhelming for beginners. It’s best suited for detailed 3D inspections and digital documentation.Pros:- Wide magnification range for various inspection needs
- Stable steel base ensures durability
- Adjustable LED lighting for optimal illumination
- Trinocular port for digital camera connection
Cons:- Heavy weight necessitates sturdy setup
- Complex setup may be challenging for novices
- Price not specified in the data
Best for: Engineers and quality control professionals requiring stable, high-magnification 3D inspection with digital capture capabilities.
Not ideal for: Hobbyists or users with limited space, due to its weight and setup complexity.
- Magnification Range:3.5X-90X
- Eyepieces:WF10X
- Zoom Objective:0.7X-4.5X
- Stand:Double-arm boom
- Lighting:56S LED ring light
- Weight:18 lbs
Our verdict“This model is a strong choice for professionals needing versatile 3D inspection with high-quality imaging options.”

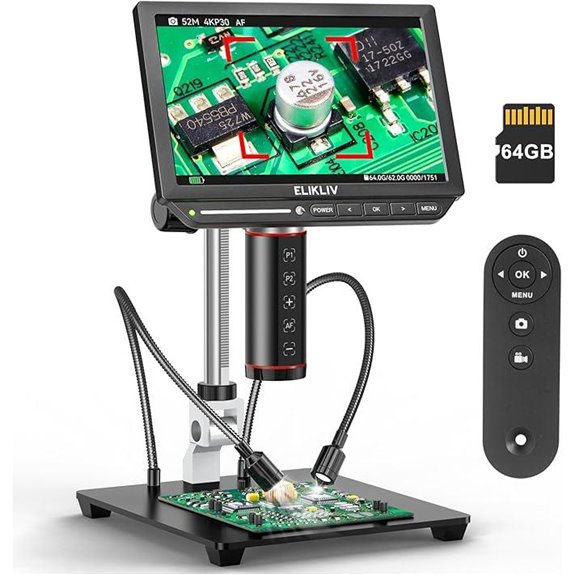

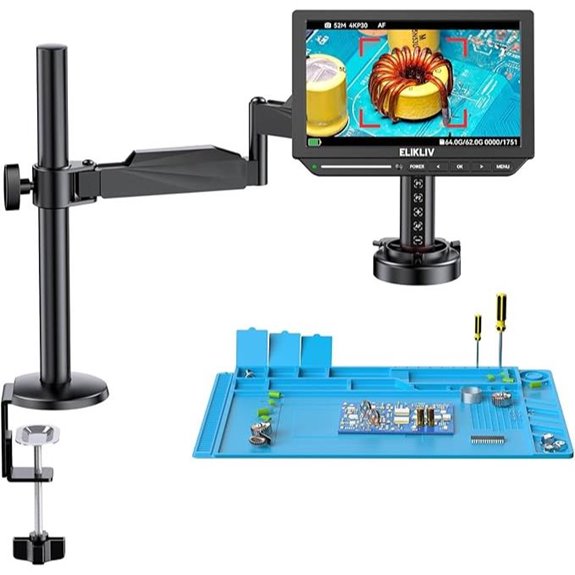

Elikliv Autofocus 4K Digital Microscope EM4K-AF, 8″ Soldering Microscope with 2000X Magnification, HDMI Output, IPS Screen, 52MP Camera, 10″ Stand, Side Lights, Grid Line, 16GB Storage, for Coin Inspection & Watchmaking
The Elikliv EM4K-AF offers advanced features like auto-focus with AI, a large 8-inch IPS screen, and 4K video resolution, making it stand out for detailed coin and watchmaking inspections. Its 2000X magnification surpasses many models like the TOMLOV DM9, providing extreme close-up detail. The auto-focus system simplifies operation, especially for users unfamiliar with manual adjustments. Nevertheless, its size and weight limit portability, and the high price might deter casual users. The inclusion of split-screen and grid functions adds versatility for professional applications, but setup complexity could challenge beginners.Pros:- Auto-focus with AI algorithms for quick, accurate imaging
- 4K UHD video and 52MP images for detailed inspection
- Large 8-inch IPS screen with vibrant display
- Versatile connectivity including HDMI and USB
Cons:- Setup can be complex for new users
- Heavy and less portable
- High cost may not suit casual users
Best for: Professional jewelers, watchmakers, and coin collectors needing precise, high-resolution imaging with auto-focus convenience.
Not ideal for: Students or casual hobbyists seeking a lightweight, budget-friendly device, as its complexity and cost are high.
- Magnification:2000X
- Camera Resolution:52MP
- Display:8-inch IPS screen
- Video Resolution:4K UHD
- Stand Height:10 inches
- Connectivity:HDMI, USB
Our verdict“This microscope is best suited for professionals demanding high-resolution, auto-focused imaging for detailed inspection tasks.”
TOMLOV DM9 7-Inch Digital Microscope with 1080P, 1200X Magnification, 12MP Camera, LCD Screen, PC Connectivity, 16GB SD Card
The TOMLOV DM9 offers a practical balance between affordability and performance, with a 7-inch rotatable LCD and a 1200X magnification range similar to higher-end models like the Elikliv EM4K-AF. Its 12MP camera and 1080P resolution provide clear images suitable for hobbyists and educational use. The device’s ergonomic design and PC connectivity make it accessible, but its image quality can vary depending on the distance and screen size, and the software compatibility details are limited. It’s an effective choice for those who need decent magnification without a hefty price tag.Pros:- High-resolution 12MP camera with 1080P video
- Rotatable 7-inch LCD for comfortable viewing
- Wide magnification up to 1200X
Cons:- Image quality can vary depending on setup
- Limited software compatibility details
- Magnification performance depends on screen distance
Best for: Hobbyists and students requiring a versatile, easy-to-use digital microscope for general observation and micro soldering.
Not ideal for: Professionals needing ultra-high resolution or auto-focus for critical inspections, as the image quality may not meet stringent standards.
- Screen Size:7 inches
- Camera Resolution:12MP
- Video Resolution:1080P
- Magnification Range:5X to 1200X
- Lighting:LED fill and gooseneck lights
- Storage:16GB SD card included
Our verdict“This microscope offers a solid, budget-friendly option for hobbyists seeking decent magnification and easy operation.”
Elikliv LCD Digital Coin Microscope 1000x with 8 LED Lights, 4.3-Inch Screen, Compatible with Windows/Mac
This Elikliv LCD Digital Coin Microscope excels in providing a portable yet detailed viewing experience, thanks to its 4.3-inch HD LCD screen and 720P imaging. Compared to the larger, more complex Professional Trinocular Stereo Zoom Microscope, it offers a simplified setup ideal for users needing mobility and quick inspections. The adjustable 8 LED lights ensure clear illumination for detailed views, making it suitable for inspecting electronics, jewelry, or coins in varied lighting conditions. However, its resolution is limited to HD, which might fall short for very fine semiconductor features, and the battery life restricts long outdoor sessions. Unlike the Elikliv Autofocus 4K Digital Microscope, it lacks high-resolution imaging and advanced features but compensates with portability and ease of use. This model makes the most sense for hobbyists or field inspectors who prioritize convenience over ultra-fine detail.
Pros:- Large 4.3-inch HD LCD screen provides clear, real-time viewing
- Portable with built-in rechargeable battery for outdoor or field use
- 8 adjustable LED lights optimize illumination for varied samples
- Connects to Windows/Mac for image sharing and analysis
Cons:- Limited 720P resolution may not reveal the finest semiconductor features
- Magnification up to 1000x can be inconsistent depending on screen size and distance
- Battery life of up to 3 hours may restrict extended sessions
Best for: Technicians or hobbyists who need a portable, easy-to-use digital microscope for inspecting jewelry, coins, or basic electronics on the go.
Not ideal for: Professional semiconductor inspectors requiring high-magnification, high-resolution imaging for tiny circuit features, as this model’s resolution and magnification are limited.
- Display:4.3-inch LCD
- Magnification:up to 1000x
- Lighting:8 adjustable LED lights
- Connectivity:Windows and Mac compatible
- Battery Life:up to 3 hours
- Included:Microphone, stand, USB cable
Our verdict“This model is well-suited for users seeking a portable, user-friendly digital microscope for general inspection tasks but falls short for high-precision semiconductor analysis.”
How We Picked
The products in this roundup were selected based on their optical performance, usability, build quality, and feature set tailored for semiconductor inspection. Priority was given to microscopes offering high magnification, excellent image clarity, and reliable illumination. We also considered digital connectivity options, such as HDMI or USB output, which are essential for modern inspection workflows. Portability, ease of setup, and durability were additional factors influencing the rankings. The final list aims to balance professional-grade features with affordability, helping buyers at different levels find a suitable option.| microscope for semiconductor inspection | Connectivity |
|---|---|
| 5" LCD Digital Soldering Micro | Plug & Play PC (Windows & Mac) |
| Andonstar AD246S-M 3 Lens 2160 | — |
| Professional Trinocular Stereo | — |
| Elikliv Autofocus 4K Digital M | HDMI, USB |
| TOMLOV DM9 7-Inch Digital Micr | — |
| Elikliv LCD Digital Coin Micro | Windows and Mac compatible |
Factors to Consider When Choosing Microscope For Semiconductor Inspection
Choosing the right microscope for semiconductor inspection involves understanding several key factors. Beyond basic magnification, consider how image clarity, lighting, and digital integration affect your workflow. The scope’s build quality and stability are vital for precise, consistent inspections. Additionally, evaluate whether you need features like variable zoom, digital output, or advanced lighting options, which can influence your overall experience and results. Being aware of common pitfalls, such as overspending on features you don’t need or selecting models with poor optical quality, can save you money and frustration.Magnification and Optical Quality
Magnification levels should match your inspection needs, but high magnification is only valuable if paired with high-quality optics. Look for scopes with high numerical apertures and good lens coatings, which improve clarity and reduce distortion. For semiconductor work, a range of 20X to 500X is typically sufficient, but for fine defect detection, higher magnifications with stable optical performance are preferable. Avoid models that promise extreme magnification without optical quality, as they often produce blurry images.
Lighting and Illumination
Proper lighting is essential for revealing tiny defects and surface details. LED ring lights and adjustable light intensity are standard, but some scopes offer more advanced options like adjustable angles or multiple light sources. Uniform, shadow-free illumination enhances image clarity and measurement accuracy. Overly bright or uneven lighting can cause glare or obscure details, so choosing a scope with easy-to-control lighting is a wise investment.
Digital Connectivity and Image Capture
For detailed analysis and documentation, digital microscopes with HDMI, USB, or Wi-Fi connectivity are increasingly important. These features allow real-time viewing on larger screens, quick image capture, and easy sharing. However, digital scopes tend to be more expensive and may require additional software or hardware setup. If your workflow relies heavily on digital records or remote collaboration, prioritize models with robust connectivity options.
Build Quality and Stability
A sturdy stand and high-quality construction reduce vibrations and ensure steady images during detailed examination. Look for scopes with adjustable stands, locking mechanisms, and durable materials. While cheaper models may be lightweight or flimsy, investing in a stable platform minimizes user fatigue and improves inspection accuracy, especially for prolonged sessions.
Ease of Use and Ergonomics
Intuitive controls, comfortable eyepieces, and adjustable viewing angles can significantly improve your inspection experience. Digital controls should be straightforward, with simple focus and zoom adjustments. Ergonomic design reduces strain during extended use, which is especially important for professional environments. Avoid overly complex setups that could slow down workflow or cause user frustration.
Frequently Asked Questions
Is higher magnification always better for semiconductor inspection?
Not necessarily. While higher magnification can reveal finer details, it often comes with a tradeoff in image clarity and stability. For most semiconductor inspections, a balanced magnification range that offers clear, detailed views without distortion is preferable. Excessive magnification can lead to shaky images or reduced field of view, which hampers comprehensive inspection. Ultimately, choosing a scope with the right optical quality at the appropriate magnification is more effective than simply opting for the highest possible zoom.
Should I prioritize digital connectivity over optical quality?
It depends on your workflow. Digital connectivity allows for easy image capturing, sharing, and analysis, which is essential for documentation and remote collaboration. However, digital scopes often compromise slightly on optical quality compared to traditional high-quality optical microscopes. If real-time visualization and digital archiving are critical, prioritize models with robust digital features. If the highest optical clarity is needed for manual inspection, a traditional optical scope might be better, possibly supplemented with a digital camera attachment.
What lighting options are best for detailed semiconductor inspection?
LED ring lights with adjustable brightness and angles are generally the most versatile, providing uniform illumination without heat buildup. Some scopes also offer adjustable side lights or multiple light sources to reduce glare and shadows. Consistent, flicker-free lighting enhances defect detection and measurement accuracy. Avoid models with fixed or poorly adjustable lights, as they can obscure surface features or cause eye strain during prolonged use.
Can I use a digital microscope for both inspection and detailed analysis?
Yes, many digital microscopes are designed to serve both purposes. Features like high-resolution cameras, large screens, and software for measurement and annotation make digital scopes suitable for precise analysis. However, ensure the digital scope offers sufficient magnification and optical clarity for your specific needs. For highly detailed defect analysis at the microscopic level, a combination of good optical quality and digital features will provide the best results.
What is the most common mistake when choosing a microscope for semiconductor work?
The most frequent error is prioritizing features like extreme magnification without considering optical quality and stability. Buyers often assume more zoom equals better inspection, but poor lenses, inadequate illumination, or flimsy stands negate the benefits of high magnification. Balancing optical clarity, lighting, and build quality is essential to achieve precise, reliable inspections. Investing in a slightly lower magnification with superior optics and stability typically yields better results than chasing unrealistic zoom levels.
Conclusion
For professional users needing the highest accuracy and image quality, the Professional Trinocular Stereo Zoom Microscope offers unmatched optical performance and stability. Hobbyists or those on a tighter budget will find the Elikliv Autofocus 4K Digital Microscope provides digital convenience and high-resolution imaging at a reasonable price. Beginners or casual users should consider simpler, more user-friendly models like the Elikliv LCD Digital Coin Microscope for straightforward inspection without complex setup. For those with advanced digital workflows, investing in models with HDMI or USB output ensures seamless integration into modern inspection processes.
