If you’re looking for the 15 best mixed signal oscilloscopes for 2026, you’ll find models ranging from compact handhelds like FNIRSI 2C53T to high-performance bench units like Rigol’s MSO8204 and MSO5354 with up to 2 GHz bandwidth, fast sampling, deep memory, and digital channels. Many offer upgrade options, touchscreen controls, and port flexibility to suit professionals, industry, and hobbyists. Stick with me to uncover the top choices and what makes them stand out.
Key Takeaways
- Top models feature high bandwidth (up to 2 GHz), fast sampling rates (up to 10 GSa/s), and deep memory (up to 200 Mpts).
- Many offer digital channels (16+), digital decoding, and integrated spectrum analysis for versatile signal testing.
- Portable handheld options with touchscreen interfaces and wireless connectivity enhance field usability.
- Upgradable features like bandwidth, digital channels, and memory ensure long-term adaptability.
- Leading brands include Rigol, Siglent, and FNIRSI, offering a balance of performance, affordability, and expandability.
| Rigol MSO5104 100MHz Mixed Signal Oscilloscope |  | Versatile High-Performance | Bandwidth: 100 MHz (selectable up to 350 MHz) | Number of Channels: 4 analog + 16 digital | Sampling Rate: Up to 8 GSa/s | VIEW LATEST PRICE | See Our Full Breakdown |
| RIGOL MSO5074 70 MHz Mixed Signal Oscilloscope |  | Budget-Friendly Choice | Bandwidth: 70 MHz (selectable up to 350 MHz) | Number of Channels: 4 analog + 16 digital | Sampling Rate: Up to 8 GSa/s | VIEW LATEST PRICE | See Our Full Breakdown |
| Siglent SDS814X HD -12bits Mixed Signal Oscilloscope (4 Channel / 100 MHz) |  | High-Resolution Power | Bandwidth: 100 MHz | Number of Channels: 4 analog + 16 digital (optional) | Sampling Rate: 2 GSa/s | VIEW LATEST PRICE | See Our Full Breakdown |
| FNIRSI 2C53T Handheld Oscilloscope & Multimeter |  | All-in-One Flexibility | Bandwidth: 50 MHz | Number of Channels: 2 analog + 2 digital (optional) | Sampling Rate: 250 MSa/s | VIEW LATEST PRICE | See Our Full Breakdown |
| RIGOL MSO5074 70 MHz Mixed Signal Oscilloscope | | Upgraded Signal Clarity | Bandwidth: 70 MHz (selectable up to 350 MHz) | Number of Channels: 4 analog + 16 digital | Sampling Rate: Up to 8 GSa/s | VIEW LATEST PRICE | See Our Full Breakdown |
| RIGOL MSO5074 70 MHz Mixed Signal Oscilloscope | | Compact & Reliable | Bandwidth: 70 MHz | Number of Channels: 4 analog + 16 digital | Sampling Rate: Up to 8 GSa/s | VIEW LATEST PRICE | See Our Full Breakdown |
| Rigol MSO8204 2GHz Oscilloscope with 4 Channels |  | Advanced Testing Capabilities | Bandwidth: 2 GHz | Number of Channels: 4 analog + 16 digital | Sampling Rate: Up to 10 GSa/s | VIEW LATEST PRICE | See Our Full Breakdown |
| FNIRSI DPOS350P 4-in-1 Handheld Oscilloscope & Spectrum Analyzer |  | Portable Versatility | Bandwidth: 350 MHz | Number of Channels: 2 channels + spectrum generator (digital channels not specified) | Sampling Rate: 1 GSa/s | VIEW LATEST PRICE | See Our Full Breakdown |
| FNIRSI 1014D Oscilloscope & Signal Generator |  | Precision Measurement | Bandwidth: 100 MHz | Number of Channels: 2 channels + DDS generator (digital channels not specified) | Sampling Rate: 1 GSa/s | VIEW LATEST PRICE | See Our Full Breakdown |
| Rigol DS1104Z-S Plus Digital Oscilloscope (100MHz) |  | Feature-Rich Powerhouse | Bandwidth: 100 MHz | Number of Channels: 4 channels + 16 digital | Sampling Rate: 1 GSa/s | VIEW LATEST PRICE | See Our Full Breakdown |
| RIGOL MHO934 350MHz Digital Oscilloscope |  | High-Resolution Detail | Bandwidth: 350 MHz | Number of Channels: 4 channels + 16 digital | Sampling Rate: 4 GSa/s | VIEW LATEST PRICE | See Our Full Breakdown |
| Hantek DSO2D15 Digital Storage Oscilloscope (150MHz) |  | Cost-Effective Solution | Bandwidth: 150 MHz | Number of Channels: 2 channels + digital protocol | Sampling Rate: 1 GSa/s | VIEW LATEST PRICE | See Our Full Breakdown |
| Siglent SDS1104X HD – Mixed Signal Oscilloscope (4 Channel / 100 MHz) |  | Comprehensive Functionality | Bandwidth: 100 MHz | Number of Channels: 4 analog + 16 digital (optional) | Sampling Rate: 12-bit ADC, sampling rate not specified | VIEW LATEST PRICE | See Our Full Breakdown |
| Siglent SDS814X HD -12bits Mixed Signal Oscilloscope (4 Channel / 100 MHz) | | User-Friendly Design | Bandwidth: 100 MHz | Number of Channels: 4 analog + 16 digital (optional) | Sampling Rate: 2 GSa/s | VIEW LATEST PRICE | See Our Full Breakdown |
| RIGOL MSO5354 350 MHz Mixed Signal Oscilloscope |  | High-Speed Accuracy | Bandwidth: 350 MHz | Number of Channels: 4 analog + 16 digital | Sampling Rate: Up to 8 GSa/s | VIEW LATEST PRICE | See Our Full Breakdown |
More Details on Our Top Picks

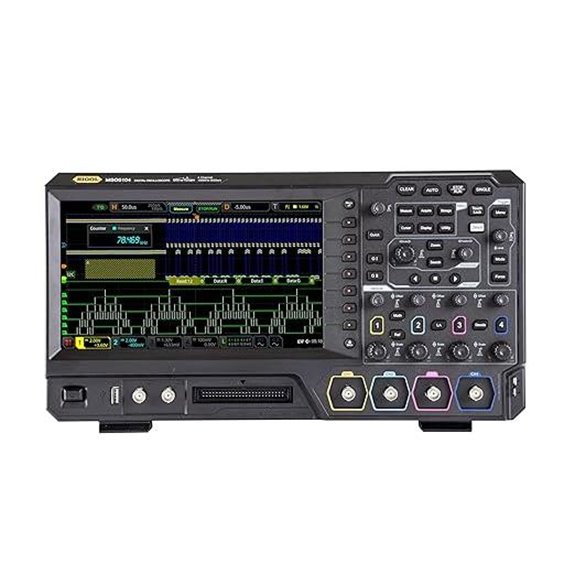

Rigol MSO5104 100MHz Mixed Signal Oscilloscope
If you’re looking for a versatile mixed signal oscilloscope that balances affordability with solid performance, the Rigol MSO5104 100MHz is an excellent choice. It features four analog channels and UltraVision II high-speed technology, ensuring fast, accurate waveform capture. You can select bandwidths up to 350 MHz and upgrade support for additional channels, making it adaptable to various testing needs. With a 8 GSa/s sampling rate and optional 200 Mpts memory depth, it provides detailed analysis. Its high waveform capture rate of over 500,000 waveforms per second guarantees quick, reliable data acquisition. Overall, it’s a flexible, powerful tool for extensive signal analysis.
- Bandwidth:100 MHz (selectable up to 350 MHz)
- Number of Channels:4 analog + 16 digital
- Sampling Rate:Up to 8 GSa/s
- Memory Depth:Up to 200 Mpts (optional)
- Waveform Capture Rate:>500,000 waveforms/sec
- Digital Channels:16 digital channels
- Additional Feature:Supports bandwidth upgrade flexibility
- Additional Feature:16 digital channels with LA probe
- Additional Feature:Up to 8 GSa/s sampling rate

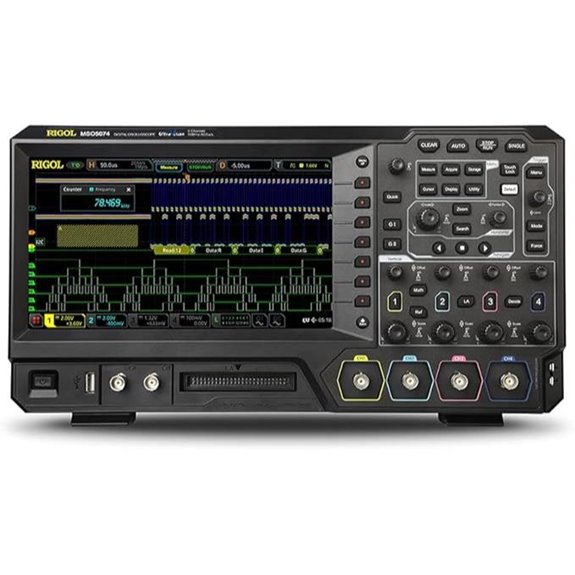

RIGOL MSO5074 70 MHz Mixed Signal Oscilloscope
The RIGOL MSO5074 70 MHz Mixed Signal Oscilloscope stands out as an excellent choice for engineers and technicians who need reliable, high-speed signal analysis on a budget. Its UltraVision II technology guarantees enhanced performance, capturing more waveforms at over 500,000 per second. With support for bandwidth upgrades up to 350 MHz and optional four channels, it offers flexible testing options. The scope’s 8 GSa/s sampling rate and up to 200 Mpts memory depth enable detailed signal analysis. Additionally, the standard 16 digital channels provide an all-encompassing view of mixed signals, making it a versatile tool for various testing applications.
- Bandwidth:70 MHz (selectable up to 350 MHz)
- Number of Channels:4 analog + 16 digital
- Sampling Rate:Up to 8 GSa/s
- Memory Depth:Up to 200 Mpts (optional)
- Waveform Capture Rate:>500,000 waveforms/sec
- Digital Channels:16 digital channels
- Additional Feature:Supports bandwidth upgrades to 2/4 channels
- Additional Feature:16 digital channels (LA probe required)
- Additional Feature:Exceeds 500,000 waveforms/sec capture rate

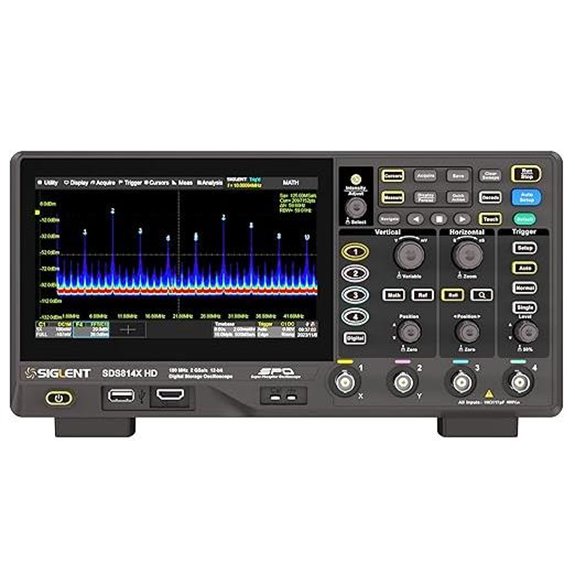

Siglent SDS814X HD -12bits Mixed Signal Oscilloscope (4 Channel / 100 MHz)
The Siglent SDS814X HD stands out for those needing high-resolution mixed signal analysis, thanks to its 12-bit analog/digital conversion that delivers detailed waveform clarity. With a 100 MHz bandwidth and 4 analog channels, it handles complex signals effectively. Its 16 digital channels, available with optional accessories, enhance digital signal examination. The scope offers a 2 GSa/s sampling rate and a remarkable 50 Mpts memory depth, ensuring precise data capture. Its 7-inch touch screen simplifies control, while waveform capture rates reach up to 80,000 wfm/s in normal mode and 500,000 wfm/s in sequence mode. This makes it a versatile tool for detailed mixed signal testing.
- Bandwidth:100 MHz
- Number of Channels:4 analog + 16 digital (optional)
- Sampling Rate:2 GSa/s
- Memory Depth:50 Mpts
- Waveform Capture Rate:Up to 80,000 wfm/sec
- Digital Channels:16 digital channels (optional)
- Additional Feature:7-inch touch screen interface
- Additional Feature:12-bit high-resolution conversion
- Additional Feature:Waveform capture up to 80,000 wfm/s

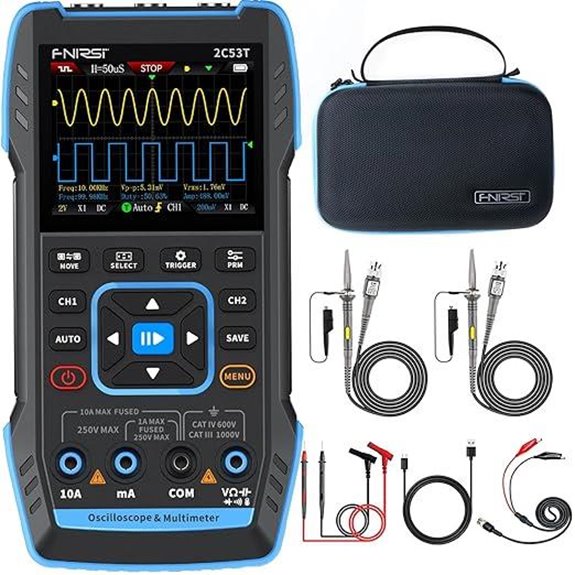

FNIRSI 2C53T Handheld Oscilloscope & Multimeter
Designed for professionals, educators, and hobbyists alike, the FNIRSI 2C53T Handheld Oscilloscope & Multimeter stands out with its versatile combination of functions and user-friendly features. It offers a 50 MHz bandwidth, 250 MSa/s sampling rate, and 2 channels, making it suitable for a wide range of measurements. The device integrates oscilloscope, multimeter, and signal generator functionalities, with upgrades like expanded measurement range, math operations, cursor measurement, persistence, and XY mode. Its compact design, 3000 mAh battery, and data transfer options make it ideal for fieldwork and troubleshooting, providing reliable, multi-purpose testing in a portable package.
- Bandwidth:50 MHz
- Number of Channels:2 analog + 2 digital (optional)
- Sampling Rate:250 MSa/s
- Memory Depth:1 Kpts
- Waveform Capture Rate:50,000 waveforms/sec
- Digital Channels:2 digital channels
- Additional Feature:Built-in high-voltage protection
- Additional Feature:Supports waveform image storage/export
- Additional Feature:13 waveform types and math functions
RIGOL MSO5074 70 MHz Mixed Signal Oscilloscope
If you’re looking for a versatile mixed signal oscilloscope suitable for detailed signal analysis, the RIGOL MSO5074 70MHz model stands out with its UltraVision II high-speed technology. It offers adjustable analog bandwidth options from 70 MHz up to 350 MHz and supports bandwidth upgrades to 2 or 4 channels, making it adaptable for various testing needs. With a real-time sampling rate of up to 8 GSa/s and optional 200 Mpts memory, it captures signals accurately. Its high waveform capture rate exceeds 500,000 waveforms per second, ensuring you won’t miss critical details. Designed for precision, it simplifies complex analysis tasks across multiple channels.
- Bandwidth:70 MHz (selectable up to 350 MHz)
- Number of Channels:4 analog + 16 digital
- Sampling Rate:Up to 8 GSa/s
- Memory Depth:Up to 200 Mpts (optional)
- Waveform Capture Rate:>500,000 waveforms/sec
- Digital Channels:16 digital channels
- Additional Feature:Supports bandwidth upgrade options
- Additional Feature:16 digital channels (LA probe)
- Additional Feature:Up to 8 GSa/s sampling rate
RIGOL MSO5074 70 MHz Mixed Signal Oscilloscope
For professionals needing reliable mixed-signal analysis, the Rigol MSO5074 stands out with its four channels and 70 MHz bandwidth, making it a strong contender in the 15 best oscilloscopes for 2026. It offers up to 8 GSa/s real-time sampling and 100 Mpts standard memory, with an optional upgrade to 200 Mpts for detailed waveform capture. The device includes 16 digital channels, requiring an optional logic probe, ideal for mixed-signal testing. Its high waveform capture rate exceeding 500,000 waveforms per second guarantees quick, accurate data acquisition. Designed for versatility, it combines speed, deep memory, and multiple channels to meet diverse measurement needs effectively.
- Bandwidth:70 MHz
- Number of Channels:4 analog + 16 digital
- Sampling Rate:Up to 8 GSa/s
- Memory Depth:100 Mpts (standard)
- Waveform Capture Rate:>500,000 waveforms/sec
- Digital Channels:16 digital channels
- Additional Feature:Up to 200 Mpts memory (upgrade)
- Additional Feature:16 digital channels (PLA2216 needed)
- Additional Feature:High waveform capture rate
Rigol MSO8204 2GHz Oscilloscope with 4 Channels
The Rigol MSO8204 2GHz Oscilloscope stands out with its impressive 2 GHz bandwidth and four analog channels, making it an excellent choice for engineers and technicians tackling high-frequency signal analysis. Its sampling rate reaches up to 10 GSa/s, ensuring precise waveform capture, while a 500 Mpts memory depth allows extensive data recording. With over 600,000 waveforms per second, you get real-time insight into signals. It integrates seven instruments, including a spectrum analyzer and logic analyzer, and offers advanced measurement features like FFT, jitter, and power analysis. The 10.1-inch touch screen provides intuitive control, and multiple connectivity options enable remote operation and seamless integration.
- Bandwidth:2 GHz
- Number of Channels:4 analog + 16 digital
- Sampling Rate:Up to 10 GSa/s
- Memory Depth:Up to 500 Mpts (standard)
- Waveform Capture Rate:Over 600,000 waveforms/sec
- Digital Channels:16 digital channels
- Additional Feature:Combines 7 instruments in one
- Additional Feature:10.1-inch capacitive touchscreen
- Additional Feature:Supports remote web control

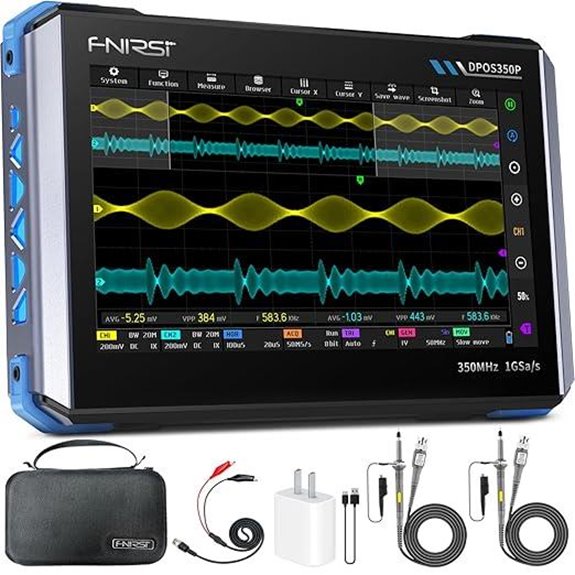

FNIRSI DPOS350P 4-in-1 Handheld Oscilloscope & Spectrum Analyzer
The FNIRSI DPOS350P stands out as a versatile tool for engineers and technicians needing a portable solution that combines multiple measurement functions. This 4-in-1 device integrates an oscilloscope, spectrum analyzer, frequency response analyzer, and DDS signal generator in a compact, handheld design. It features a 7-inch touchscreen, a 350 MHz bandwidth, and a 1 GSa/s sampling rate, enabling detailed signal analysis. With its built-in 8000 mAh battery, it’s ideal for field work. The spectrum analysis and frequency response functions support EMI testing and filter tuning, while the DDS generator offers versatile waveform output, making this device a powerful all-in-one testing solution.
- Bandwidth:350 MHz
- Number of Channels:2 channels + spectrum generator (digital channels not specified)
- Sampling Rate:1 GSa/s
- Memory Depth:47K points
- Waveform Capture Rate:50,000 waveforms/sec
- Digital Channels:Digital channels not specified
- Additional Feature:Spectrum analysis up to 350 MHz
- Additional Feature:DDS signal generator up to 50 MHz
- Additional Feature:Stores 500 waveforms and 90 screenshots
FNIRSI 1014D Oscilloscope & Signal Generator
If you’re seeking a versatile instrument that combines both digital oscilloscope and signal generator functions, the FNIRSI 1014D stands out with its integrated design and user-friendly interface. It features 2 channels, 100 MHz bandwidth, and a 1 GSa/s sampling rate, ensuring precise waveform capture. The device includes a built-in 1GB storage and a responsive 7-inch LCD display, making data analysis straightforward. With a DDS signal generator supporting 14 standard signals and custom waveforms, it’s perfect for testing and troubleshooting. Trigger options and cursor measurements simplify observation, while FFT and Lissajous displays provide deeper insight into signal behavior.
- Bandwidth:100 MHz
- Number of Channels:2 channels + DDS generator (digital channels not specified)
- Sampling Rate:1 GSa/s
- Memory Depth:1 GByte (approx 1 Gpts)
- Waveform Capture Rate:Up to 80,000 wfm/sec
- Digital Channels:16 digital channels (requires optional logic probe)
- Additional Feature:Adaptive trigger level settings
- Additional Feature:7-inch LCD display
- Additional Feature:Supports FFT and Lissajous display
Rigol DS1104Z-S Plus Digital Oscilloscope (100MHz)
Looking for a versatile oscilloscope that combines solid performance with advanced features? The Rigol DS1104Z-S Plus is a great choice, offering 100 MHz bandwidth and 4 channels to handle complex signals. Its 1 GSa/s sampling rate and 24 Mpts memory depth ensure precise waveform capture and analysis. The built-in 25 MHz waveform generator adds functionality, while the 16 digital channels and optional MSO upgrade expand digital testing capabilities. Thanks to UltraVision technology, it delivers deeper memory and faster waveform capture rates, considerably improving measurement efficiency. Overall, this scope balances power and versatility, making it ideal for both professional and hobbyist applications.
- Bandwidth:100 MHz
- Number of Channels:4 channels + 16 digital
- Sampling Rate:1 GSa/s
- Memory Depth:24 Mpts
- Waveform Capture Rate:Up to 30,000 waveforms/sec
- Digital Channels:16 digital channels
- Additional Feature:Built-in 25 MHz waveform generator
- Additional Feature:Deeper 24 Mpts memory
- Additional Feature:Up to 30,000 waveforms/sec capture

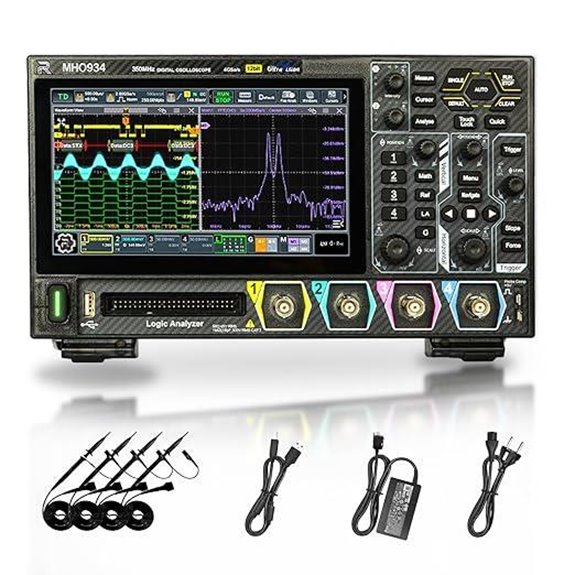

RIGOL MHO934 350MHz Digital Oscilloscope
Engineered for professionals demanding high-speed signal analysis, the RIGOL MHO934 350MHz Digital Oscilloscope stands out with its impressive 350MHz bandwidth and 4GSa/s sample rate. It offers a standard 100Mpts memory depth, expandable to 500Mpts, allowing for detailed long-duration captures. Its true 12-bit ADC provides 4096 vertical levels, delivering 16 times higher resolution than typical 8-bit scopes. This all-in-one device combines four channels, a logic analyzer, waveform generator, protocol decoding, and a digital voltmeter. The 7-inch HD touchscreen, Wi-Fi, Bluetooth, and versatile connectivity options make it an excellent, portable choice for complex, high-speed signal testing and analysis.
- Bandwidth:350 MHz
- Number of Channels:4 channels + 16 digital
- Sampling Rate:4 GSa/s
- Memory Depth:Up to 500 Mpts (optional)
- Waveform Capture Rate:Over 600,000 waveforms/sec
- Digital Channels:16 digital channels
- Additional Feature:4096 vertical quantization levels
- Additional Feature:Android 7-inch touchscreen
- Additional Feature:Built-in Wi-Fi and Bluetooth
Hantek DSO2D15 Digital Storage Oscilloscope (150MHz)
The Hantek DSO2D15 Digital Storage Oscilloscope stands out as an excellent choice for professionals needing dependable performance at an affordable price. With a 150MHz bandwidth, dual channels, and a 1GSa/s sampling rate, it delivers accurate measurements for various applications. Its 8M memory depth guarantees detailed waveform capturing, while the built-in waveform generator adds versatility. Supporting multiple trigger modes and serial protocol decoding, it’s perfect for communication, aerospace, and research tasks. Despite its compact weight of just over six pounds, it offers extensive testing capabilities, making it a cost-effective, essential tool for both lab and field use.
- Bandwidth:150 MHz
- Number of Channels:2 channels + digital protocol
- Sampling Rate:1 GSa/s
- Memory Depth:8 Mpts
- Waveform Capture Rate:14 trigger modes (implies versatile capture)
- Digital Channels:Serial protocol triggers, digital protocol decoding
- Additional Feature:Supports serial protocol decode
- Additional Feature:8M memory depth
- Additional Feature:Cost-effective for labs and field

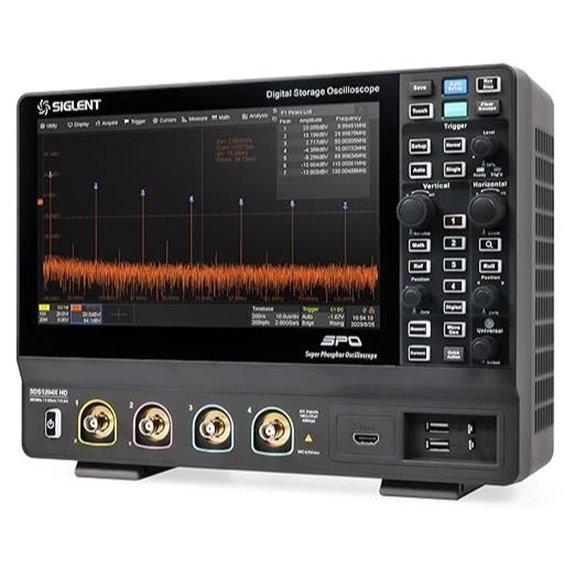

Siglent SDS1104X HD – Mixed Signal Oscilloscope (4 Channel / 100 MHz)
If you’re seeking a versatile mixed signal oscilloscope that balances performance and affordability, the Siglent SDS1104X HD stands out with its 4 analog channels and 100 MHz bandwidth. It includes 16 digital channels (with optional accessories), making it ideal for complex signal analysis. Its 12-bit converter guarantees high-resolution waveform capture, reaching up to 120,000 frames per second in normal mode and 500,000 in sequence mode. Additionally, it features a 25 MHz waveform generator (with optional upgrade), compatible with various Siglent generators. This scope delivers impressive performance for its price, making it a compelling choice for many testing applications.
- Bandwidth:100 MHz
- Number of Channels:4 analog + 16 digital (optional)
- Sampling Rate:12-bit ADC, sampling rate not specified
- Memory Depth:50 Mpts
- Waveform Capture Rate:Up to 500,000 wfm/sec
- Digital Channels:16 digital channels
- Additional Feature:Compatible with optional waveform generator
- Additional Feature:12-bit analog/digital converter
- Additional Feature:16 digital channels (optional)
Siglent SDS814X HD -12bits Mixed Signal Oscilloscope (4 Channel / 100 MHz)
For professionals seeking a versatile mixed signal oscilloscope, the Siglent SDS814X HD stands out with its 12-bit high-resolution sampling and 100 MHz bandwidth. It features four analog channels and can display digital signals via optional modules, making it ideal for complex testing. The 2 GSa/s sampling rate guarantees detailed waveform capture, while the waveform capture rate reaches up to 80,000 per second in normal mode. Its 50 Mpts memory depth allows for extensive data analysis. The 7-inch touch screen interface simplifies operation, and the high-resolution performance makes it perfect for precise measurements in demanding applications.
- Bandwidth:100 MHz
- Number of Channels:4 analog + 16 digital (optional)
- Sampling Rate:2 GSa/s
- Memory Depth:50 Mpts
- Waveform Capture Rate:Up to 80,000 wfm/sec
- Digital Channels:16 digital channels
- Additional Feature:7-inch touch screen interface
- Additional Feature:50 Mpts memory depth
- Additional Feature:Combines analog and digital signals

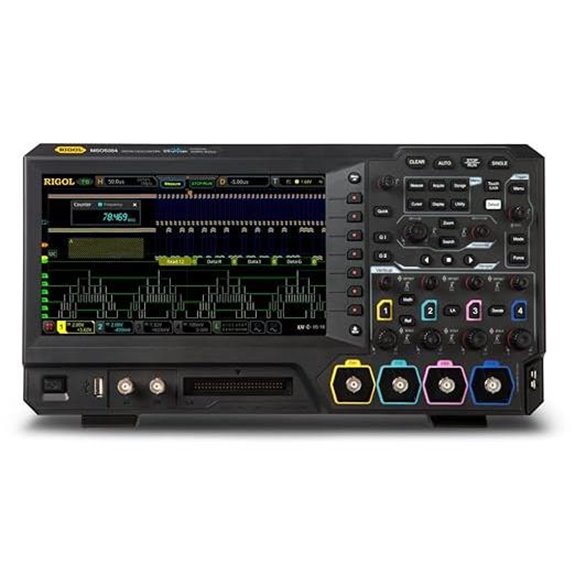

RIGOL MSO5354 350 MHz Mixed Signal Oscilloscope
Looking for a mixed signal oscilloscope that delivers high-speed data capture and versatile analysis? The RIGOL MSO5354 offers 350 MHz of bandwidth with upgrade options up to 4 channels, making it adaptable to various testing needs. It features UltraVision II technology, ensuring fast waveform updates and clear signals. With up to 8 GSa/s sampling and 200 Mpts memory, it captures detailed signals efficiently. Its high waveform capture rate over 500,000 waveforms per second guarantees no events are missed. Supporting digital channels and bandwidth upgrades, this scope is designed for all-encompassing, flexible signal analysis in demanding environments.
- Bandwidth:350 MHz
- Number of Channels:4 analog + 16 digital
- Sampling Rate:Up to 8 GSa/s
- Memory Depth:Up to 200 Mpts (optional)
- Waveform Capture Rate:>500,000 waveforms/sec
- Digital Channels:16 digital channels
- Additional Feature:Supports bandwidth upgrade (2/4 channels)
- Additional Feature:Up to 8 GSa/s sampling rate
- Additional Feature:Optional high-speed data capture
Factors to Consider When Choosing Mixed Signal Oscilloscopes
When selecting a mixed signal oscilloscope, I focus on key factors like bandwidth compatibility to guarantee it handles your signals accurately. I also consider the number of channels and sample rate, as these directly affect measurement precision. Additionally, think about memory capacity and the mix of digital and analog features to match your specific testing needs.
Bandwidth Compatibility Needs
Selecting the right bandwidth for a mixed signal oscilloscope is essential to accurately capturing and analyzing your signals. If the scope’s bandwidth is too low, high-frequency components will be attenuated, leading to inaccurate measurements. To prevent this, choose a bandwidth that exceeds the highest frequency you need to evaluate. For most digital and analog signals below 50 MHz, a 100 MHz scope is sufficient. However, it’s wise to contemplate future needs; opting for a scope with higher bandwidth provides scalability for testing higher frequency signals later. Check if bandwidth upgrade options are available, ensuring flexibility as your testing requirements evolve. Remember, for precise digital signal analysis, the scope’s bandwidth should be at least five times higher than the highest digital signal frequency.
Channel Quantity Requirements
Choosing the right number of channels for a mixed signal oscilloscope depends on the complexity of your signals and the system you’re testing. Most applications benefit from at least four channels, allowing simultaneous analysis of multiple analog and digital signals. Keep in mind that digital channels often need additional probes or accessories, which can affect the total available channels. Some models allow channel upgrades through hardware modifications or extra modules, offering flexibility as your testing needs evolve. It’s wise to contemplate future requirements, ensuring your oscilloscope can expand if necessary. Balancing current needs with potential growth helps you select a device that remains useful over time, avoiding unnecessary limitations or costly upgrades down the line.
Sample Rate Significance
A high sample rate is indispensable because it determines how accurately an oscilloscope can depict fast-changing signals. With a higher sample rate, I can capture more detailed and precise representations of high-frequency waveforms, which is critical for accurate analysis. I recommend at least 1 GSa/s for effectively analyzing high-frequency signals, as lower rates risk missing critical details. Insufficient sample rates can cause aliasing, making signals appear as lower frequencies and leading to measurement errors. The Nyquist theorem reminds me that the sample rate should be at least twice the highest frequency component to reliably reconstruct the signal. For complex digital signals, a high sample rate ensures precise timing and digital pulse integrity, making it essential for accurate measurements and troubleshooting.
Memory Capacity Importance
Since detailed waveform analysis often requires capturing complex signals over extended periods, memory capacity plays a vital role in a mixed signal oscilloscope’s effectiveness. A larger memory allows me to record longer durations and analyze high-frequency events without losing resolution. If the memory is limited, I risk collecting fewer data points, which can compromise the accuracy of my measurements and troubleshooting. Deep memory also enhances my ability to perform advanced tests like FFT, jitter analysis, and eye diagrams, providing a clearer understanding of signal integrity. Upgradable or higher-capacity memory options give me flexibility for future testing needs, ensuring I can handle more complex or longer recordings as requirements evolve. Overall, memory capacity directly impacts my scope’s performance in detailed, high-precision analysis.
Digital/Analog Mixes
When evaluating mixed signal oscilloscopes, I focus on their ability to seamlessly analyze both analog and digital signals simultaneously. This integration is vital for diagnosing complex systems where signals interact across domains. I look for models with 8 to 16 digital channels, understanding that additional probes or modules might be necessary for decoding digital signals. The analog bandwidth, ranging from 70 MHz to over 2 GHz, determines how well the scope captures high-frequency signals without distortion. High sampling rates, like 8 GSa/s, are essential for accurate timing and capturing fast transients. Additionally, deep memory depth—up to 200 Mpts—and high waveform capture rates improve detail, efficiency, and reliability during analysis. These factors guarantee I get thorough insights into mixed signal behaviors.
Upgrade Flexibility
Upgrade flexibility is essential because it allows me to adapt my oscilloscope to changing testing needs without investing in a new device. I look for models that enable bandwidth upgrades from 70 MHz to 350 MHz, so I can analyze higher frequency signals as needed. Expanding digital channels from 16 to 32 or more through optional modules enhances my digital signal analysis without buying a new scope. Memory depth upgrades, from 50 Mpts to 200 Mpts, let me capture longer waveforms and perform detailed analysis. This flexibility ensures my oscilloscope remains useful over time, saving costs and extending its relevance. Choosing a device with robust upgrade options makes it a more cost-effective investment and prepares me for future testing challenges.
Frequently Asked Questions
What Are the Key Differences Between Analog and Digital Channels?
Analog channels capture continuous signals, allowing me to see real-world waveforms like voltage changes over time. Digital channels, however, detect discrete signals—on or off states—making them ideal for digital circuits and logic analysis. The main difference is that analog provides detailed, smooth data, while digital offers precise, binary information. I prefer using both in mixed signal oscilloscopes to get a complete picture of complex electronic behavior.
How Does Bandwidth Impact Measurement Accuracy?
Bandwidth directly impacts measurement accuracy because it determines the highest frequency the oscilloscope can accurately capture. If the bandwidth is too low, signals with higher frequencies will be distorted or attenuated, leading to inaccurate readings. I always guarantee the oscilloscope’s bandwidth is at least five times higher than the signal’s frequency I’m testing. This helps me get clear, precise measurements and avoid missing critical signal details.
Are Portable Oscilloscopes Suitable for Professional Lab Use?
Yes, portable oscilloscopes can be suitable for professional lab use, especially when flexibility and quick diagnostics are needed. I find them particularly useful for on-site troubleshooting and fieldwork. However, I always guarantee they meet the required bandwidth, sample rate, and feature set for precise measurements. Modern portable scopes offer impressive performance, so I consider them a valuable addition to a professional lab, not a complete replacement.
What Maintenance Is Required for Long-Term Reliability?
Oh, the thrill of keeping your oscilloscope in tip-top shape! I regularly check calibration, keep it dust-free, and avoid sudden temperature swings—because, of course, a temperamental instrument is no fun. I also update firmware and inspect probes for wear. Trust me, a little love and attention go a long way in ensuring your scope performs reliably over the long haul, making your measurements accurate and stress-free.
How Do Advanced Triggering Features Improve Troubleshooting?
Advanced triggering features let me pinpoint specific signals or anomalies quickly, making troubleshooting much faster. They allow me to set precise conditions, such as edge, pulse width, or pattern, so I can capture elusive issues that might otherwise go unnoticed. This targeted approach helps me analyze complex circuits more effectively, reducing downtime and ensuring accurate diagnostics. Overall, these features streamline my workflow and improve my confidence in identifying real problems.
Conclusion
Choosing the right mixed signal oscilloscope depends on your specific needs, but the options listed here truly cover a range of performance levels. Did you know that the global oscilloscope market is projected to reach over $2.8 billion by 2026? This growth highlights how essential these tools are for engineers and technicians alike. No matter your budget or application, there’s a premium scope out there for you—making your testing and troubleshooting more efficient than ever.
