Semiconductor parameter analyzers are essential tools for testing and characterizing semiconductors with precision. The best models balance performance, ease of use, and versatility, but choosing the right one depends on your specific requirements. The Peak Atlas DCA75 Pro stands out as the overall top pick thanks to its comprehensive testing features, while the Velleman DCA55 offers excellent value for entry-level users. The iDili Multifunctional Analyzer provides a broad test scope for complex components, but it comes with a steeper learning curve. Continue reading for a detailed comparison to help you find the perfect fit for your testing needs.
Key Takeaways
- The best overall options combine broad testing capabilities with user-friendly interfaces.
- Price often correlates with feature set, but some budget models still deliver surprising accuracy.
- Advanced users should prioritize analyzers that support complex measurements and high-frequency testing.
- Ease of use and setup time vary significantly, impacting productivity in fast-paced environments.
- Compatibility with existing test setups and software can be a decisive factor for professional workflows.
| Peak Atlas DCA75 Pro Semiconductor Tester, Light Blue |  | Best Overall for Versatile, Portable Testing | Weight: Lightweight, handheld | Testing Type: Basic semiconductor parameters | Power Source: Battery operated | VIEW ON AMAZON | See Our Full Breakdown |
| Velleman DCA55 Semiconductor Analyzer |  | Best Value for Automated Component Identification | Short Circuit Peak Current: -5.5 mA to 5.5 mA | Peak Voltage: -5.1 V to 5.1 V | VIEW ON AMAZON | See Our Full Breakdown | |
| iDili Multifunctional Digital Transistor Analyzer/Tester |  | Best for Versatile Component Testing with High-Voltage Capability | High Voltage Testing: 1000V reverse voltage | Measurement Types: Diodes, transistors, SCR, FET | Power Source: 1.5V AAA batteries (not included) | VIEW ON AMAZON | See Our Full Breakdown |
| Transistor Curve Tracer & Semiconductor Parameter Analyzer |  | Best for Advanced Parameter Measurement and Data Storage | Measurement Range: 10μA/div to 5A/div | Peak Current: 50A | Display: 640×480 TFT color LCD | VIEW ON AMAZON | See Our Full Breakdown |
| C-V Analyzer Semiconductor Parameter Testing System, 1kHz-2MHz |  | Best for Comprehensive Multichannel Parameter Testing | Frequency Range: 1kHz-2MHz | Channels: 2 | Display: 10.1-inch touchscreen | VIEW ON AMAZON | See Our Full Breakdown |
| Upgraded Semiconductor Tester Compatible with DCA55 Analyzer |  | Best for Automated Component Screening and Maintenance | Component Detection: 10+ types including diodes, LEDs, BJTs, FETs, thyristors | Operation: Fully automatic, auto pinout | Short-Circuit Protection: Yes, current limited to 5.5mA | VIEW ON AMAZON | See Our Full Breakdown |
More Details on Our Top Picks
Peak Atlas DCA75 Pro Semiconductor Tester, Light Blue
The Peak Atlas DCA75 Pro earns its place as the best overall due to its combination of portability and reliable testing performance. Unlike bulkier professional analyzers, this lightweight device suits both technicians and hobbyists who need quick, accurate results on the go. It excels in basic semiconductor testing, but the lack of detailed specifications makes it less ideal for those requiring comprehensive analysis or advanced characterization. Its compact design makes it an easy addition to any toolkit, yet it sacrifices some depth of functionality found in larger, more sophisticated analyzers.
Pros:- Accurate semiconductor testing for quick diagnostics
- Portable and lightweight for field use
- Suitable for both professional and hobbyist applications
Cons:- Lacks detailed specifications for advanced analysis
- Limited to basic testing functions
Best for: Electronics hobbyists and field technicians seeking reliable, portable semiconductor testing
Not ideal for: Advanced R&D labs needing in-depth, detailed parameter analysis or complex measurement capabilities
- Weight:Lightweight, handheld
- Testing Type:Basic semiconductor parameters
- Power Source:Battery operated
Our verdict“This device is ideal for users who prioritize portability and straightforward testing over detailed analysis.”
Velleman DCA55 Semiconductor Analyzer
The Velleman DCA55 stands out for automating the identification of components and measuring multiple semiconductor parameters, making it highly versatile for repair shops and development labs. Compared with the Peak Atlas DCA75 Pro, it offers more detailed testing of specific parameters like gain, leakage, and threshold voltages, though it offers limited insights into supported component types. Its automation reduces testing time and user error, but the lack of extensive supported component details and absence of pricing info may limit its appeal for budget-conscious buyers seeking comprehensive coverage.
Pros:- Automates component identification and testing
- Measures multiple critical parameters for semiconductors
- Useful for troubleshooting and development
Cons:- Limited information on supported component types
- No clear pricing or user ratings provided
Best for: Electronics repair technicians and development engineers needing automated, multi-parameter testing
Not ideal for: Beginners or hobbyists requiring simple, quick checks without detailed parameter analysis
- Short Circuit Peak Current:-5.5 mA to 5.5 mA
- Peak Voltage:-5.1 V to 5.1 V
Our verdict“This analyzer suits professionals who want automated, multi-parameter testing, but may not be ideal for beginners or those needing broad component support.”

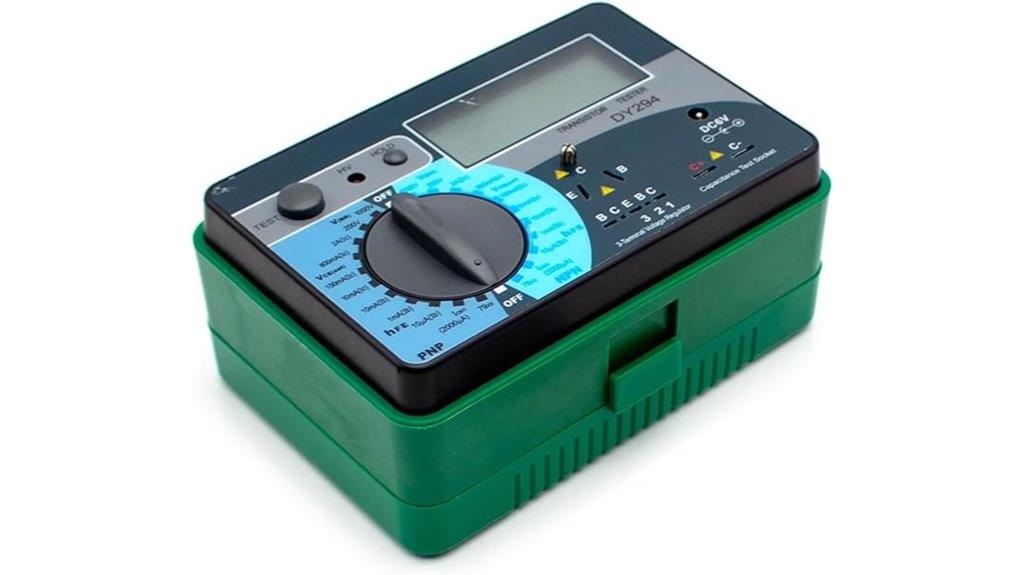

iDili Multifunctional Digital Transistor Analyzer/Tester
The iDili Digital Transistor Analyzer offers broad testing capabilities, including high-voltage testing up to 1000V, making it suitable for both hobbyists and professionals working with high-voltage components. Unlike the Velleman DCA55, which focuses more on parameter measurement, this device covers a wider range of components like SCRs and varistors, but its complexity and need for AAA batteries without included power add some inconvenience. It’s a good choice for those who need a portable, multi-functional tester with high-voltage testing ability, but may be overwhelming for complete beginners.
Pros:- High-voltage testing up to 1000V
- Versatile testing for multiple component types
- Portable and durable design
Cons:- Requires AAA batteries (not included)
- Complex operation for users without electronic experience
Best for: Electronics hobbyists and professionals dealing with high-voltage components or requiring versatile testing
Not ideal for: Beginners or users seeking a simple, battery-free device for basic diode or transistor testing
- High Voltage Testing:1000V reverse voltage
- Measurement Types:Diodes, transistors, SCR, FET
- Power Source:1.5V AAA batteries (not included)
Our verdict“This tester is best for experienced users needing high-voltage testing and multi-component coverage, but less suitable for novices.”

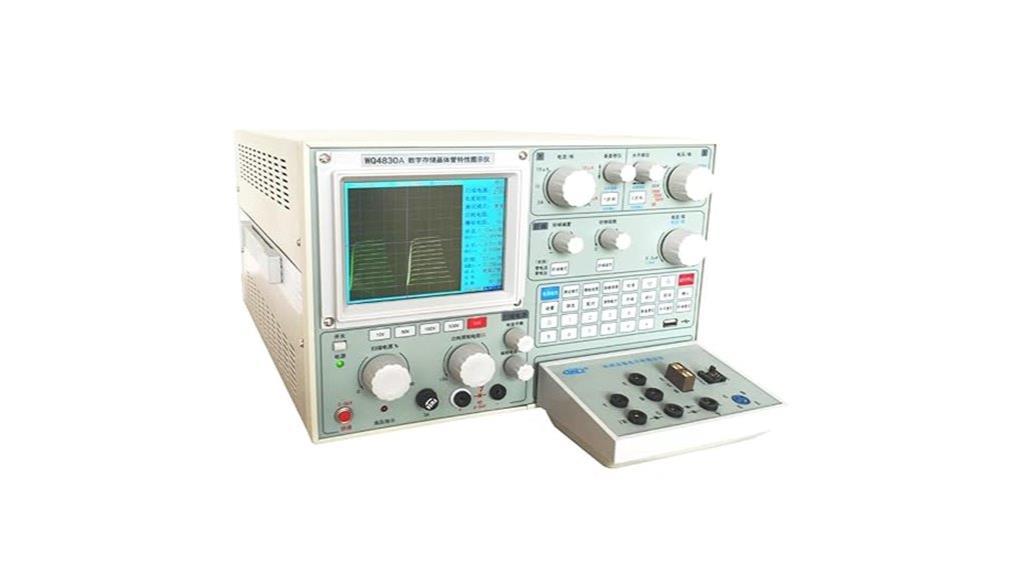

Transistor Curve Tracer & Semiconductor Parameter Analyzer
The Transistor Curve Tracer & Semiconductor Parameter Analyzer excels in providing a wide measurement range from 10μA to 5A, supporting detailed parameter analysis like β and gm, with digital storage and USB data transfer. Compared to the simpler Peak Atlas DCA75 Pro, it offers more advanced measurement capabilities and data management features, making it ideal for research or detailed development work. Its complex setup and limited internal storage without USB expansion mean it’s better suited for users with some technical background rather than complete beginners.
Pros:- Wide measurement range from 10μA to 5A
- High peak current capacity of 50A
- Digital storage and USB data transfer
Cons:- Complex setup requiring technical knowledge
- Limited internal storage without USB expansion
Best for: Research labs and advanced electronics engineers needing detailed parameter analysis and data management
Not ideal for: Hobbyists or those seeking a straightforward, plug-and-play device for basic testing
- Measurement Range:10μA/div to 5A/div
- Peak Current:50A
- Display:640×480 TFT color LCD
- Connectivity:USB
Our verdict“This device is best for professionals needing detailed parameter analysis and extensive data handling, but not for casual users.”

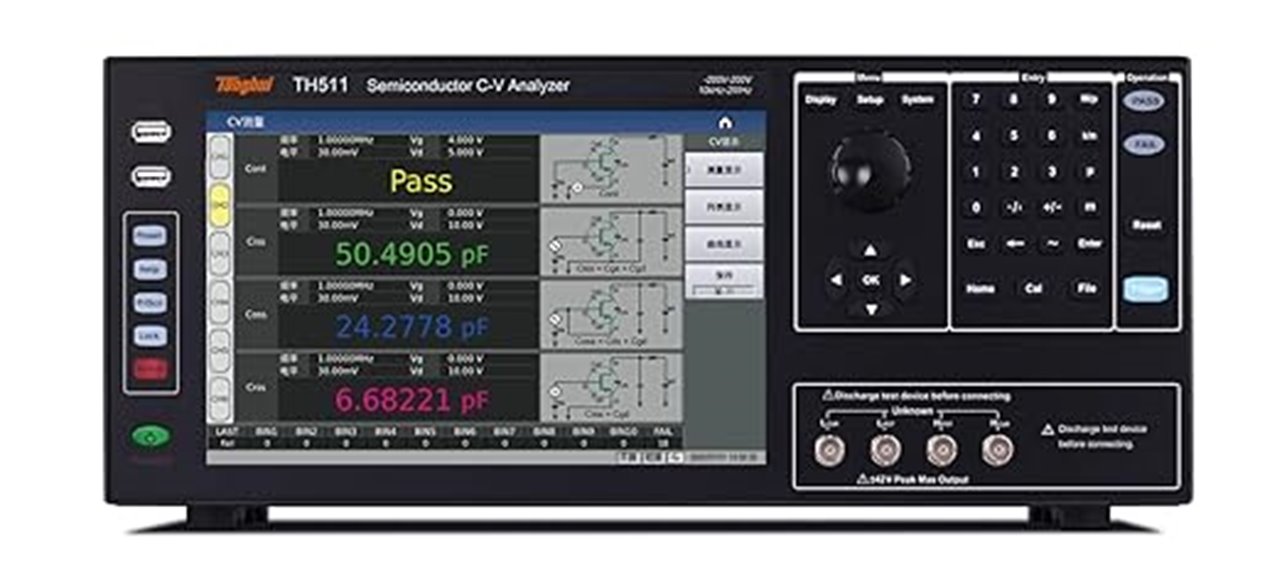

C-V Analyzer Semiconductor Parameter Testing System, 1kHz-2MHz
The C-V Analyzer System offers an integrated approach with a 10.1-inch touchscreen, supporting parallel testing of multiple devices, making it an ideal choice for detailed characterization in research or production environments. While the Peak Atlas DCA75 Pro excels in simple testing, this system provides sophisticated LCR measurement, high-voltage switching, and visualization, but its setup complexity and limited frequency range (1kHz-2MHz) may deter less experienced users. It’s best for users who need high-throughput, detailed analysis of diodes and transistors in a controlled setting.
Pros:- Integrated touchscreen interface for ease of use
- Supports simultaneous testing of multiple devices
- Detailed parameter analysis with visual curves
Cons:- Complex setup requiring technical expertise
- Limited to 1kHz-2MHz frequency range
Best for: Advanced development labs and production environments requiring multi-device testing and detailed parameter visualization
Not ideal for: Hobbyists or small-scale repair shops that don’t need multi-channel or high-frequency features
- Frequency Range:1kHz-2MHz
- Channels:2
- Display:10.1-inch touchscreen
- Supports Parallel Testing:Yes
Our verdict“This analyzer suits high-end users needing parallel, detailed testing, though it may be overkill for basic or hobbyist applications.”

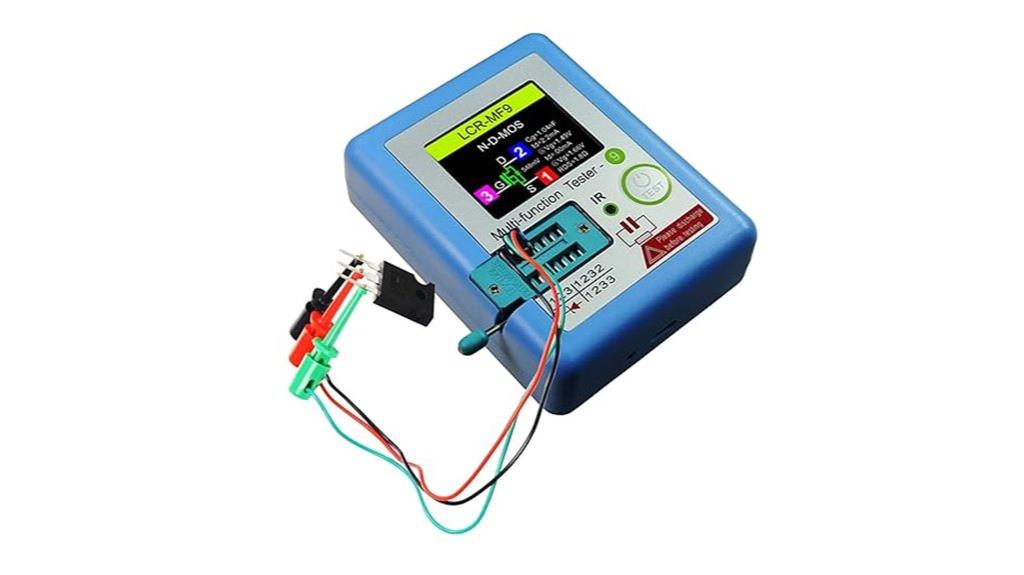

Upgraded Semiconductor Tester Compatible with DCA55 Analyzer
This upgraded tester stands out for its fully automatic operation, making it highly accessible for beginners who need quick identification of common components like diodes, LEDs, BJTs, FETs, and thyristors. Unlike more advanced analyzers such as the Peak Atlas DCA75 Pro, which offer detailed parameter measurements, this device focuses on rapid identification rather than in-depth testing. Its auto pinout and short-circuit protection enhance user safety and ease of use, but the voltage range is limited to -5.1V to 5.1V, restricting testing of higher-power components. While it’s durable and compact, it lacks detailed measurement parameters, making it less suitable for advanced debugging or research. Overall, this pick makes the most sense for electronics hobbyists or maintenance technicians who prioritize speed and simplicity over comprehensive analysis.Pros:- Automatically identifies over 10 common semiconductor components quickly
- Fully automatic operation simplifies testing process for beginners
- Built-in short-circuit protection enhances safety and device durability
- Compact, shock-resistant design for portable use
Cons:- Limited voltage testing range of -5.1V to 5.1V may exclude some components
- Requires replacement of parts annually, adding ongoing maintenance cost
- Lacks detailed measurement parameters for in-depth analysis
Best for: Electronics hobbyists, repair technicians, or beginners needing quick component identification
Not ideal for: Professional engineers or researchers requiring detailed parameter analysis and wider voltage testing capabilities
- Component Detection:10+ types including diodes, LEDs, BJTs, FETs, thyristors
- Operation:Fully automatic, auto pinout
- Short-Circuit Protection:Yes, current limited to 5.5mA
- Voltage Rating:-5.1V to 5.1V
- Power:Auto power-off, low-battery prompt
- Design:Shock-resistant, compact
Our verdict“This device is ideal for users who need fast, automatic component identification without the complexity of detailed parameter testing.”
How We Picked
These products were evaluated based on performance, versatility, build quality, and ease of use. We prioritized models capable of comprehensive semiconductor testing, including transistors, diodes, and FETs, while considering user feedback and expert reviews. Price-to-feature ratio was also a key factor, ensuring options cater to different budgets without sacrificing core functionality. The rankings reflect a balance between professional-grade capabilities and accessibility for less experienced users.Factors to Consider When Choosing Semiconductor Parameter Analyzers
Choosing the right semiconductor parameter analyzer involves more than just comparing specifications. Buyers should consider their specific testing needs, budget constraints, and the complexity of components they intend to analyze. Additional factors like ease of use, software integration, and maintenance requirements can significantly impact long-term satisfaction. Being aware of common pitfalls, such as overpaying for features not needed or selecting incompatible tools, can help streamline the decision process.Performance and Measurement Capabilities
Assess whether the analyzer supports the types of tests you need, such as I-V characterization, capacitance measurements, or FET testing. High-frequency capabilities and measurement accuracy are vital for advanced research, while basic models may suffice for routine testing. Ensuring the device can handle the range of devices you work with prevents costly upgrades later.
Ease of Use and Interface
Intuitive interfaces and clear documentation reduce setup time and errors. Look for models with user-friendly controls, helpful software, and good support resources. Complex devices with steep learning curves might be suitable for experts but frustrating for beginners or quick-turnaround environments.
Build Quality and Durability
Since these analyzers are often used in lab or field environments, durability matters. Metal casings, stable measurement ports, and reliable internal components ensure longevity. Cheaper plastic models may save money upfront but could require more frequent repairs or replacements.
Price and Value
While high-end analyzers offer extensive features, they also come with higher costs. Consider your budget and the value derived from features like multiple measurement modes, software support, and expandability. Budget options can be effective for simple tasks but may lack the precision or versatility needed for complex semiconductor analysis.
Compatibility and Software Support
Ensure the analyzer integrates smoothly with your existing test setups and software environments. Compatibility with common data analysis tools and remote control features can save time and reduce errors. Poor software support can hinder data management and limit the tool’s usefulness.
Frequently Asked Questions
What features should I prioritize if I need to test high-frequency components?
For high-frequency testing, look for analyzers that specify support for MHz or GHz range measurements, stable signal generation, and low parasitic capacitance. Devices with advanced shielding and calibration options also improve measurement accuracy at high frequencies. Prioritizing these features ensures reliable results in RF or microwave applications.
Are portable semiconductor analyzers reliable enough for professional use?
Yes, many portable analyzers now offer high precision and durability suitable for professional environments. However, it’s essential to verify specifications like measurement accuracy, repeatability, and calibration procedures. Choosing a well-built device with good support can provide the confidence needed for critical testing outside the lab.
How much should I expect to spend on a good semiconductor parameter analyzer?
Entry-level models can start around a few hundred dollars, suitable for basic testing, while professional-grade analyzers often range from $1,000 to several thousand dollars. Your budget should align with your testing complexity, the range of components, and whether advanced features like high-frequency measurements or software automation are necessary.
Can I upgrade or expand my analyzer’s capabilities later?
Many analyzers support firmware updates and modular add-ons, allowing for some degree of expansion. However, significant upgrades often require purchasing a new device. It’s wise to choose a model with scalable options or software compatibility that matches your evolving testing needs, preventing the need for frequent replacements.
What common mistakes should I avoid when selecting a semiconductor parameter analyzer?
One common mistake is overpaying for features you won’t need, which inflates costs without added value. Conversely, choosing an underpowered device can lead to inaccurate results and increased testing time. Failing to verify compatibility with existing equipment and software also causes frustration. Carefully match the analyzer’s specifications with your specific application to avoid these pitfalls.
Conclusion
For general-purpose semiconductor testing in professional settings, the Peak Atlas DCA75 Pro offers a balanced mix of features and reliability, making it the best overall choice. Budget-conscious users or hobbyists might find the Velleman DCA55 sufficient for basic measurements, offering excellent value. Those requiring advanced analysis capabilities, especially for RF or complex devices, should consider premium options with high-frequency support. Beginners will benefit from models with intuitive interfaces and solid documentation, like the iDili analyzer, while experienced technicians should look for analyzers with expandable features and software integration to meet evolving needs.
