Highbandwidth mixed signal oscilloscopes are essential tools for engineers working with complex signals across multiple domains. The best models combine high sampling rates with multiple channels, enabling precise analysis of both analog and digital signals simultaneously. The UNI-T MSO2204-S stands out as the top overall choice for its balanced performance and feature set, while the Siglent SDS1204X-E offers excellent value for budget-conscious buyers. However, higher bandwidth and more channels often come with increased complexity and cost, making it vital to choose a model that aligns with your specific needs. Continue reading for a detailed breakdown of each option and how they compare.
Get the latest gadgets delivered free with Prime
- Fast, free delivery on millions of items
- Prime Video, Amazon Music and more included
- Member-only deals all year
Complete the kit
Key Takeaways
- The top picks balance bandwidth, channel count, and usability to suit different testing needs.
- Higher bandwidth models tend to have more advanced features but at a higher price point and complexity.
- Analog and digital channel integration remains a key factor for mixed signal analysis, with some models excelling in this area.
- Build quality and user interface significantly impact long-term usability, especially for frequent use.
- Price-performance ratio varies; some models offer advanced features at a more accessible price, while premium options prioritize performance.
| UNI-T MSO2204-S 200MHz 4+16 Channel Mixed Signal Oscilloscope with Signal Generator and Touchscreen |  | Best Overall for Versatile Complex Signal Analysis | Bandwidth: 200 MHz | Channels: 4 analog + 16 digital | Sample Rate: 2 GSa/s | VIEW ON AMAZON | See Our Full Breakdown |
| UNI-T MSO1154HD-S Mixed Signal Oscilloscope, 150MHz, 12-Bit, 2.5GSa/s, 4 Analog + 16 Digital Channels, 7″ Touchscreen |  | Best for High-Resolution Signal Analysis with Protocol Support | Bandwidth: 150 MHz | Vertical Resolution: 12-bit | Sampling Rate: 2.5 GSa/s | VIEW ON AMAZON | See Our Full Breakdown |
| Siglent Technologies SDS1204X-E 200MHz Digital Oscilloscope, 4 Channels |  | Best for Reliable Basic High-Bandwidth Analysis | Bandwidth: 200 MHz | Channels: 4 | Sampling Rate: 1 GSa/s | VIEW ON AMAZON | See Our Full Breakdown |
| Siglent SDS2204X HD – Mixed Signal Oscilloscope (4 Channels / 200 MHz) |  | Best for High-Throughput Signal Capture with Digital Channels | Bandwidth: 200 MHz | Channels: 4 analog + digital (requires options) | Waveform capture rate: up to 500,000 wfm/s | VIEW ON AMAZON | See Our Full Breakdown |
| High Resolution Oscilloscope with 4 Channels MHO3-5004 Digital Storage Oscilloscope 14-inch Touch Screen 3GSa/s 500MHz Bandwidth |  | Best for High-Resolution, Large Display, and Deep Memory | Bandwidth: 500 MHz | Channels: 4 | Sampling Rate: 3 GSa/s | VIEW ON AMAZON | See Our Full Breakdown |
| Rigol MSO5104 Digital Oscilloscope, 100MHz, 4 Channels, 8GSa/s |  | Best Overall High-Bandwidth Mixed Signal Oscilloscope | Bandwidth: 100 MHz | Channels: 4 analog + 16 digital inputs (LA probe required) | Sample Rate: 8 GSa/s | VIEW ON AMAZON | See Our Full Breakdown |
| UNI-T MSO2204X 200 MHz 4-Channel Mixed Signal Oscilloscope |  | Best Value for High-Bandwidth Mixed Signal Testing | Bandwidth: 200 MHz | Channels: 4 | Sample Rate: 5 GSa/s | VIEW ON AMAZON | See Our Full Breakdown |
| Siglent SDS814X HD 12-bit Mixed Signal Oscilloscope (4 Channel / 100 MHz) |  | Best for High-Resolution Signal Analysis | Bandwidth: 100 MHz | Channels: 4 analog + 16 digital (requires options) | Sample Rate: 2 GSa/s | VIEW ON AMAZON | See Our Full Breakdown |
| highbandwidth mixed signal oscilloscope | Bandwidth | Channels | Display | Memory Depth |
|---|---|---|---|---|
| UNI-T MSO2204-S 200MHz 4+16 Ch | 200 MHz | 4 analog + 16 digital | 8-inch touchscreen | 56 Mpts |
| UNI-T MSO1154HD-S Mixed Signal | 150 MHz | — | 7-inch touchscreen | 100 Mpts |
| Siglent Technologies SDS1204X- | 200 MHz | 4 | 7-inch TFT-LCD | — |
| Siglent SDS2204X HD | 200 MHz | 4 analog + digital (requires options) | — | — |
| High Resolution Oscilloscope w | 500 MHz | 4 | 14-inch touch screen | 360 Mpts |
| Rigol MSO5104 Digital Oscillos | 100 MHz | 4 analog + 16 digital inputs (LA probe required) | 9-inch multitouch touchscreen | 100 Mpts (single-channel) |
| UNI-T MSO2204X 200 MHz 4-Chann | 200 MHz | 4 | 10.1-inch capacitive touchscreen | 100 Mpts |
| Siglent SDS814X HD 12-bit Mixe | 100 MHz | 4 analog + 16 digital (requires options) | 7-inch touch screen | 50 Mpts |
More Details on Our Top Picks
UNI-T MSO2204-S 200MHz 4+16 Channel Mixed Signal Oscilloscope with Signal Generator and Touchscreen
This model stands out for its combination of high bandwidth, numerous channels, and integrated signal generator, making it ideal for detailed testing in research or engineering environments. Its 200MHz bandwidth and 4 analog plus 16 digital channels provide the capacity to analyze complex signals, while the 50MHz built-in signal generator adds testing flexibility. The 8-inch touchscreen simplifies operation despite the device’s complexity, and the 2GSa/s sampling rate ensures fast data capture. Compared with the Siglent SDS1204X-E, it offers more channels and integrated features but comes at a higher price, which may be a barrier for hobbyists. Its main tradeoff is the learning curve needed to master its advanced functions.
Pros:- High bandwidth and multiple channels for complex analysis
- Built-in 50MHz signal generator enhances testing capability
- Intuitive 8-inch touchscreen simplifies operation
- Fast 2GSa/s sampling rate for high-speed data capture
Cons:- Relatively high cost may deter hobbyist users
- Complex feature set requires training for effective use
Best for: Engineers and researchers needing comprehensive signal analysis and integrated testing tools
Not ideal for: Hobbyists or students on a tight budget who prioritize simplicity and affordability
- Bandwidth:200 MHz
- Channels:4 analog + 16 digital
- Sample Rate:2 GSa/s
- Memory Depth:56 Mpts
- Signal Generator Frequency:50 MHz
- Display:8-inch touchscreen
Our verdict“This scope suits professional users who need extensive features and are prepared to handle its complexity.”

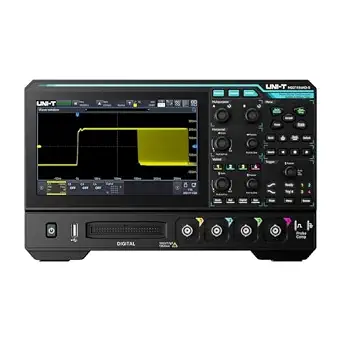

UNI-T MSO1154HD-S Mixed Signal Oscilloscope, 150MHz, 12-Bit, 2.5GSa/s, 4 Analog + 16 Digital Channels, 7″ Touchscreen
This scope makes the most sense for those requiring detailed waveform analysis combined with protocol decoding capabilities. Its 150MHz bandwidth and 12-bit vertical resolution deliver high-fidelity signals, ideal for nuanced testing. The 2.5GSa/s sampling rate allows for precise capture of fast signals, and the 7-inch touchscreen offers a user-friendly interface. Compared to the Siglent SDS1204X-E, it provides higher resolution but slightly lower bandwidth, making it suitable for applications demanding detailed waveform fidelity. Its main challenge is its complexity, which may be overwhelming for beginners or hobbyists.
Pros:- High 12-bit vertical resolution for detailed waveforms
- Fast 2.5GSa/s sampling rate captures quick signals accurately
- Supports multiple protocols like UART, I2C, SPI, CAN
- Intuitive 7-inch touchscreen
Cons:- Complex interface may have a steep learning curve
- Higher cost compared to basic oscilloscopes
Best for: Advanced technicians and protocol developers requiring high-resolution signals and multi-protocol analysis
Not ideal for: Entry-level users or hobbyists seeking straightforward operation at a lower cost
- Bandwidth:150 MHz
- Vertical Resolution:12-bit
- Sampling Rate:2.5 GSa/s
- Memory Depth:100 Mpts
- Display:7-inch touchscreen
- Protocols Supported:UART, I2C, SPI, CAN, LIN, CANFD, audio
Our verdict“This scope is tailored for professionals who need detailed signal fidelity and protocol decoding in complex testing scenarios.”
Siglent Technologies SDS1204X-E 200MHz Digital Oscilloscope, 4 Channels
Compared with more advanced models, the Siglent SDS1204X-E offers solid performance at a more approachable price point. Its 200MHz bandwidth and 1 GSa/s sampling rate provide accurate measurements for most standard testing needs. The 4 channels and large 7-inch display facilitate easy waveform viewing, while the intelligent trigger options add versatility. However, it lacks integrated protocol decoding or high-resolution capabilities, making it less suitable for detailed digital analysis. The absence of a built-in battery and its somewhat complex interface mean it’s better suited for lab environments rather than fieldwork.
Pros:- High bandwidth and sampling rate for accurate measurements
- Large, clear display simplifies waveform interpretation
- Versatile trigger options for various testing scenarios
Cons:- No built-in battery limits portability
- Interface can be complex for new users
Best for: Hobbyists or technicians needing reliable, high-bandwidth testing without advanced protocol requirements
Not ideal for: Professionals requiring detailed digital protocol decoding or high-resolution waveform analysis
- Bandwidth:200 MHz
- Channels:4
- Sampling Rate:1 GSa/s
- Memory:14 Mpts
- Display:7-inch TFT-LCD
Our verdict“This scope offers dependable performance for general high-bandwidth testing in static lab settings.”
Siglent SDS2204X HD – Mixed Signal Oscilloscope (4 Channels / 200 MHz)
This model emphasizes high waveform capture rates, making it suitable for detailed signal behavior in fast-changing environments. Its 200MHz bandwidth and up to 2 GSa/s sampling rate allow for precise, real-time analysis. The 4 analog channels are standard, but digital channels require additional options, which could complicate setup and increase overall cost. Compared with the UNI-T MSO2204-S, it offers higher sample rates but less integrated functionality. Its complex setup and optional digital channels mean it’s best for users comfortable with configuration and looking for rapid waveform acquisition.
Pros:- High waveform capture rate enhances analysis of fast signals
- High sampling rate for detailed measurements
- Multiple channels for versatile testing
Cons:- Digital channels require extra options and configuration
- Setup complexity might be prohibitive for novices
Best for: Engineers and technicians needing rapid waveform capture and high throughput in digital and analog signals
Not ideal for: Beginners or hobbyists who prefer plug-and-play simplicity without additional options
- Bandwidth:200 MHz
- Channels:4 analog + digital (requires options)
- Waveform capture rate:up to 500,000 wfm/s
- Sampling rate:up to 2 GSa/s
Our verdict“This scope is ideal for experienced users who prioritize high capture rates and speed over plug-and-play simplicity.”
High Resolution Oscilloscope with 4 Channels MHO3-5004 Digital Storage Oscilloscope 14-inch Touch Screen 3GSa/s 500MHz Bandwidth
The MHO3-5004 excels in delivering detailed waveform capture thanks to its 12-bit ADC and 500MHz bandwidth. Its large 14-inch touch screen provides a clear, expansive view, which is especially valuable during complex debugging sessions. With 3GSa/s sampling rate and a substantial 360 Mpts memory, this scope supports long recordings and multiple event captures. Compared to the UNI-T MSO2204-S, it offers higher bandwidth and better resolution, but at the cost of increased weight and complexity. It’s best suited for high-precision circuit analysis rather than portable or quick testing scenarios.
Pros:- High-resolution 12-bit ADC for detailed waveform clarity
- Large 14-inch display enhances visibility
- Deep memory and segmented storage for long or multiple captures
- Multiple connectivity options for versatile data transfer
Cons:- Relatively heavy and less portable
- Complex feature set requires a learning curve
Best for: Advanced engineers and detailed circuit analysts requiring high resolution and large display for intricate debugging
Not ideal for: Field technicians or hobbyists needing portability and simple operation
- Bandwidth:500 MHz
- Channels:4
- Sampling Rate:3 GSa/s
- Memory Depth:360 Mpts
- Display:14-inch touch screen
Our verdict“This scope is well-suited for professionals focused on high-resolution, detailed analysis in a stable environment.”
Rigol MSO5104 Digital Oscilloscope, 100MHz, 4 Channels, 8GSa/s
The Rigol MSO5104 stands out for its combination of high sampling rate and deep memory, making it ideal for detailed analysis of complex signals. Compared with the Siglent SDS814X HD, which offers higher resolution but lower bandwidth, the Rigol’s 100 MHz bandwidth is suitable for a broad range of high-bandwidth applications, especially where detailed protocol decoding and extensive memory are needed. Its large 9-inch multitouch touchscreen enhances usability, though the digital inputs require a separate LA probe, adding complexity and cost. While advanced features like bandwidth upgrades and serial protocol options are available, they come at additional expense, making it less straightforward for beginners. This scope makes the most sense for professionals needing versatile, high-speed data capture with extensive connectivity options, but less so for those seeking simplicity or ultra-high-frequency testing.
Pros:- High sampling rate (8 GSa/s) and large memory (100 Mpts) for detailed waveform capture
- Intuitive 9-inch multitouch touchscreen interface
- Multiple connectivity options including LAN, USB, HDMI, and trigger out
- Supports extensive analysis functions and protocol decoding
Cons:- Requires separate LA probe for digital inputs, increasing setup complexity
- Some advanced features, like memory upgrades and serial protocols, cost extra
- Complex interface may be daunting for beginners
Best for: Engineers and technicians who require detailed signal analysis, protocol decoding, and extensive connectivity in a versatile device.
Not ideal for: Hobbyists or students who prefer a straightforward, budget-friendly scope without the need for advanced features or high digital complexity.
- Bandwidth:100 MHz
- Channels:4 analog + 16 digital inputs (LA probe required)
- Sample Rate:8 GSa/s
- Memory Depth:100 Mpts (single-channel)
- Display:9-inch multitouch touchscreen
- Connectivity:USB, LAN, HDMI, TRIG OUT, Web Control
Our verdict“This scope is best suited for professionals needing powerful analysis tools and extensive connectivity, despite a steeper learning curve.”
UNI-T MSO2204X 200 MHz 4-Channel Mixed Signal Oscilloscope
The UNI-T MSO2204X offers a compelling blend of bandwidth and features at a more accessible price point, making it a strong choice for those who need reliable high-bandwidth testing without overpaying. Its 200 MHz bandwidth surpasses the Siglent SDS814X HD and approaches the needs of more advanced applications, while providing a 5 GSa/s sample rate and 100 Mpts memory. The device’s 10.1-inch capacitive touchscreen makes operation intuitive, and the integrated serial decoding simplifies embedded system debugging. However, digital channels require additional options and probes, which can add to the overall system cost. Unlike the Siglent SDS814X HD, which emphasizes high-resolution 12-bit analog/digital conversion, the UNI-T focuses on higher bandwidth with good general-purpose capabilities. It’s a practical choice for engineers balancing performance and budget, but less suitable for users who want built-in digital channels without extra costs.
Pros:- 200 MHz bandwidth suitable for high-frequency testing
- Fast waveform capture rate (2 million wfms/sec) for dynamic signals
- Deep 100 Mpts memory for detailed waveform analysis
- Intuitive 10.1-inch touchscreen interface
Cons:- Digital channels require additional options and probes, increasing cost
- Heavy and somewhat bulky, reducing portability
- Limited to 200 MHz bandwidth, not ideal for ultra-high-frequency applications
Best for: Design engineers and technicians needing high-bandwidth testing with integrated protocol decoding at a reasonable cost.
Not ideal for: Users requiring a scope with built-in digital channels or who prioritize ultra-high resolution over bandwidth.
- Bandwidth:200 MHz
- Channels:4
- Sample Rate:5 GSa/s
- Memory Depth:100 Mpts
- Display:10.1-inch capacitive touchscreen
- Connectivity:USB, LAN, HDMI
Our verdict“This scope offers high bandwidth and strong features at a value price, perfect for professionals balancing performance and cost.”
Siglent SDS814X HD 12-bit Mixed Signal Oscilloscope (4 Channel / 100 MHz)
The Siglent SDS814X HD shines for its 12-bit high-resolution analog and digital conversion, making it ideal for applications where waveform detail is paramount. Its 100 MHz bandwidth is comparable to the Rigol MSO5104, but with a focus on clarity and precision thanks to the 12-bit resolution. The scope’s 7-inch touchscreen is slightly smaller than the others, but still offers fast waveform capture at 80,000 wfms/sec—sufficient for most dynamic testing. Digital channels need additional options and probes, which could limit immediate usability for digital-heavy tasks. Unlike the Rigol or UNI-T, which emphasize bandwidth or integrated features, the Siglent prioritizes analog detail and high resolution, making it suited for detailed component-level work and precise measurements. It’s less ideal for users who need extensive digital channel integration without extra purchases.
Pros:- High 12-bit resolution for detailed analog and digital signals
- Deep 50 Mpts memory for capturing fine waveform details
- Fast waveform capture rates (up to 500,000 wfms/sec in sequences)
- Intuitive touchscreen operation
Cons:- Digital channels require extra options and probes, adding cost
- Limited bandwidth at 100 MHz compared to some competitors
- Smaller display size may reduce ease of use for complex analysis
Best for: Electronics designers and engineers who need high-resolution signals and detailed waveform analysis, especially in analog circuits.
Not ideal for: Testers focused on ultra-high bandwidth applications or with a primary need for integrated digital channels without additional options.
- Bandwidth:100 MHz
- Channels:4 analog + 16 digital (requires options)
- Sample Rate:2 GSa/s
- Memory Depth:50 Mpts
- Display:7-inch touch screen
- Waveform Capture Rate:80,000 wfms/sec (normal), 500,000 wfms/sec (sequence)
Our verdict“This scope excels in applications demanding high analog resolution and detailed waveform fidelity, ideal for precise measurements over ultra-high bandwidth.”
How We Picked
We evaluated highbandwidth mixed signal oscilloscopes based on critical factors such as bandwidth, sample rate, number of channels, and signal fidelity. Usability features like touchscreen interfaces, user interface design, and measurement tools also played a major role. We prioritized models that provide a good balance between performance and value, ensuring they are suitable for both professional and advanced hobbyist use. Our ranking reflects how well each scope meets the demands of complex signal analysis, considering build quality, expandability, and overall reliability. Cost was a factor, but only in terms of how well each product delivers features relative to its price, avoiding models that overpromise and underperform.Factors to Consider When Choosing Highbandwidth Mixed Signal Oscilloscopes
Choosing the right highbandwidth mixed signal oscilloscope requires considering several key factors beyond just raw specs. Buyers should think about their specific application needs, future expandability, ease of use, and overall value. A higher bandwidth isn’t always necessary for every task; matching your scope’s capabilities to your typical signal frequencies prevents overspending. Additionally, the integration of digital channels and features like signal generators can streamline workflows. Understanding these broader considerations helps avoid common pitfalls such as overpaying for unnecessary features or selecting a scope that’s too limited for your projects.Bandwidth and Sample Rate
Bandwidth determines the maximum frequency the oscilloscope can accurately measure, making it critical for high-frequency signal analysis. Pairing this with an adequate sample rate ensures you capture signal details without aliasing. For most highbandwidth scopes, a sample rate of at least 2-5 times the signal frequency is recommended. Overestimating bandwidth can lead to unnecessary costs, while underestimating can produce incomplete or misleading measurements. Match your scope’s specifications to your typical work signals for optimal performance.
Channel Count and Mixed Signal Capabilities
Having multiple analog and digital channels is fundamental for mixed signal analysis, allowing simultaneous observation of various signals. For complex systems, four or more channels offer better flexibility, especially if you plan to analyze multiple signals in real time. Some scopes integrate digital channels directly, simplifying setup and reducing clutter. Be aware that increasing channels and digital features often increases cost and complexity, so evaluate your actual needs versus the added capabilities.
Usability and Interface
An intuitive interface, often via touchscreen, can significantly reduce setup time and measurement errors. Look for scopes with clear menus, customizable views, and useful measurement tools. A well-designed UI minimizes learning curves and boosts productivity, especially during long testing sessions. Be cautious with overly complex interfaces that might be overwhelming, and consider the availability of software updates and support for long-term usability.
Build Quality and Reliability
Durability matters, especially in busy lab environments. A sturdy chassis, reliable connectors, and a responsive touchscreen contribute to a better user experience. Long-term reliability depends on the scope’s internal components and thermal management. Investing in a well-built model can prevent costly repairs and downtime. Testing environments with vibration, dust, or high temperatures benefit from rugged designs with good protection ratings.
Price and Value
While highbandwidth scopes can be expensive, it’s important to weigh features against your budget. Prioritize models that offer the best combination of essential features and build quality within your price range. Sometimes, spending more on a scope with better digital channels, higher resolution, or additional features leads to more accurate and efficient testing. Beware of models with inflated specs that don’t translate into real-world performance; focus on value for your specific test needs.
Frequently Asked Questions
How much bandwidth do I need for high-frequency signal analysis?
For high-frequency signal analysis, a scope with at least 200 MHz of bandwidth is advisable, but many professionals prefer 300-500 MHz for more precise measurements. The higher the bandwidth, the better the scope can accurately measure signals at higher frequencies, reducing the risk of signal distortion or aliasing. Consider your typical working frequency and future needs; investing slightly above your current requirements can save money later by avoiding an upgrade too soon.
Are digital channels necessary for mixed signal oscilloscopes?
Digital channels are a key feature for mixed signal scopes, allowing you to analyze digital signals alongside analog ones simultaneously. They simplify complex debugging tasks, especially in digital communication and embedded systems. If your work involves digital circuit testing, digital channels are nearly indispensable. However, if your focus is solely on analog RF signals, you may prioritize other features over digital channels to optimize your investment.
What’s the main tradeoff when choosing between high bandwidth and ease of use?
Higher bandwidth scopes tend to be more complex with advanced features that can be overwhelming for beginners, potentially leading to a steeper learning curve. They often come with more sophisticated interfaces and additional settings, which may require more time to master. Conversely, scopes designed for ease of use might compromise on maximum bandwidth or channel count. Balancing these factors depends on your experience level and testing demands, with some models offering a good compromise of both.
How important is build quality in a highbandwidth scope?
Build quality directly impacts the scope’s durability, reliability, and long-term usability. Scopes used in busy or harsh environments need sturdy chassis, protected connectors, and thermal management features to prevent failures. A well-constructed scope can withstand frequent transport and regular use without degrading performance. Investing in a reliable, rugged model reduces the risk of costly repairs and downtime, ensuring your testing remains consistent over time.
Should I prioritize a scope with more features or better core performance?
Deciding between extra features and core performance depends on your specific needs. For routine measurements, a reliable scope with solid core specs might suffice, providing accurate data without unnecessary complexity. In contrast, advanced applications such as high-speed digital debugging or RF analysis benefit from additional features like multiple channels, advanced triggering, and signal generators. Focus on the features that directly support your work to avoid paying for extras that won’t be used.
Conclusion
For general high-frequency testing and professional applications, the UNI-T MSO2204-S makes a compelling overall choice thanks to its balanced specs and usability. Budget-conscious buyers should consider the Siglent SDS1204X-E for excellent value, while those seeking maximum performance might lean toward premium options like the High Resolution Oscilloscope MHO3-5004. Beginners will find models with intuitive interfaces easier to operate, whereas experienced engineers should prioritize bandwidth and digital channel integration. Ultimately, selecting the right scope hinges on matching its capabilities with your specific testing requirements and budget constraints.
