Logic analyzers are essential tools for debugging digital circuits, capturing signals across multiple channels with high precision. The best options vary from budget-friendly models to advanced, feature-rich analyzers suited for professional development. The Saleae Logic Pro 16 makes a compelling choice for high-channel count needs, while the LONELY BINARY Logic Analyzer offers a cost-effective entry point. Key tradeoffs often involve balancing sampling speed, channel count, and software usability. Continue reading for a detailed breakdown of these top picks and how they compare.
Complete the kit
Key Takeaways
- Higher sampling rates generally improve signal clarity but come at a higher cost and power consumption.
- Channel count is crucial for complex digital systems; most top picks range from 8 to 16 channels.
- Software usability varies, with Saleae’s interface often praised for simplicity, while others may require more technical setup.
- Build quality and included accessories can significantly affect long-term reliability and ease of use.
- Budget options often sacrifice some features like higher sampling speeds or extensive software support.
| LONELY BINARY Logic Analyzer 8 Channels 24MHz USB Kit with Base Module and Accessories |  | Best for Budget-Conscious Beginners | Channels: 8 | Sampling Rate: 24MHz | Connectivity: USB-A & Type-C | VIEW ON AMAZON | See Our Full Breakdown |
| USB Logic Analyzer LA2016 16 Channel 200MHz with PC Software |  | Best for Mid-Range Protocol Development | Channels: 16 | Sampling Rate: 200MHz | Memory Depth: 1Gbit | VIEW ON AMAZON | See Our Full Breakdown |
| DSLogic Plus USB-Based Logic Analyzer with 400MHz Sampling Rate, 256Mbits Memory, USB 2.0 Interface, 16 Channels |  | Best for High-Speed, Deep Data Capture | Channels: 16 | Sampling Rate: 400MHz | Memory: 256Mbits | VIEW ON AMAZON | See Our Full Breakdown |
| Saleae Logic 8 8-Channel Logic Analyzer, Red |  | Best for Versatile Protocol and Analog Analysis | Input Channels: 8 digital/analog | Protocol Support: 25+ protocols | Digital Sample Rate: 100 MS/s | VIEW ON AMAZON | See Our Full Breakdown |
| Logic 8 (Black) – Saleae 8-Channel Logic Analyzer |  | Best for Portable, Multi-Platform Debugging | Inputs: 8 digital/analog | Digital Sample Rate: 100 MS/s | Analog Sample Rate: 10 MS/s | VIEW ON AMAZON | See Our Full Breakdown |
| USB Logic Analyzer Device Set with 8 Channels and 24MHz Sampling Rate |  | Best for Basic Digital Protocol Debugging | Sampling Rate: 24 MHz | Channels: 8 | Voltage Range: 0V to 5.5V | VIEW ON AMAZON | See Our Full Breakdown |
| HiLetgo USB Logic Analyzer Device with EMI Ferrite Ring and USB Cable, 24MHz, 8 Channels |  | Best for Noise-Resistant Basic Debugging | Sampling Rate: up to 24MHz | Channels: 8 | Input Voltage Range: -0.5V to 5.25V | VIEW ON AMAZON | See Our Full Breakdown |
| LA1010 USB Logic Analyzer 16 Input Channels 100MHz with PC Software Support for Windows, Mac OS, Linux |  | Best for Cross-Platform Embedded Development | Channels: 16 | Sampling Rate: 100MHz | Supported Protocols: I2C, SPI, UART, CAN, etc. | VIEW ON AMAZON | See Our Full Breakdown |
| Saleae 8-Channel Logic Analyzer (Red) |  | Best for High-Speed Protocol Analysis | Inputs: 8 Digital/Analog | Digital sample rate: up to 500 MS/s | Analog sample rate: up to 50 MS/s | VIEW ON AMAZON | See Our Full Breakdown |
| Saleae Logic Pro 16 Red 16-Channel Logic Analyzer |  | Best for Multi-Protocol, Multi-Channel Analysis | Channels: 16 digital/analog | Digital Sample Rate: Up to 500 MS/s | Analog Sample Rate: Up to 50 MS/s | VIEW ON AMAZON | See Our Full Breakdown |
| Saleae Logic Pro 16 (Black) – 16-Channel Logic Analyzer |  | Best for High-Resolution Multi-Protocol Analysis | Inputs: 16 Digital/Analog | Sample Rate (Digital): up to 500 MS/s | Sample Rate (Analog): up to 50 MS/s | VIEW ON AMAZON | See Our Full Breakdown |
| Saleae Logic Pro 8 – 8-Channel Logic Analyzer for Windows, Mac, Linux |  | Best for Balanced Performance and Cost | Inputs: 8 Digital/Analog | Digital Sample Rate: up to 500 MS/s | Analog Sample Rate: up to 50 MS/s | VIEW ON AMAZON | See Our Full Breakdown |
| logic analyzer | Channels | Sampling Rate |
|---|---|---|
| LONELY BINARY Logic Analyzer 8 | 8 | 24MHz |
| USB Logic Analyzer LA2016 16 C | 16 | 200MHz |
| DSLogic Plus USB-Based Logic A | 16 | 400MHz |
| Saleae Logic 8 8-Channel Logic | — | — |
| Logic 8 | — | — |
| USB Logic Analyzer Device Set | 8 | 24 MHz |
| HiLetgo USB Logic Analyzer Dev | 8 | up to 24MHz |
| LA1010 USB Logic Analyzer 16 I | 16 | 100MHz |
| Saleae 8-Channel Logic Analyze | — | — |
| Saleae Logic Pro 16 Red 16-Cha | 16 digital/analog | — |
| Saleae Logic Pro 16 | — | — |
| Saleae Logic Pro 8 | — | — |
More Details on Our Top Picks

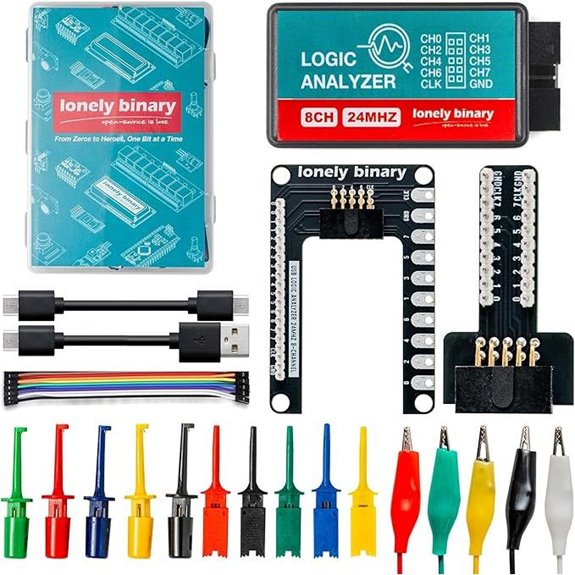

LONELY BINARY Logic Analyzer 8 Channels 24MHz USB Kit with Base Module and Accessories
This analyzer stands out for its affordability and comprehensive accessory kit, making it an excellent entry point for those new to digital debugging. Compared to the Saleae Logic 8, it offers a similar number of channels but at a lower price, though it sacrifices some speed and advanced features. Its 24MHz sampling rate suits basic protocol analysis like I2C, SPI, and UART, but falls short for high-speed signals. The included cables, clips, and case streamline setup and portability. However, its limited sampling rate and the need for some technical know-how mean it’s better suited to hobbyists rather than professionals. Tradeoffs involve lower speed and more setup effort for a budget-friendly price.
Pros:- Affordable price point for entry-level projects
- Complete accessory kit for immediate use
- USB-C and USB-A compatibility for versatile connectivity
- Portable and well-organized for mobile use
Cons:- Limited to 24MHz sampling, unsuitable for high-frequency signals
- Requires some technical knowledge to operate effectively
Best for: Beginners, students, or hobbyists testing basic digital signals and protocols
Not ideal for: Professionals working with high-speed signals or requiring advanced protocol decoding
- Channels:8
- Sampling Rate:24MHz
- Connectivity:USB-A & Type-C
- Included Accessories:Test clips, alligator clips, jumper wires, storage case
- Compatibility:Windows, Mac, Linux, Ubuntu
Our verdict“This analyzer is ideal for beginners and educators needing an affordable, portable option for basic protocol debugging.”

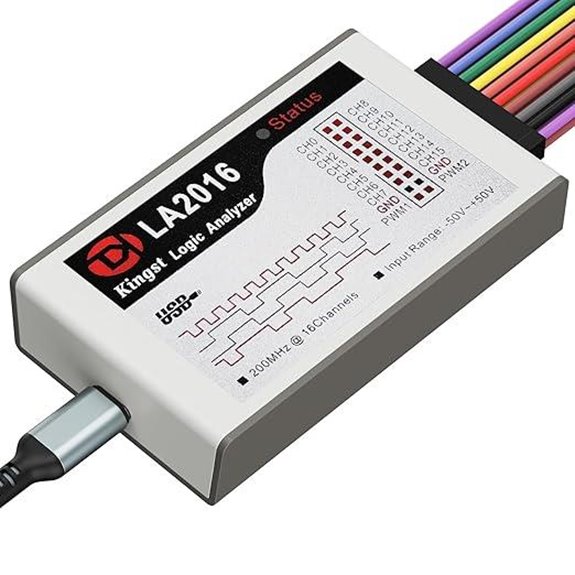

USB Logic Analyzer LA2016 16 Channel 200MHz with PC Software
The LA2016 offers a significant upgrade over simpler analyzers like the Lonely Binary, with 16 channels and a 200MHz sampling rate, making it suitable for more demanding debugging tasks. Its 1Gbit memory depth supports long captures, and its automated protocol decoding covers over 20 protocols, streamlining analysis. Unlike the DSLogic Plus, which excels in high-speed and large data captures, the LA2016 is more accessible for users without extensive setup requirements, though it still needs software installation. Its cross-platform support makes it versatile, but the software complexity might challenge beginners. This model strikes a balance between performance and ease of use for intermediate users.
Pros:- Supports 16 channels at 200MHz for detailed analysis
- Automated protocol decoding for over 20 protocols
- Cross-platform compatibility with Windows, MacOS, and Linux
- Portable with full accessory package
Cons:- Requires software installation, adding setup complexity
- Steeper learning curve for less experienced users
Best for: Developers and testers working with multiple protocols needing reliable, mid-level analysis
Not ideal for: Complete novices or those requiring extremely high-speed data acquisition beyond 200MHz
- Channels:16
- Sampling Rate:200MHz
- Memory Depth:1Gbit
- Protocols Supported:I2C, SPI, UART, CAN, I2S, USB1.1, JTAG, Modbus
- Compatibility:Windows, MacOS, Linux
Our verdict“This analyzer provides a solid middle ground for engineers needing reliable multi-protocol analysis without the complexity of ultra-high-speed devices.”

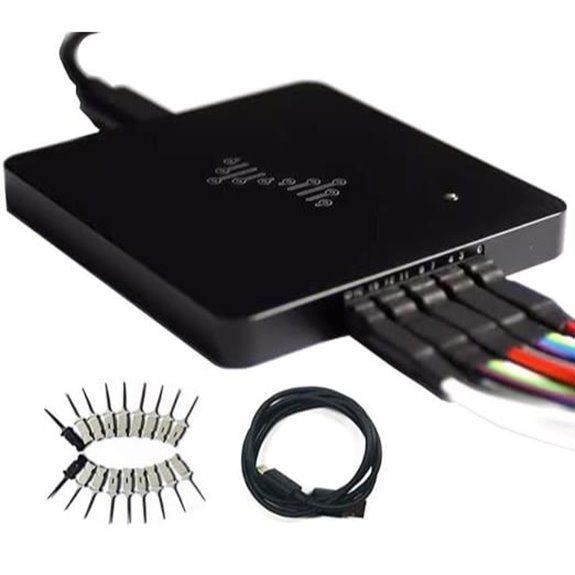

DSLogic Plus USB-Based Logic Analyzer with 400MHz Sampling Rate, 256Mbits Memory, USB 2.0 Interface, 16 Channels
The DSLogic Plus stands out with its 400MHz sampling rate and 16-channel support, making it ideal for detailed, high-speed signal analysis. Its 256Mbit memory and support for up to 16G sample depth in stream mode enable extensive data capturing, surpassing the capabilities of both the LA2016 and Saleae Logic 8. Its durable design with shielded wires and aluminum casing ensures cleaner waveforms, but setup can be complex, especially for users unfamiliar with logic analyzers or software configuration. Its open-source DSView software provides flexibility, though it may require some technical skill to leverage fully. This device is best suited for advanced users needing maximum data depth and high-speed capture.
Pros:- Exceptional 400MHz sampling rate for detailed high-speed analysis
- Supports multiple modes, including stream and buffer modes
- Robust construction with shielded wires and aluminum case
- Open source software offers customization and flexibility
Cons:- Complex to set up and operate without prior experience
- Limited onboard storage relies heavily on PC for data processing
Best for: Electronics professionals and researchers conducting high-speed, large-scale signal analysis
Not ideal for: Beginners or casual hobbyists due to its complex setup and high-performance focus
- Channels:16
- Sampling Rate:400MHz
- Memory:256Mbits
- Supported Modes:Stream, Buffer
- Compatibility:Windows, macOS, Linux
Our verdict“This analyzer is designed for advanced users who require maximum speed, depth, and flexibility for complex signal analysis tasks.”
Saleae Logic 8 8-Channel Logic Analyzer, Red
The Saleae Logic 8 excels in combining digital and analog analysis within a compact form, supporting over 25 protocols and high sampling rates—up to 100 MS/s for digital and 10 MS/s for analog signals. Compared to the cheaper Lonely Binary, it offers richer features and more refined software, making it suitable for professional environments. Its ability to handle both digital and analog signals across multiple protocols makes it a flexible choice for complex debugging. However, its reliance on a computer and USB 2.0 interface can limit throughput in high-speed, data-intensive scenarios. This product makes sense for users who need comprehensive protocol support and high-quality waveform capture in a portable package.
Pros:- Supports over 25 protocols plus analog signals
- High digital sample rate of 100 MS/s
- Compact, portable design with multi-platform software
- Simultaneous digital and analog analysis
Cons:- USB 2.0 interface may limit data throughput
- Requires a computer for operation, reducing portability in some scenarios
Best for: Engineers requiring multi-protocol and analog support in a portable, reliable device
Not ideal for: Users seeking ultra-high-speed data capture or standalone operation without a PC
- Input Channels:8 digital/analog
- Protocol Support:25+ protocols
- Digital Sample Rate:100 MS/s
- Analog Sample Rate:10 MS/s
- Software:Saleae Logic 2
Our verdict“This analyzer offers a versatile, portable solution for detailed protocol and analog analysis, ideal for professional troubleshooting.”
Logic 8 (Black) – Saleae 8-Channel Logic Analyzer
The Logic 8 (Black) offers a portable, straightforward approach with 8 channels and high sampling rates—up to 100 MS/s digital and 10 MS/s analog—making it suitable for on-the-go debugging. Its extensive memory capacity, supporting over 10 billion samples digitally, ensures long captures without data loss. Compared to the Saleae Logic 8 Red, it emphasizes portability and multi-platform compatibility, ideal for field engineers or hobbyists needing flexibility. Its reliance on USB 2.0 limits throughput somewhat, but its ease of use and robust protocol support compensate well. This device makes sense for users who need a reliable, portable solution for detailed digital and analog signal analysis.
Pros:- Portable design supporting Mac, Windows, and Linux
- High sampling rates for detailed analysis
- Massive digital memory capacity for long-term data collection
- Supports multiple protocols
Cons:- Limited to USB 2.0 interface, limiting throughput
- Requires a computer for data analysis
Best for: Field technicians, hobbyists, or students needing portable, multi-protocol analysis
Not ideal for: High-frequency high-throughput applications or those requiring standalone operation
- Inputs:8 digital/analog
- Digital Sample Rate:100 MS/s
- Analog Sample Rate:10 MS/s
- Memory:10+ billion samples
- Connectivity:USB 2.0
Our verdict“This analyzer is well-suited for portable, multi-platform digital and analog debugging, especially in field environments.”

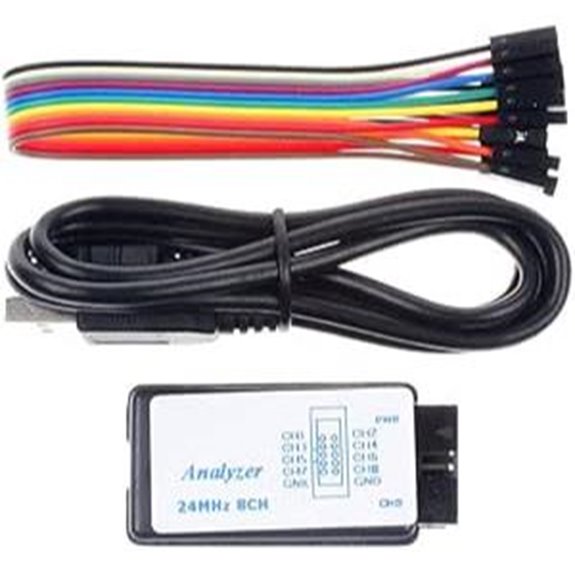

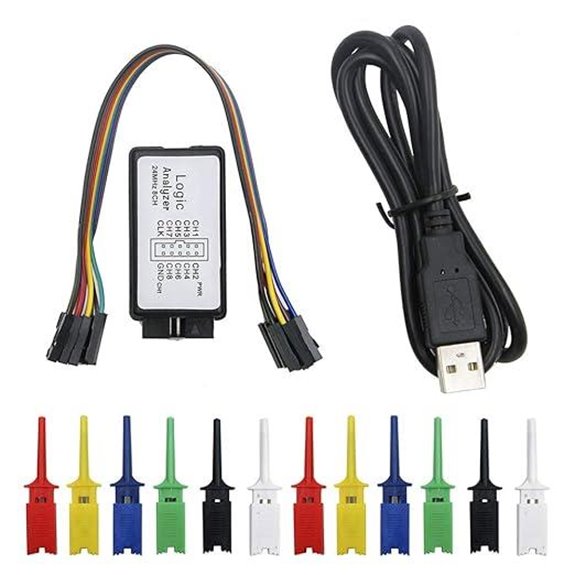

USB Logic Analyzer Device Set with 8 Channels and 24MHz Sampling Rate
This USB logic analyzer stands out for its simplicity and compatibility with popular software like Saleae Logic and PulseView, making it an accessible choice for those starting with digital debugging. Its 8 channels and 24MHz sampling rate are sufficient for analyzing UART, SPI, and IIC signals, but it’s limited to digital signals only, which can be a drawback compared to multi-purpose models like the Saleae Logic Pro 16. While it offers versatility in protocol support, it assumes users are familiar with logic analyzers, which could be intimidating for beginners. For hobbyists or small development projects, this set balances affordability with functional capability.
Pros:- Supports multiple communication protocols for versatile debugging
- Compatible with popular logic analysis software
- High sampling rate allows detailed signal analysis
Cons:- Limited to digital signals only, restricting scope
- Requires familiarity with logic analyzers for effective use
Best for: Beginners or hobbyists seeking an affordable, straightforward digital logic analyzer for common protocols.
Not ideal for: Advanced developers needing high-speed, multi-purpose analysis or analog signal capture, as this device is limited to digital signals at 24MHz.
- Sampling Rate:24 MHz
- Channels:8
- Voltage Range:0V to 5.5V
- Supported Protocols:UART, SPI, IIC
Our verdict“This device is well-suited for those new to digital debugging or working on small projects, but less ideal for complex, multi-signal analysis.”

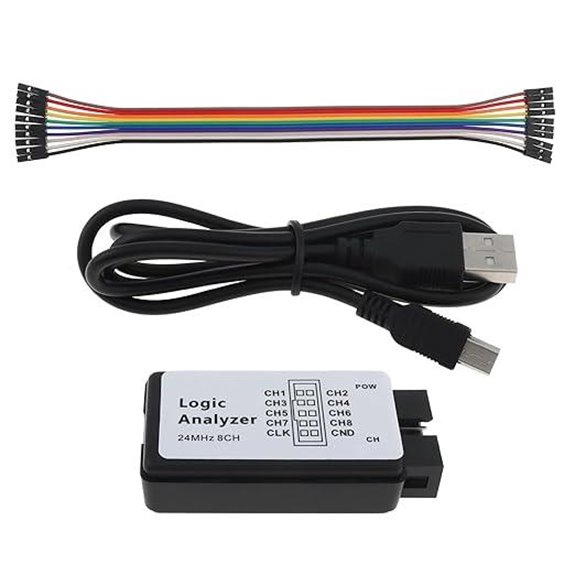

HiLetgo USB Logic Analyzer Device with EMI Ferrite Ring and USB Cable, 24MHz, 8 Channels
The HiLetgo USB logic analyzer offers 8 channels and a 24MHz sampling rate, comparable to the previous model but adding an EMI ferrite ring to reduce noise, which can improve signal clarity in noisy environments. Its wide input voltage range (-0.5V to 5.25V) makes it adaptable to various devices, but the product description lacks specific details about software compatibility and advanced features, which can leave users uncertain about integration. Compared with the Saleae Logic 8, this device emphasizes noise reduction, yet it falls short in software clarity and protocol support specifics, making it better suited for users who prioritize noise filtering over advanced analysis features.
Pros:- High sampling rate of 24MHz for accurate signal capture
- Wide input voltage range for various devices
- Includes EMI ferrite ring to reduce noise
Cons:- Unclear software compatibility information
- Lacks detailed protocol support or advanced features
Best for: Electronics hobbyists working in electrically noisy environments needing basic protocol analysis.
Not ideal for: Users requiring detailed protocol decoding or comprehensive software support, as those aspects are not clearly detailed here.
- Sampling Rate:up to 24MHz
- Channels:8
- Input Voltage Range:-0.5V to 5.25V
- Input Low Voltage:-0.5V to 0.8V
- Input High Voltage:2.0V to 5.25V
- Input Impedance:1MΩ || 10pF
Our verdict“This analyzer is suitable for noise-sensitive, basic debugging tasks but may disappoint users needing detailed analysis capabilities.”

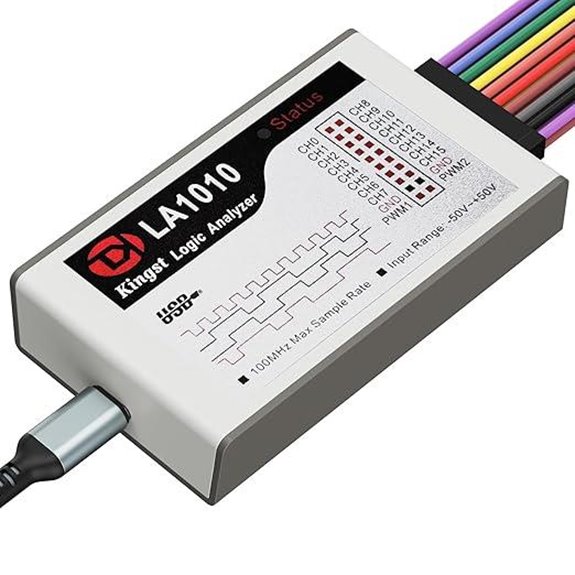

LA1010 USB Logic Analyzer 16 Input Channels 100MHz with PC Software Support for Windows, Mac OS, Linux
The LA1010 provides 16 channels and a 100MHz sampling rate, making it a powerful choice for real-time digital signal visualization across multiple platforms, including Windows, macOS, and Linux. Its broad OS support makes it ideal for embedded systems development, especially when working in multi-OS environments. However, it offers limited details about its physical design or additional hardware features, which could be a concern for users needing portability or extensive accessory support. Compared with the Saleae Logic Pro 16, the LA1010 emphasizes multi-platform compatibility and higher sampling speed, but it might lack some protocol decoding sophistication or user-friendly software interface.
Pros:- Supports multiple communication protocols for versatile debugging
- Cross-platform compatibility across major OSes
- High 100MHz sampling rate for detailed signal analysis
Cons:- Limited info on software features and hardware accessories
- No mention of portable form factor or battery operation
Best for: Embedded systems developers and engineers working across Windows, Mac, and Linux environments needing high-speed, multi-channel analysis.
Not ideal for: Beginners or hobbyists who prefer plug-and-play solutions with rich protocol decoding, as detailed software features are less emphasized.
- Channels:16
- Sampling Rate:100MHz
- Supported Protocols:I2C, SPI, UART, CAN, etc.
- Operating Systems:Windows 10/11, macOS 10.12+, Linux
Our verdict“Ideal for embedded development requiring cross-platform support and high-speed, multi-channel analysis, but less suited for casual or beginner users.”
Saleae 8-Channel Logic Analyzer (Red)
The Saleae Logic 8 offers 8 channels and digital sample rates up to 500 MS/s, making it one of the fastest portable analyzers available. Its high-speed capture enables precise decoding of fast signals, outperforming the 24MHz devices in speed but with fewer channels. This device excels for detailed protocol analysis where timing accuracy is critical, such as high-speed SPI or I2C signals. Its portability and cross-platform support make it a go-to for field engineers and advanced hobbyists. The main tradeoff involves its limited number of channels compared to larger models like the Logic Pro 16, which might restrict simultaneous multi-protocol analysis in complex projects.
Pros:- Extremely high digital sampling rate for precise timing analysis
- Portable and easy to connect across platforms
- Supports complex, high-speed protocol decoding
Cons:- Limited to 8 channels, less suited for multi-signal projects
- Requires significant PC memory for large data sets
Best for: Advanced users needing high-speed, detailed protocol decoding in portable form factors.
Not ideal for: Beginners or those requiring analysis of many signals simultaneously, as its 8-channel limit might be restrictive.
- Inputs:8 Digital/Analog
- Digital sample rate:up to 500 MS/s
- Analog sample rate:up to 50 MS/s
- Digital samples:over 10 billion
- Connectivity:USB 3.0
Our verdict“This analyzer is best suited for professionals and advanced hobbyists focused on high-speed, single-device protocol decoding.”
Saleae Logic Pro 16 Red 16-Channel Logic Analyzer
The Saleae Logic Pro 16 expands capabilities significantly with 16 channels and supports decoding over 23 protocols, including SPI and I2C, making it a comprehensive tool for complex digital systems. Its high sampling rates—up to 500 MS/s for digital signals—capture fast communication with precision, and its ability to handle both digital and analog inputs broadens its application scope. Compared to the smaller Logic 8, the Logic Pro 16 is better suited for intricate projects involving multiple signals and protocols simultaneously. The main consideration is its dependence on PC memory for large data sets, and the necessity of a computer connection for operation, which can limit portability.
Pros:- Supports decoding of over 23 protocols for comprehensive analysis
- High digital and analog sampling rates for detailed signals
- Cross-platform compatibility with USB 3.0
Cons:- Large data storage depends heavily on PC memory
- Requires constant connection to a computer
Best for: Professional engineers or advanced developers managing complex multi-protocol embedded systems.
Not ideal for: Hobbyists or beginners seeking a budget-friendly, simple setup, as the device’s advanced features come with a higher learning curve and cost.
- Channels:16 digital/analog
- Digital Sample Rate:Up to 500 MS/s
- Analog Sample Rate:Up to 50 MS/s
- Protocol Support:SPI, I2C, and 23+ others
- Connectivity:USB 3.0
Our verdict“This device is perfect for complex debugging tasks involving multiple signals and protocols but less suited for portable or casual use.”

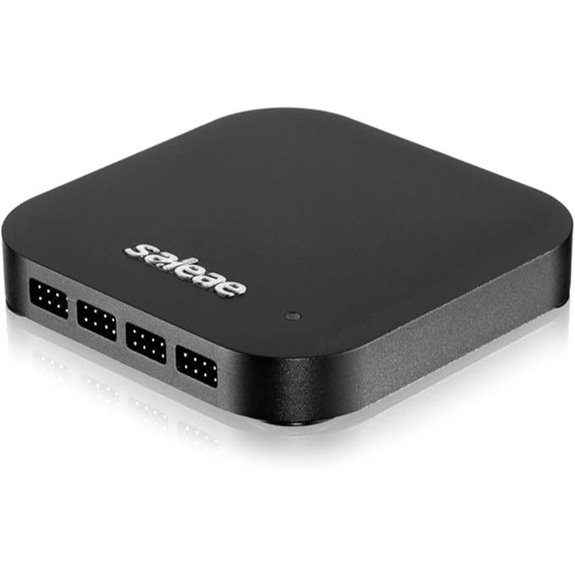

Saleae Logic Pro 16 (Black) – 16-Channel Logic Analyzer
The Saleae Logic Pro 16 stands out for its impressive combination of 16 channels and high sampling rates, making it ideal for capturing complex, fast signals across multiple protocols like SPI and I2C. Compared to the Saleae Logic Pro 8, it offers double the channels and a more extensive memory capacity, which is a clear advantage for detailed, multi-stream analysis. However, this increased capability comes with a tradeoff: it requires a USB 3.0 port to perform optimally, and its complexity may overwhelm beginners who prefer simpler setups. Its support for both digital and analog inputs at high sampling rates ensures precise timing analysis—perfect for advanced users who need detailed insights. Still, those on a tight budget or seeking a plug-and-play experience might find it less accessible due to its technical demands and higher price point.
Pros:- 16 channels for complex signal capture
- High digital sample rate up to 500 MS/s
- Supports decoding of multiple protocols like SPI and I2C
- Cross-platform compatibility (Windows, Mac, Linux)
Cons:- Requires USB 3.0 port for optimal performance
- May be complex for users new to logic analyzers
- Limited to digital and analog inputs only, no specialized interfaces
Best for: Engineers and developers needing comprehensive multi-protocol, multi-channel analysis with detailed signal resolution.
Not ideal for: Casual hobbyists or beginners who prefer an easier, less feature-rich device with straightforward operation.
- Inputs:16 Digital/Analog
- Sample Rate (Digital):up to 500 MS/s
- Sample Rate (Analog):up to 50 MS/s
- Memory Capacity:10 Billion+ digital samples, 500 Million+ analog samples
- Compatibility:Windows, Mac, Linux
Our verdict“This analyzer suits experienced professionals who need high-capacity, detailed multi-protocol analysis and are comfortable with technical complexity.”

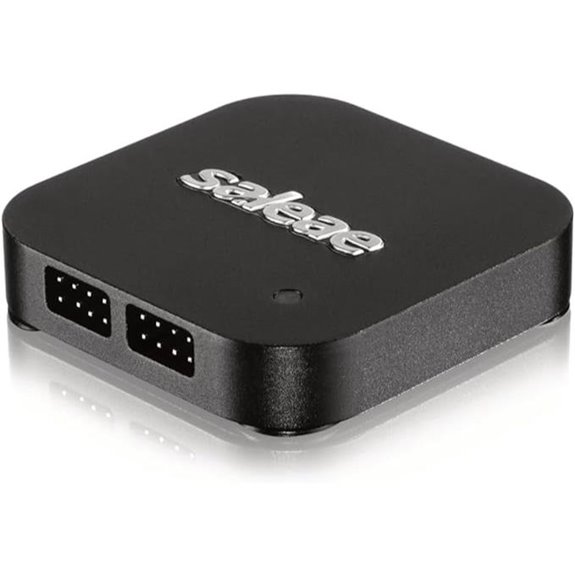

Saleae Logic Pro 8 – 8-Channel Logic Analyzer for Windows, Mac, Linux
The Saleae Logic Pro 8 offers a well-rounded package for users who need reliable 8-channel digital and analog analysis at high speeds, making it a solid choice for those who find the Logic Pro 16 too large or expensive. Its digital sampling rate of up to 500 MS/s and analog rate of 50 MS/s provide accurate timing for most standard debugging needs. Compared with the Logic Pro 16, it’s more affordable and easier to set up, but it sacrifices some capacity and flexibility, which could be limiting for complex projects. Its support for multiple protocols like SPI and I2C makes it versatile, yet the requirement for a USB 3.0 port remains the same—potentially a barrier for older systems. While it’s less feature-rich than the 16-channel model, it strikes a good balance for advanced hobbyists or small teams needing high-speed analysis without the extra channels.
Pros:- High-speed digital and analog sampling at 500 MS/s
- Supports multiple protocols like SPI and I2C
- Cross-platform compatibility (Windows, Mac, Linux)
- More affordable than the 16-channel counterpart
Cons:- Requires PC with USB 3.0 for full performance
- Limited to 8 channels, restricting complex multi-stream analysis
- Potentially costly for casual or infrequent use
Best for: Small engineering teams or advanced hobbyists seeking a capable yet less complex logic analyzer.
Not ideal for: Large-scale development labs or users needing extensive channel counts for complex systems.
- Inputs:8 Digital/Analog
- Digital Sample Rate:up to 500 MS/s
- Analog Sample Rate:up to 50 MS/s
- Memory Capacity:10+ billion digital samples, 500+ million analog samples
- Compatibility:Windows, Mac, Linux
Our verdict“This analyzer is ideal for serious hobbyists or small teams who need dependable high-speed data capture without the extra complexity of more channels.”
How We Picked
I evaluated these logic analyzers based on performance metrics such as sampling rate, channel count, and data transfer speed. Ease of use, including software interface and setup process, played a vital role, especially for users new to logic analyzers. Build quality and included accessories influenced long-term durability and value. Price was also a consideration, with an emphasis on balancing cost against feature set. Products were ranked by overall versatility, reliability, and how well they serve different user needs—from beginners to professionals.Factors to Consider When Choosing Logic Analyzers
Choosing the right logic analyzer involves understanding your specific requirements and balancing key factors to get the best value. Consider your project complexity, budget, and preferred software environment to narrow options. Being aware of potential pitfalls—like overspending on unnecessary speed or channel count—can help you avoid common mistakes. The following sections highlight critical factors that influence your decision beyond just raw specs.Performance and Sampling Rate
Sampling rate determines how accurately the analyzer captures fast digital signals. Higher speeds, such as 400MHz, allow you to analyze high-frequency signals without missing edges, which is vital for complex or high-speed designs. However, increased sampling speeds often come with higher costs and may require more powerful computers to process data smoothly. For most hobbyist projects, 24-100MHz is sufficient, but professionals working with high-speed signals should prioritize models with at least 200MHz or more.
Channel Count and Expandability
The number of channels determines how many signals you can monitor simultaneously. Systems with multiple buses or parallel data paths benefit from higher channel counts, typically 16 or more. However, more channels often mean higher prices and larger device form factors. Consider whether you need all channels at once or if future expandability is worth the extra investment. Some analyzers also support stacking or adding modules, which can be a flexible way to grow your setup.
Software Compatibility and Usability
The effectiveness of a logic analyzer hinges on intuitive, reliable software. Saleae’s products are often praised for their user-friendly interface, making them accessible for beginners. Other tools might require more technical setup or have less polished UIs, which can slow down troubleshooting. Compatibility across operating systems—Windows, Mac, Linux—is also a key factor, especially if you work across different platforms. Well-supported, frequently updated software reduces frustration and improves your overall experience.
Build Quality and Accessories
Durability and ease of connection matter for long-term use, especially in busy lab environments. A robust construction with shielded cables and quality connectors minimizes signal noise and interference. Accessories such as probes, adapters, or software licenses can add value but also increase initial costs. Carefully assess what’s included to ensure the device meets your project needs without requiring costly additions later.
Price and Overall Value
While high-end analyzers offer advanced features, they also come with steep price tags. Budget models can be perfectly adequate for basic debugging, but may lack speed or channel capacity needed for complex tasks. Consider how often you’ll use the tool and whether investing in a premium model provides significant efficiency gains. For occasional or hobbyist use, a mid-range device often strikes the best balance between cost and capability, whereas professionals should prioritize performance and software support.
Frequently Asked Questions
Can I use a low-cost logic analyzer for high-speed signals?
Low-cost analyzers with sampling rates around 24-50MHz may struggle with high-speed signals above 100MHz, risking missed data edges and inaccurate analysis. If your work involves signals in the hundreds of megahertz range, investing in a higher-speed device—such as those with 200MHz or more—is advisable. For slower or lower-frequency signals, budget options can be sufficient, but always check the specified maximum sampling rate to match your project requirements.
Is software compatibility a big concern when choosing a logic analyzer?
Yes, software usability and compatibility significantly impact the overall experience. A well-designed, stable interface can make debugging faster and less frustrating. Many users prefer analyzers that support multiple operating systems, especially if they work across Windows, Mac, and Linux. Additionally, frequent updates and good customer support can extend the device’s usefulness, especially for complex or ongoing projects.
Should I prioritize higher sampling speed over channel count?
It depends on your specific needs. Higher sampling speeds are essential for capturing fast digital signals accurately, but a sufficient number of channels is equally important if you’re debugging complex systems with multiple data lines. Balancing these features is key; for example, choosing a device with moderate speed but more channels might be better for multi-bus systems. Consider your project’s signal frequency and complexity when making this choice.
How important are accessories and cable quality?
Accessories like probes and quality cables can significantly influence measurement accuracy and signal integrity. Poorly shielded or cheap cables introduce noise, leading to unreliable data. Investing in analyzers that come with robust accessories or compatible, high-quality add-ons can save time and prevent troubleshooting headaches. Keep an eye on included accessories to assess the overall value of the package.
Is it worth paying extra for a professional-grade logic analyzer?
For professional or high-speed digital debugging, paying for a premium analyzer with higher sampling rates, more channels, and advanced software features can be worthwhile. These devices typically offer better build quality, support, and expandability, which can translate into faster development cycles and more reliable data. For hobbyists or infrequent use, however, mid-range or budget models often provide ample capability at a lower cost.
Conclusion
For casual hobbyists or those new to digital debugging, a budget-friendly model like the LONELY BINARY Logic Analyzer provides essential features without overwhelming complexity. Professionals working on complex, high-speed designs will benefit most from the Saleae Logic Pro 16, thanks to its high channel count and advanced software. If you seek a balance between price and features, the DSLogic Plus offers excellent sampling speed at a reasonable cost. Ultimately, your choice should align with your project scope—whether you’re after affordability, professional performance, or ease of use.
