Digital storage oscilloscopes are essential tools for capturing, analyzing, and troubleshooting electronic signals with precision. The best options vary from high-performance models suited for advanced diagnostics to more affordable, entry-level units for beginners. Key tradeoffs include bandwidth versus price, sample rate versus complexity, and additional features like waveform generators or connectivity. The Rigol DS1054Z stands out as the overall best pick thanks to its balance of performance and value, while the RIGOL DHO802 offers higher bandwidth for more demanding tasks. Continue reading to see how these models compare and find the best fit for your needs.
Complete the kit
Key Takeaways
- Higher bandwidth models generally provide more detailed signal analysis but come at a higher cost.
- Sample rate and memory depth are critical for capturing fast or complex signals accurately.
- Connectivity options like LAN, USB, and HDMI enhance remote control and data sharing capabilities.
- Multi-function units combining oscilloscopes with multimeters or signal generators offer better value for specific tasks.
- Entry-level models are suitable for beginners but may lack advanced features needed for professional work.
| digital storage oscilloscope | Channels | Bandwidth | Display | Sampling Rate |
|---|---|---|---|---|
| Rigol Digital Oscilloscope DS1 | 4 | — | 7" 800×480 Intensity Display | — |
| RIGOL Digital Oscilloscope DHO | 2 + EXT Trigger | — | 7-inch HD Touchscreen | 1.25 GSa/s |
| 3 in 1 Handheld Oscilloscope A | 2 | 50 MHz | — | 280MSa/s |
| HANMATEK 110MHz Bandwidth Digi | 2 | 110 MHz | 7-inch TFT LCD | 500 MS/s |
| Hantek DSO5102P USB Storage Os | 2 | 100 MHz | 7-inch TFT LCD | — |
| FNIRSI DSO152 Handheld Oscillo | — | 200 KHz | 2.8-inch HD LCD (320×240) | 2.5 MS/s |
| Hantek DSO2D15 Digital Storage | 2 | 150 MHz | — | — |
| FNIRSI DPOS350P 4-in-1 350MHz | 2 | 350 MHz | 7-inch Touch Screen | 1 GSa/s |
| Siglent Technologies SDS1202X- | 2 | 200 MHz | — | 1 GSa/s |
| Hantek DSO2D15 Digital Storage | 2 | 150 MHz | 7-inch TFT LCD, 800×480 | 1 GSa/s |
| FNIRSI 2C53T 3-in-1 50MHz 2-Ch | — | 50 MHz | 2.8 inch LCD | 250 MSa/s |
| Hantek DSO2C10 Digital Storage | 2 | 100 MHz | — | — |
| HANMATEK 2-in-1 Digital Storag | — | 110 MHz | 7-inch 800×480 LCD | 2 × 500 MSa/s |
| RIGOL Digital Oscilloscope DHO | 4 | — | 7-inch Touchscreen | 1.25 GSa/s |
More Details on Our Top Picks
Rigol Digital Oscilloscope DS1054Z 50 MHz 4-Ch 1 GSa/s 24 Mpts UltraVision Display
The Rigol DS1054Z stands out as a versatile benchtop oscilloscope that balances features and affordability. Its 50 MHz bandwidth might seem limited compared to the 110 MHz HANMATEK, but its four channels and deep 24 Mpts memory enable detailed waveform analysis and complex troubleshooting. The UltraVision technology improves the visibility of intermittent signals, making it ideal for debugging tricky circuits. Compared to the Hantek DSO5102P, it offers more connectivity options and serial decoding, but its interface can be daunting for beginners. This scope suits electronics hobbyists and students who need reliable performance without the premium price of higher bandwidth models. However, those working on RF signals above 50 MHz should consider higher bandwidth options. Pros: Deep memory for capturing detailed signals; Multi-protocol decoding; Multiple connectivity options; High sample rate for accurate waveform rendering. Cons: Bandwidth may be limiting for RF professionals; Interface complexity can hinder quick operation.
Verdict: This scope makes the most sense for users seeking a feature-rich, budget-friendly benchtop instrument for general electronics troubleshooting.- Frequency:50 MHz
- Channels:4
- Sample Rate:1 GSa/s
- Memory Depth:24 Mpts
- Display:7″ 800×480 Intensity Display
- Capture Rate:30,000 wfms/s

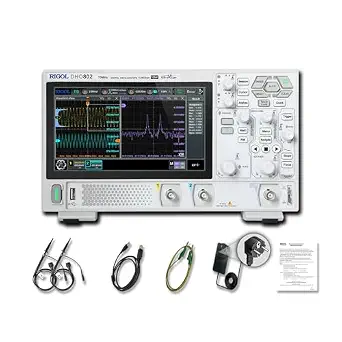

RIGOL Digital Oscilloscope DHO802 70 MHz 2-Ch + EXT Trig, 1.25 GSa/s, 12-bit, 25 Mpts, 7″ Touchscreen, LAN/USB/HDMI, Web Control, SCPI
The RIGOL DHO802 offers a step up in resolution and connectivity, with a 70 MHz bandwidth and 12-bit data depth that provide detailed, high-quality signals. Its touchscreen interface simplifies operation compared to the more complex DS1054Z, making it accessible for advanced troubleshooting on a variety of electronics. The extensive connectivity options, including LAN, USB-C, and HDMI, facilitate remote control and data sharing. While it doesn’t match the 110 MHz bandwidth of the HANMATEK, its superior resolution and triggering capabilities make it a solid choice for technicians needing precise measurements and versatile protocol decoding, such as CAN or RS232 signals. For hobbyists or those working on RF projects, the limited bandwidth might be restrictive. Pros: High resolution and advanced triggering; Easy-to-use touchscreen; Multiple connectivity options; Suitable for detailed protocol decoding. Cons: Bandwidth limited to 70 MHz for RF applications; Slightly less feature-rich compared to larger benchtop models.
Verdict: This scope is ideal for professionals seeking a portable, high-resolution instrument for detailed troubleshooting and protocol analysis.- Frequency:70 MHz
- Channels:2 + EXT Trigger
- Sampling Rate:1.25 GSa/s
- Resolution:12-bit
- Memory Depth:25 Mpts
- Display:7-inch HD Touchscreen
Our verdict“Best for Professional Troubleshooting — a strong pick in this lineup.”
3 in 1 Handheld Oscilloscope Automotive Dual Channel 50MHz with Digital Multimeter and Signal Generator
This handheld device combines oscilloscopes, multimeters, and signal generators into one compact unit, making it immensely useful for field technicians and hobbyists. Its 50 MHz bandwidth and 280MSa/s sampling rate capture signals with decent clarity, while the integrated waveform outputs facilitate testing and troubleshooting on the go. The device’s versatility surpasses traditional single-function scopes like the Hantek DSO5102P, especially for automotive or portable electronics work. However, the complex feature set can be overwhelming without thorough reading of the manual, and its 50 MHz bandwidth limits high-frequency applications. The Type-C port adds convenience but also means higher power consumption. Pros: Multi-function device saves space and cost; High sampling rate; Synchronous waveform display; Compact and portable. Cons: Steep learning curve for new users; Limited bandwidth restricts high-frequency testing.
Verdict: This pick caters best to mobile technicians and hobbyists needing a multifunctional testing tool in the field.- Channels:2
- Bandwidth:50 MHz
- Sampling Rate:280MSa/s
- Storage Depth:128K
- Display Modes:Sine, Square, Triangle
- Power Supply:Type-C
HANMATEK 110MHz Bandwidth Digital Oscilloscope with 2 Channels and 7-inch TFT-LCD Display
The HANMATEK 110MHz scope delivers higher bandwidth and a larger display for detailed electronic analysis. Its 500 MS/s sampling rate ensures accurate waveform capture, which makes it a strong choice for electronics professionals and advanced hobbyists. The 7-inch color TFT display enhances visibility, and its multiple measurement functions offer a comprehensive testing experience. Unlike the smaller, lower-bandwidth scopes, this device supports more precise signal analysis and secondary development for communication protocols. However, its reliance on DC power reduces portability, and the interface may require a learning curve for newcomers. This scope is best suited for bench use in laboratories or workshops rather than quick field repairs. Pros: Higher bandwidth and sampling rate; Large, clear display; Multiple measurement functions; Supports protocol development. Cons: Not portable due to power requirements; Slightly complex interface for beginners.
Verdict: This scope is perfect for users needing detailed, high-bandwidth signal analysis in a stable environment.- Bandwidth:110 MHz
- Sampling Rate:500 MS/s
- Display:7-inch TFT LCD
- Channels:2
- Waveform Storage:Not less than 10K points
- Measurement Functions:30 automatic

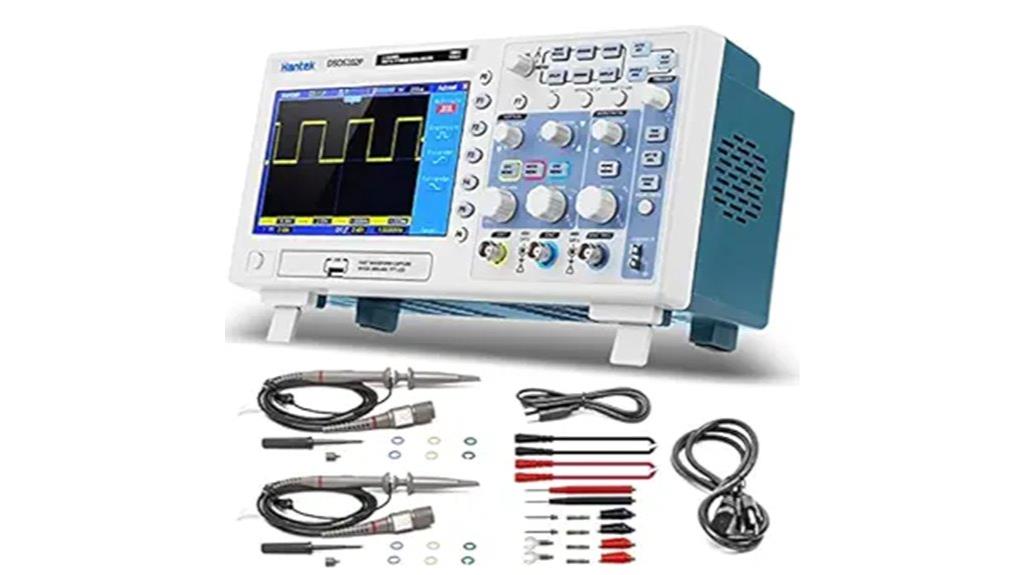

Hantek DSO5102P USB Storage Oscilloscope, 2 Channels, 100MHz
The Hantek DSO5102P offers a balanced entry point into digital storage oscilloscopes with its 100 MHz bandwidth and 2 channels. Its 7-inch TFT display provides clear waveform visualization, and USB storage support allows archiving over 1,000 waveforms, making it suitable for basic industrial or educational use. Compared to the lower bandwidth FNIRSI DSO152, this model provides more channels and higher frequency range, but it lacks advanced features like deep memory or digital triggers found in more expensive scopes like the Rigol DS1054Z. It’s a good choice for users who need a straightforward, affordable scope for routine measurements but not for high-frequency RF applications or complex protocol decoding. Pros: Large, bright display; USB storage support; Capable of measuring multiple electrical parameters; Simple interface. Cons: Only 2 channels limit complex measurements; No advanced triggering or deep memory; May lack the precision required for high-frequency or high-speed digital testing.
Verdict: This scope is best for hobbyists or students needing a reliable, affordable tool for basic signals at up to 100 MHz.- Channels:2
- Bandwidth:100 MHz
- Display:7-inch TFT LCD
- Resolution:800 x 480
- Storage:USB support
- Waveforms Storage:Over 1000 waveforms
FNIRSI DSO152 Handheld Oscilloscope 200kHz Bandwidth, 2.5MS/s Sampling Rate
The FNIRSI DSO152 stands out for its compact, lightweight design, making it ideal for quick field tests and troubleshooting where portability is key. Compared with larger benchtop models like the Siglent SDS1202X-E, it sacrifices bandwidth and detailed analysis capabilities for ease of use on the go. Its 200 KHz bandwidth limits its usefulness for high-frequency work, but for basic signal observation, the auto measurement feature and rechargeable battery provide convenience. The small display, however, can make detailed waveform analysis more difficult, especially in complex signals. Still, this model’s high voltage measurement capability up to 800 VPP is a strong advantage for high-voltage environments.
Pros:- Lightweight and easy to carry around for field use
- Quick auto measurement feature speeds up testing
- High voltage measurement up to 800 VPP
Cons:- Limited bandwidth restricts high-frequency applications
- Battery life of around 4 hours may be insufficient for extended tasks
- Small screen size hampers detailed waveform inspection
Best for: Technicians and hobbyists needing portable, quick diagnostics in the field.
Not ideal for: Engineers working on high-frequency RF signals or detailed lab analysis, due to limited bandwidth and small display.
- Bandwidth:200 KHz
- Sampling Rate:2.5 MS/s
- Display:2.8-inch HD LCD (320×240)
- Voltage Measurement:up to 800 VPP
- Battery:1000 mAh, up to 4 hours
- Interface:Type-C
Our verdict“A practical choice for field technicians and hobbyists who prioritize portability over high-frequency performance.”

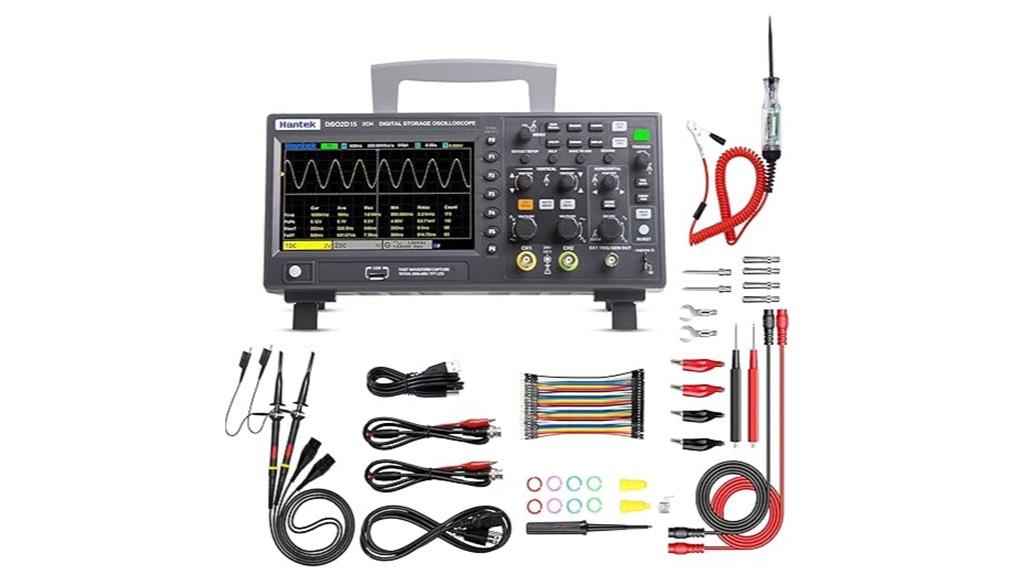

Hantek DSO2D15 Digital Storage Oscilloscope, 150MHz Bandwidth, 2 Channels, 1GSa/s, 8M Memory, Waveform Generator, High Voltage Probe
The Hantek DSO2D15 offers a compelling balance between features and affordability, especially for users involved in communication, aerospace, or embedded systems. Its 150 MHz bandwidth, while lower than the Siglent SDS1202X-E, still covers many common signal analysis needs and supports arbitrary waveform output and multiple trigger modes, unlike the simpler FNIRSI DSO152. The inclusion of a high voltage probe and 8M memory makes it suitable for more complex testing scenarios. However, its weight of over 6 pounds and less portable design make it less ideal for fieldwork. Compared with the FNIRSI DSO152, it provides deeper analysis capabilities but at the cost of portability and simplicity.
Pros:- Supports arbitrary waveform output and multiple trigger modes
- Includes high voltage probe for diverse testing needs
- Good memory depth for detailed waveform capture
Cons:- Limited to 150MHz bandwidth, less suitable for very high-frequency signals
- Relatively heavy, reducing portability
Best for: Engineers and technicians who need a versatile, feature-rich scope for bench use across multiple disciplines.
Not ideal for: Field technicians requiring ultra-portable devices, due to its weight and size.
- Bandwidth:150 MHz
- Channels:2
- Sample Rate:1 GSa/s
- Memory:8M
- Waveform Generator:Yes
- High Voltage Probe:Included
Our verdict“This scope is well-suited for professionals requiring versatile features and deep analysis, but not for those prioritizing portability.”
FNIRSI DPOS350P 4-in-1 350MHz Digital Oscilloscope, 2 Channel, 7″ Touch Screen, USB-C Rechargeable
The FNIRSI DPOS350P combines multiple functions—oscilloscope, spectrum analyzer, frequency response, and signal generator—in a single portable device, making it an excellent choice for field engineers and lab technicians who need versatility. Its 350 MHz bandwidth and 1 GSa/s sampling rate surpass many handheld scopes, providing detailed insights into complex signals. The large 7-inch touchscreen simplifies navigation and data review, and its rechargeable battery supports extended use. However, the device’s extensive features can lead to a steep learning curve for beginners, and the 2-channel limitation may restrict multi-signal analysis in complex projects. Compared to the simpler FNIRSI DSO152, this model offers much broader capabilities but requires more familiarity with advanced features.
Pros:- Versatile 4-in-1 functionality including spectrum and frequency analysis
- Large, touch-sensitive 7-inch display for easy operation
- High bandwidth and sampling rate for detailed analysis
Cons:- Complex interface may be challenging for new users
- Limited to 2 channels, which might be insufficient for some applications
Best for: Advanced field engineers and technicians seeking a portable, multi-function test tool.
Not ideal for: Beginners or hobbyists who only need basic testing, due to complex features and higher price point.
- Bandwidth:350 MHz
- Sampling Rate:1 GSa/s
- Channels:2
- Display:7-inch Touch Screen
- Battery:8000 mAh
- Charging:USB-C
Our verdict“A comprehensive portable scope ideal for professionals who need multiple functions in a compact form, but not suited for beginners.”
Siglent Technologies SDS1202X-E 200 MHz Digital Oscilloscope, 2 Channels
The Siglent SDS1202X-E sets itself apart with a 200 MHz bandwidth and a high sampling rate of 1 GSa/s, making it a reliable choice for detailed waveform capture. Its 14 Mpts record length supports thorough analysis, and the support for serial protocol decoding—such as I2C, SPI, UART—adds significant versatility for embedded development and troubleshooting. Compared with the Hantek DSO2D15, it offers a more refined interface and more advanced features, although it lacks some of the broader functionality like spectrum analysis. Its straightforward design and powerful features make it suitable for professional labs and serious hobbyists, but it might be overkill for casual users.
Pros:- High sampling rate enhances measurement accuracy
- Supports decoding multiple serial protocols
- Large record length enables detailed waveform analysis
Cons:- Limited to 200 MHz bandwidth, not for extremely high-frequency signals
- No advanced zoom or deep memory features
Best for: Electronics engineers focused on protocol decoding and high-precision signal measurements.
Not ideal for: Beginners or those needing ultra-portable scopes, as it is best suited for bench use with a more complex interface.
- Bandwidth:200 MHz
- Channels:2
- Sampling Rate:1 GSa/s
- Record Length:14 Mpts
Our verdict“Ideal for professionals needing accurate, protocol-aware analysis within a 200 MHz bandwidth scope.”
Hantek DSO2D15 Digital Storage Oscilloscope, 150MHz, 1GSa/s, 2 Channels
The Hantek DSO2D15 offers a well-rounded package with 150 MHz bandwidth and a 1 GSa/s sampling rate, suitable for many general purpose testing scenarios. Its 7-inch color display and built-in waveform generator support multiple protocols and data storage, making it versatile for both lab and field applications. The device’s 8M memory depth allows capturing longer waveforms, and USB storage options provide easy data transfer. Compared with the FNIRSI DSO152, it provides greater depth and analysis features, but its interface can be complex for less experienced users. For those needing a flexible, multi-feature scope with protocol support, this model strikes a good balance, though it doesn’t excel at ultra-high-frequency measurements.
Pros:- High bandwidth and sampling rate for accurate measurements
- Integrated waveform generator and protocol analysis
- Supports USB storage and remote control
Cons:- Complex interface may require a learning curve
- Limited to 150 MHz bandwidth, not for very high-frequency signals
Best for: Technical professionals requiring a multi-purpose scope with waveform generation and protocol support.
Not ideal for: Casual users or hobbyists who prefer simpler, more portable devices without advanced features.
- Bandwidth:150 MHz
- Memory Depth:8M
- Sampling Rate:1 GSa/s
- Channels:2
- Display:7-inch TFT LCD, 800×480
- Storage Capacity:Over 1000 waveforms
Our verdict“Suitable for versatile testing environments needing a balance of features and portability, but not for ultra-high-frequency work.”

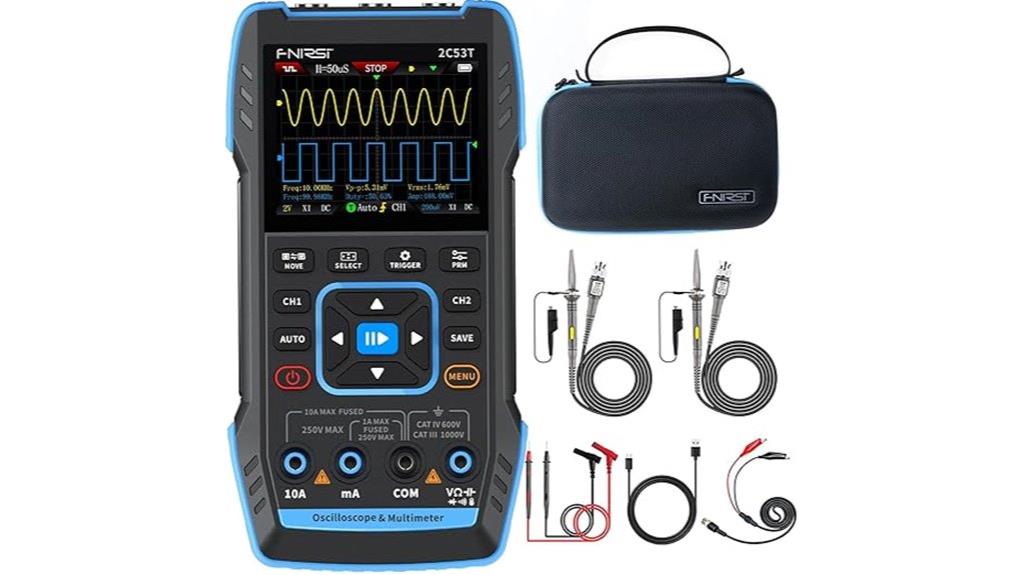

FNIRSI 2C53T 3-in-1 50MHz 2-Channel Oscilloscope, Multimeter, and Signal Generator
The FNIRSI 2C53T stands out for combining three essential testing tools into one portable device, making it ideal for electronics hobbyists and students who need versatility without sacrificing convenience. Compared to the Hantek DSO2C10, which offers higher bandwidth at 100MHz, this model’s 50MHz limit might restrict more advanced RF or high-speed digital work, but it excels in providing waveform storage and a multimeter in a single package. Its 250 MSa/s sampling rate ensures decent measurement accuracy for most low- to mid-frequency applications, while its small 2.8-inch LCD can be a challenge for detailed viewing during complex tests. The inclusion of waveform export via Type-C supports data sharing, a useful feature often absent in simpler handhelds. However, the battery life of around 6 hours may be insufficient for extended field sessions, and the limited display size can hinder detailed analysis.
Pros:- Combines oscilloscope, multimeter, and signal generator in one portable tool
- Supports waveform storage and export via Type-C for easy data management
- High sampling rate (250 MSa/s) and accurate measurements for low- to mid-frequency signals
Cons:- Limited to 50 MHz bandwidth, not suitable for high-frequency RF or digital high-speed testing
- Battery life up to 6 hours, which may be short for long fieldwork
- Small 2.8-inch LCD can be difficult for detailed waveform viewing
Best for: Electronics students, DIY hobbyists, and repair technicians needing an all-in-one testing device for basic troubleshooting.
Not ideal for: Professionals working on high-frequency RF circuits or requiring high-definition visuals, as 50 MHz may be too limiting and the display too small.
- Bandwidth:50 MHz
- Sampling Rate:250 MSa/s
- Record Depth:1 Kpts
- Max Voltage:400 V
- Display:2.8 inch LCD
- Battery Capacity:3000 mAh
Our verdict“This device suits hobbyists and students seeking versatile, portable testing with basic high-frequency capabilities.”

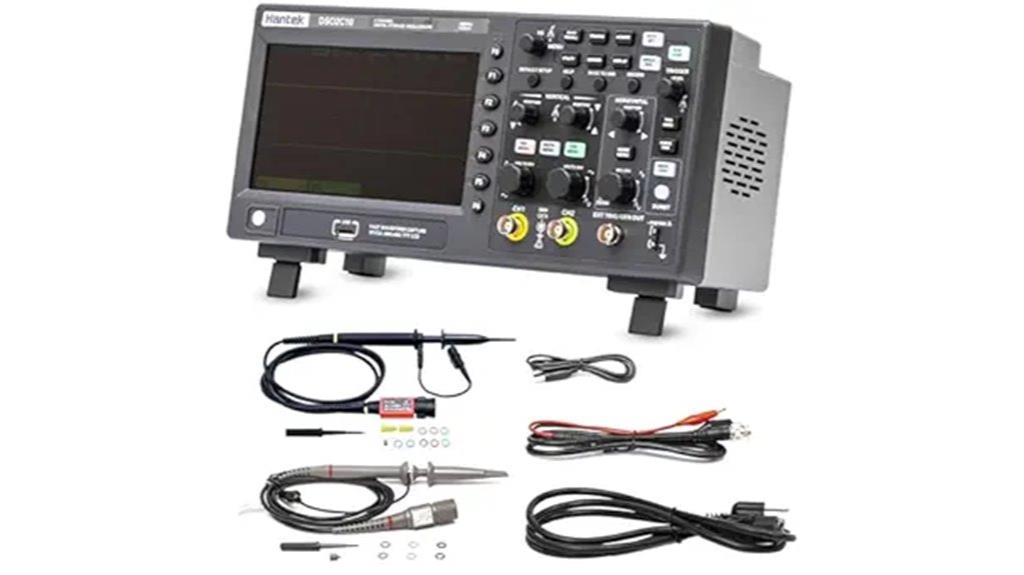

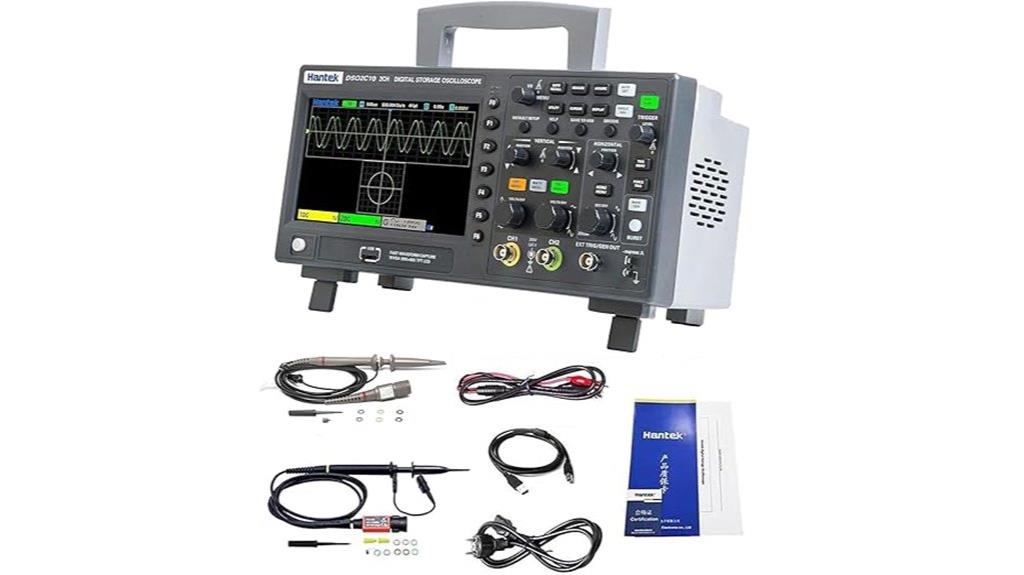

Hantek DSO2C10 Digital Storage Oscilloscope 100MHz Bandwidth 2CH
The Hantek DSO2C10 provides a solid entry point for those needing a 100MHz bandwidth with digital storage capabilities, making it suitable for education and basic professional work. Compared to the HANMATEK 110MHz scope, it offers slightly lower bandwidth but often at a more attractive price point, making it a compelling choice for cost-conscious buyers. Its 1 GSa/s sampling rate and 8M memory depth enable decent signal detail, especially useful for communication and embedded system testing. However, the scope lacks advanced user interface features like a touchscreen or built-in connectivity, which some competitors like the RIGOL DHO804 include. Its straightforward design makes it easy to operate but may feel limited for users needing more modern features or higher bandwidths for high-frequency signals.
Pros:- Supports arbitrary waveform output and multiple trigger modes
- Decodes serial protocols, suitable for communication testing
- Cost-effective with solid basic features for professional and educational use
Cons:- Limited to 100 MHz bandwidth, restricting higher-frequency applications
- No touchscreen or advanced connectivity features
- Lacks modern interface options found in newer models
Best for: Educational labs and entry-level technicians looking for a reliable, affordable 100MHz oscilloscope for general testing tasks.
Not ideal for: High-frequency RF engineers or advanced digital designers who require bandwidth beyond 100MHz or modern UI features.
- Bandwidth:100 MHz
- Channels:2
- Sample Rate:1 GSa/s
- Memory Depth:8 M
- Weight:5.95 Pounds
Our verdict“This scope offers reliable performance for budget-conscious users focused on communication and embedded system testing at 100MHz.”
HANMATEK 2-in-1 Digital Storage Oscilloscope with Built-in Waveform Generator, 110MHz Bandwidth
The HANMATEK 2-in-1 excels in portability and integrated testing functions, making it ideal for field engineers, educators, and lab technicians who value a compact yet capable instrument. Its 110MHz bandwidth and 500MSa/s sampling rate support detailed analysis of analog and digital signals, while the built-in waveform generator expands testing versatility with signals up to 10MHz. Compared to the FNIRSI 2C53T, which offers multiple functions but with a smaller display, the HANMATEK provides a larger 7-inch LCD and a more robust feature set, though its generator’s 10MHz limit might restrict some RF or high-speed digital testing. The device’s lightweight design (1.1 kg) supports easy transport, but its complex features could require a learning curve for those unfamiliar with advanced oscilloscopes.
Pros:- High bandwidth (110MHz) with dual channels and FFT analysis
- Built-in waveform generator supports multiple waveforms up to 10MHz
- Lightweight, portable design with a large 7-inch high-res display
Cons:- Generator output limited to 10MHz, less suitable for RF testing
- Complex feature set may require learning curve
- No mention of battery life or standalone power options
Best for: Field engineers, educators, and technicians needing a portable, multi-function scope with waveform generation capabilities.
Not ideal for: High-frequency RF developers or users needing more than 10MHz generator output, as the built-in generator is somewhat limited for high-speed testing.
- Bandwidth:110 MHz
- Sampling Rate:2 × 500 MSa/s
- Display:7-inch 800×480 LCD
- Waveform Generator Output:Up to 10 MHz
- Weight:1.1 kg
- Connectivity:USB 2.0
Our verdict“This scope is perfect for portable field testing and educational demonstrations where integrated waveform generation and high resolution are valued.”
RIGOL Digital Oscilloscope DHO804 70 MHz 4-Ch 1.25 GSa/s 12-bit 25 Mpts with 7″ Touchscreen, LAN/USB/HDMI, Web Control, SCPI
The RIGOL DHO804 shines in its combination of high sampling rate, four channels, and advanced connectivity, making it ideal for professional engineers and advanced technicians who need detailed, multi-channel analysis. Its 70MHz bandwidth might seem limiting compared to higher-end models like the HANMATEK or FNIRSI, but the 1.25 GSa/s sampling rate and 12-bit resolution ensure precise digital representations of complex signals. The large 7-inch touchscreen and multiple interfaces, including LAN, USB, HDMI, and Web Control, give it a modern, user-friendly edge, especially over models like the Hantek DSO2C10 that lack such features. The scope’s broad functionality comes with a learning curve, but it offers a comprehensive platform for protocol decoding, deep analysis, and remote operation, suited for lab environments and field service.
Pros:- High sampling rate (1.25 GSa/s) with 12-bit resolution for detailed signals
- Four channels for simultaneous multi-signal analysis
- Large 7-inch touchscreen with multiple connectivity options including LAN, USB, HDMI
Cons:- Limited to 70 MHz bandwidth, not ideal for very high-frequency signals
- Complex feature set may require training to master
- Price point may be higher than basic models for casual users
Best for: Professional engineers needing detailed multi-channel analysis, high data resolution, and extensive connectivity for complex testing scenarios.
Not ideal for: Beginners or those requiring a simple, standalone scope without advanced features, as its interface and capabilities may be overwhelming.
- Frequency:70 MHz
- Channels:4
- Sampling Rate:1.25 GSa/s
- Vertical Resolution:12-bit
- Memory Depth:25 Mpts
- Display:7-inch Touchscreen
Our verdict“This scope is tailored for professionals who need high-resolution, multi-channel data with robust connectivity and control features.”
How We Picked
Our evaluation focused on core performance criteria including bandwidth, sample rate, and memory depth, which directly impact the oscilloscope’s ability to accurately capture and analyze signals. Usability factors such as display quality, interface responsiveness, and connectivity options were also key, as they influence ease of operation. Build quality and reliability were considered to ensure longevity in a professional setting. We prioritized models that balance these technical features with price, identifying options suitable for both hobbyists and professionals. The ranking reflects a combination of technical performance, user experience, and value for money, with higher-tier models placed for demanding applications and more affordable options for entry-level users.Factors to Consider When Choosing Digital Storage Oscilloscopes
Choosing the right digital storage oscilloscope involves more than just looking at bandwidth or sample rate. Buyers should consider their specific needs, future-proofing their investment, and the practical features that enhance usability. A well-chosen oscilloscope can streamline troubleshooting, improve measurement accuracy, and expand testing capabilities. Here are key factors to consider before making a purchase.Bandwidth and Sample Rate
Bandwidth determines the highest frequency signal the oscilloscope can accurately measure, making it critical for high-frequency testing. Sample rate affects how precisely the device captures signal details; a higher rate results in more accurate waveform reconstructions. For most professional applications, a bandwidth of at least 100 MHz with a sample rate over 1 GSa/s is recommended. Cheaper models with lower specs may suffice for simple diagnostics or educational purposes but can miss fast transient events.
Memory Depth and Recording Length
Memory depth impacts how much data the oscilloscope can store for analysis. Deeper memory enables capturing long-duration signals at high resolution, which is vital for troubleshooting complex or intermittent issues. Conversely, limited memory can restrict the duration or detail of recordings, forcing compromises. When selecting a model, balance your need for detailed waveform data against the cost, as deeper memory typically raises the price.
Connectivity and Data Sharing
Modern oscilloscopes often include features like USB, LAN, HDMI, or Wi-Fi for remote control and data export. These capabilities are especially valuable in collaborative environments or automated testing setups. Ensure the device supports your preferred interfaces, and check for compatibility with common software for analysis or remote operation. Connectivity can significantly boost productivity, but some models may have limited or proprietary options that restrict data management flexibility.
Ease of Use and Display Quality
An intuitive interface, responsive controls, and a clear, high-resolution display make a big difference in day-to-day operation. Touchscreens, color-coded waveforms, and customizable layouts improve workflow and reduce errors. Avoid models with cluttered menus or sluggish response times, particularly if you plan to use the scope intensively. Investing in a user-friendly device can save time and reduce frustration, especially for less experienced users.
Additional Features and Multi-Functionality
Many digital oscilloscopes include extras like waveform generators, multimeters, or protocol analyzers, adding versatility and value. These multifunction units can be cost-effective for small labs or hobbyists, but they may compromise on specialized performance. Consider whether these features are essential for your applications or if a dedicated instrument would serve you better. Be mindful that added functions can introduce complexity or increase the learning curve.
Frequently Asked Questions
Is higher bandwidth always better for an oscilloscope?
Higher bandwidth allows you to measure faster signals and capture high-frequency noise or transients more accurately. However, for low-frequency or simple signals, a lower bandwidth scope might suffice and be more budget-friendly. Overpaying for bandwidth you don’t need can be wasteful, while choosing too low of a bandwidth can lead to missed details. Assess your typical working frequencies before selecting a scope to ensure you get the right balance of performance and cost.
Do I need a digital storage oscilloscope with a touchscreen?
Touchscreens can make navigating menus, zooming, and adjusting settings quicker and more intuitive, especially during complex measurements. They are generally easier to use than traditional knobs and buttons, particularly for beginners. However, they can sometimes be less precise for fine adjustments and may be more fragile or prone to glare. Consider your workflow and whether the added convenience aligns with your environment and usage style.
How important is connectivity for a digital storage oscilloscope?
Connectivity options like USB, LAN, or Wi-Fi are increasingly valuable for remote operation, data sharing, and automation. If you work in a collaborative setting or need to export large data sets regularly, these features can save significant time. On the other hand, if you primarily use the scope locally and don’t require frequent data transfer, built-in storage and basic interfaces might be sufficient. The right choice depends on your specific workflow and integration needs.
Should I prioritize a higher sample rate over memory depth?
Both are important, but their relevance depends on your application. A higher sample rate improves the accuracy of capturing fast transients, while greater memory depth allows for longer recordings at high resolution. If you often troubleshoot intermittent issues or analyze complex waveforms, prioritize memory depth to ensure you don’t miss critical details. For high-frequency signal fidelity, a higher sample rate is essential. Ideally, aim for a balance tailored to your typical testing scenarios.
Are multifunction oscilloscopes worth the extra cost?
Multifunction oscilloscopes that include features like waveform generators and multimeters can be cost-effective for small labs or hobbyists needing multiple tools in one device. They simplify setup and reduce clutter, but their performance in each function may be less specialized than dedicated instruments. For professional or high-precision work, separate, dedicated tools might provide better accuracy and flexibility. Evaluate whether the multifunction features streamline your workflow or if they compromise on the quality needed for your tasks.
Conclusion
For most users seeking a reliable, versatile digital storage oscilloscope, the Rigol DS1054Z offers outstanding performance at a reasonable price, making it the best overall choice. Those needing higher bandwidth for advanced diagnostics should consider the RIGOL DHO802. Beginners or hobbyists will find the FNIRSI DSO152 or FNIRSI DPOS350P more approachable and portable. Professionals requiring advanced connectivity and multi-functionality might lean towards the Siglent SDS1202X-E or Hantek DSO2D15. Each selection aligns with different priorities, whether affordability, performance, or ease of use, ensuring you find a model tailored to your specific needs.
