In 2026, I’m excited about eight high-end FPGA development boards that can really boost your projects. The CycloFlex, Nexys A7-100T, and Altera MAX10 are excellent for education and complex designs. Then there’s the Sipeed Tang Primer, Cmod A7, iCESugar-Pro, and Pluto FPGA, each with unique features for various applications. Whatever your goals are, these boards have you covered. Stick around to discover what sets each of these boards apart!
Key Takeaways
- The Cyclone 10 FPGA Development Board offers advanced features like 16,000 logic elements and a user-friendly interface for complex projects.
- Digilent Nexys A7-100T provides extensive educational resources, making it ideal for ECE curriculum and complex digital design training.
- Altera MAX10 MaxProLogic is beginner-friendly with 4,000 logic elements and versatile project development capabilities supported by Quartus Prime Lite Software.
- Sipeed Tang Primer 25K GW5A features a compact design with RISC-V CPU, suitable for educational purposes and modern application development.
- 7020 Pluto FPGA supports high-frequency RF projects with dual transmitters and gigabit Ethernet, enhancing communication capabilities in advanced systems.
| Cyclone 10 FPGA Development Board – CycloFlex |  | Best Versatility | FPGA Type: Altera Cyclone 10 | I/O Pins: 65 I/O pins | Memory: 128 Mbit Serial Flash | VIEW LATEST PRICE | See Our Full Breakdown |
| Digilent Nexys A7-100T: FPGA Trainer Board Recommended for ECE Curriculum |  | ECE Curriculum Favorite | FPGA Type: Artix-7 | I/O Pins: 100 I/O pins | Memory: 4,860 Kbits Block RAM | VIEW LATEST PRICE | See Our Full Breakdown |
| Altera MAX10 FPGA Development Board – MaxProLogic |  | Beginner-Friendly Classic | FPGA Type: Altera MAX10 | I/O Pins: 65 I/O pins | Memory: 200 Kbits embedded memory | VIEW LATEST PRICE | See Our Full Breakdown |
| Sipeed Tang Primer 25K GW5A FPGA Development Board |  | High-Speed Connectivity | FPGA Type: GW5A RISCV | I/O Pins: 76 GPIO pins | Memory: 64 Mbit SPI Flash | VIEW LATEST PRICE | See Our Full Breakdown |
| Cyclone 10 FPGA Development Board – CycloFlex | | Advanced Learning Kit | FPGA Type: Altera Cyclone 10 | I/O Pins: 65 I/O pins | Memory: 128 Mbit Serial Flash | VIEW LATEST PRICE | See Our Full Breakdown |
| Digilent Cmod A7: Breadboardable Artix-7 FPGA Module (Cmod A7-35T) |  | Breadboard-Friendly Design | FPGA Type: Artix-7 | I/O Pins: 8 Digital I/O | Memory: Not specified | VIEW LATEST PRICE | See Our Full Breakdown |
| iCESugar-Pro FPGA Development Board (ECP5 RISC-V) |  | Open-Source Innovator | FPGA Type: Lattice LFE5U | I/O Pins: 106 I/O pins | Memory: 32 MB SDRAM | VIEW LATEST PRICE | See Our Full Breakdown |
| 7020 Development Board for Pluto 2T2R FPGA |  | Enhanced RF Performance | FPGA Type: XC7Z020 | I/O Pins: Not specified | Memory: 1 GB DDR memory | VIEW LATEST PRICE | See Our Full Breakdown |
More Details on Our Top Picks

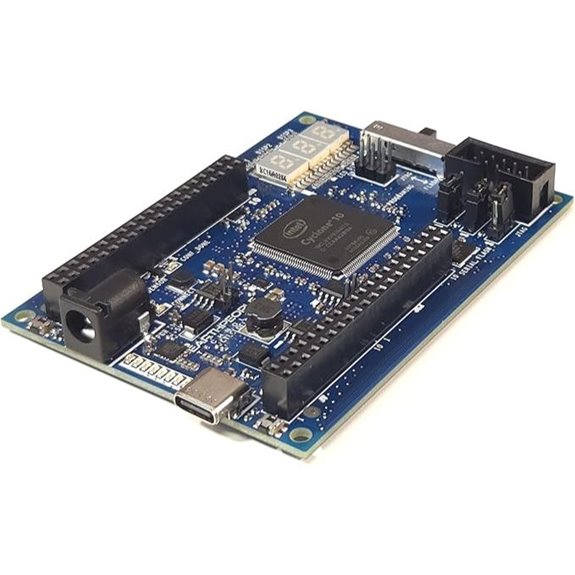

Cyclone 10 FPGA Development Board – CycloFlex
If you’re looking for a versatile FPGA development board that caters to both beginners and advanced users, the Cyclone 10 FPGA Development Board—CycloFlex is an excellent choice. With 16,000 logic elements and 128 Mbit of serial flash, it provides ample power for various projects. I love the flexibility of the USB-C and Barrel Connector power options. The 65 I/O pins and user-friendly features, like the seven-segment displays and RGB LED, make it easy to create interactive designs. Plus, the all-inclusive development kit and support materials enable me to dive deep into FPGA programming, whether I’m just starting or tackling complex applications.
- FPGA Type:Altera Cyclone 10
- I/O Pins:65 I/O pins
- Memory:128 Mbit Serial Flash
- Programming Interface:USB-C and Barrel Connector
- Development Software:Quartus Prime Lite
- User Interface:3 Seven Segment Displays, RGB LED, User LEDs
- Additional Feature:USB-C and Barrel Connector power options
- Additional Feature:Supports RISC-V soft processors
- Additional Feature:50MHz oscillator included
Digilent Nexys A7-100T: FPGA Trainer Board Recommended for ECE Curriculum
The Digilent Nexys A7-100T stands out as an ideal choice for students and educators in electrical and computer engineering (ECE) due to its robust features tailored for hands-on learning. With an Artix-7 FPGA offering 15,850 logic slices, it supports complex digital designs effortlessly. The board also includes 4,860 Kbits of fast block RAM for efficient data handling and six clock management tiles with PLLs for precise clock signal control. Its internal clock speeds exceeding 450 MHz make it perfect for advanced applications. Overall, this board provides a comprehensive (or all-encompassing) platform for FPGA training and prototyping, enhancing the educational experience.
- FPGA Type:Artix-7
- I/O Pins:100 I/O pins
- Memory:4,860 Kbits Block RAM
- Programming Interface:USB interface
- Development Software:Vivado Design Suite
- User Interface:2 LEDs, 1 RGB LED, 2 push buttons
- Additional Feature:Internal clock speeds >450 MHz
- Additional Feature:Designed for ECE curriculum
- Additional Feature:4,860 Kbits block RAM

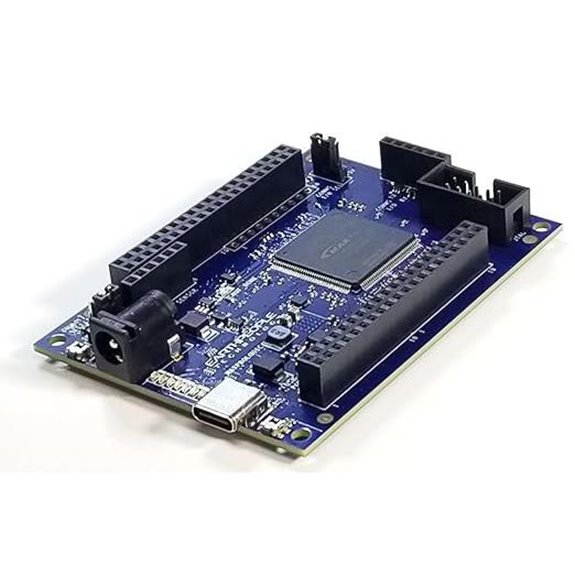

Altera MAX10 FPGA Development Board – MaxProLogic
Looking for a versatile FPGA development board that caters to both beginners and experienced developers? The Altera MAX10 FPGA Development Board – MaxProLogic might be just what you need. It features a powerful 10M04SA FPGA with 4,000 Logic Elements and 200 Kbits of embedded memory, perfect for diverse projects. With 65 I/O connectors, 8 user-configurable LEDs, and 8 analog input channels, it’s user-friendly and interactive. Plus, the Quartus Prime Lite Software streamlines design processes, supported by extensive tutorials and resources. Whether you’re learning or tackling advanced applications, this board is an excellent choice for your FPGA journey.
- FPGA Type:Altera MAX10
- I/O Pins:65 I/O pins
- Memory:200 Kbits embedded memory
- Programming Interface:USB interface
- Development Software:Quartus Prime Lite
- User Interface:8 User-configurable LEDs, pushbuttons
- Additional Feature:8 analog input channels
- Additional Feature:On-chip low voltage regulators
- Additional Feature:Quartus Prime Lite Software

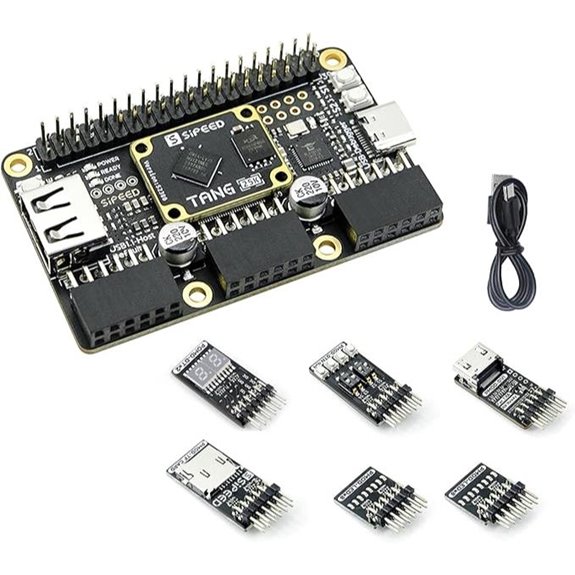

Sipeed Tang Primer 25K GW5A FPGA Development Board
For anyone diving into the world of FPGA development, the Sipeed Tang Primer 25K GW5A FPGA Development Board stands out as an ideal choice. With its 23K LUT4 FPGA and RISC-V CPU, it packs a powerful punch for various applications. The 40-pin GPIO header, along with PMOD interfaces, allows easy connections for HDMI and camera modules. Plus, it requires just a 5V power supply, making it compact and efficient. Whether you’re into game development or security systems, this board’s rich features and accessible programming make it perfect for educational purposes and complex projects alike.
- FPGA Type:GW5A RISCV
- I/O Pins:76 GPIO pins
- Memory:64 Mbit SPI Flash
- Programming Interface:USB interface
- Development Software:Not specified
- User Interface:Not specified
- Additional Feature:MIPI 2.5Gbps Ethernet support
- Additional Feature:76 GPIO pins available
- Additional Feature:Compact form factor design
Cyclone 10 FPGA Development Board – CycloFlex
When diving into advanced FPGA projects, the Cyclone 10 FPGA Development Board – CycloFlex stands out as an exceptional choice for both beginners and experienced developers. With 16,000 logic elements and 128 Mbit Serial Flash, it provides ample memory for your projects. I love its flexibility, featuring both USB-C and Barrel Connector power options. The board’s 65 I/O pins, three Seven Segment Displays, and user-friendly interface make it easy to create complex applications. Plus, the complete development kit includes resources like manuals and tutorials, ensuring you’re supported throughout your learning journey. It’s a fantastic tool for exploring FPGA capabilities!
- FPGA Type:Altera Cyclone 10
- I/O Pins:65 I/O pins
- Memory:128 Mbit Serial Flash
- Programming Interface:USB-C and Barrel Connector
- Development Software:Quartus Prime Lite
- User Interface:3 Seven Segment Displays, RGB LED, User LEDs
- Additional Feature:USB-C and Barrel Connector power options
- Additional Feature:Supports RISC-V soft processors
- Additional Feature:50MHz oscillator included
Digilent Cmod A7: Breadboardable Artix-7 FPGA Module (Cmod A7-35T)
The Digilent Cmod A7-35T stands out as an excellent choice for anyone diving into digital logic circuits or embedded system development. Its small, breadboard-friendly 48-pin DIP form factor makes prototyping a breeze. I love the on-board features, like the two LEDs, one RGB LED, and two push buttons—perfect for quick testing. With expansion options including a Pmod connector and 48-pin DIP connector, it’s versatile for various projects. Plus, the free Vivado Design Suite (WebPACK Edition) included is a fantastic bonus. Whether for education or personal projects, this module is a solid investment for any developer.
- FPGA Type:Artix-7
- I/O Pins:8 Digital I/O
- Memory:Not specified
- Programming Interface:USB interface
- Development Software:Vivado Design Suite
- User Interface:2 LEDs, 1 RGB LED, 2 push buttons
- Additional Feature:Breadboard-friendly DIP form factor
- Additional Feature:Expansion options with Pmod connector
- Additional Feature:Suitable for Microblaze designs
iCESugar-Pro FPGA Development Board (ECP5 RISC-V)
Designed specifically for developers and engineers looking to immerse themselves in RISC-V architecture, the iCESugar-Pro FPGA Development Board stands out with its support for an open-source toolchain, including yosys and nextpnr. With the Lattice LFE5U-25F chip, it offers 106 IOs, 32MB SDRAM, and SPI-Flash memory. You can run RISC-V Linux, making it perfect for complex applications. The on-board iCELink debugger simplifies your programming with drag-and-drop capabilities. Plus, the USB Type-C connection streamlines development and testing. I’ve found it to be an excellent choice for rapid prototyping and embedded projects, earning rave reviews from users.
- FPGA Type:Lattice LFE5U
- I/O Pins:106 I/O pins
- Memory:32 MB SDRAM
- Programming Interface:USB Type-C
- Development Software:Open-source toolchain
- User Interface:Not specified
- Additional Feature:Open-source toolchain support
- Additional Feature:On-board debugger included
- Additional Feature:Capable of RISC-V Linux

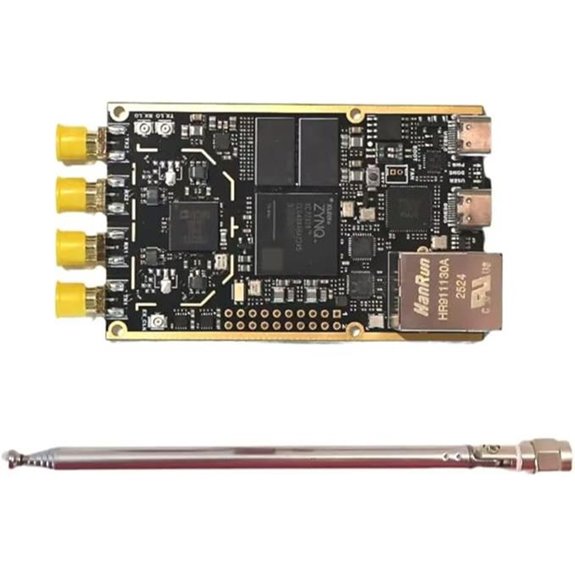

7020 Development Board for Pluto 2T2R FPGA
Engineers and developers seeking a robust platform for advanced signal processing will find the 7020 Development Board for Pluto 2T2R FPGA particularly appealing. Covering a frequency range from 70MHz to 6GHz, this board features dual transmitters and receivers, amplifiers, and upgraded DDR capacity of 1GB. The main control chip has been enhanced for better performance, ensuring your projects run smoothly. Plus, the added gigabit Ethernet port allows for seamless connectivity. With GPIOs for expansion, it’s versatile enough for various applications. Amazon’s return policy offers peace of mind, making it a solid choice for your next project.
- FPGA Type:XC7Z020
- I/O Pins:Not specified
- Memory:1 GB DDR memory
- Programming Interface:JTAG port
- Development Software:Linux OS
- User Interface:GPIOs for expansion
- Additional Feature:Dual transmitters and receivers
- Additional Feature:Upgraded to 1GB DDR
- Additional Feature:Impedance-controlled RF parts
Factors to Consider When Choosing High-End FPGA Development Boards
When I’m choosing a high-end FPGA development board, I consider several key factors that can impact my projects. Performance specifications, memory options, and connectivity are vital for meeting my specific needs. I also look for robust development tools and educational resources to support my learning and development process.
Performance Specifications and Capabilities
Choosing the right high-end FPGA development board hinges on understanding its performance specifications and capabilities. High-end boards usually boast advanced FPGA chips, like the Cyclone 10 or Artix-7, allowing for intricate designs due to their large logic element counts. You’ll find substantial onboard memory, often multiple megabits of SRAM, which enhances data processing and storage efficiency. With internal clock speeds exceeding 450 MHz, these boards excel in high-speed data handling and signal processing. They also offer extensive I/O options, featuring numerous GPIO pins and specialized interfaces like MIPI, USB, and Ethernet. Additionally, sophisticated clock management with PLLs and DLLs guarantees precise timing regulation, vital for high-performance applications. These features help elevate your projects to new heights.
Memory and Storage Options
What factors should you consider regarding memory and storage options when selecting a high-end FPGA development board? First, think about the on-chip memory. Large embedded RAM and dedicated cache can considerably enhance your board’s capacity to handle complex data processing tasks. Next, consider the storage solutions available, like serial Flash or external memory modules, which allow for easy access to firmware and user data. If you’re working on large-scale applications, look for boards with substantial external memory interfaces like DDR4 SDRAM for high-speed data transfer. Remember, the amount and type of memory you choose directly affect your board’s efficiency in running resource-intensive applications and soft-core processors. So, pick wisely!
Connectivity and I/O Support
While evaluating high-end FPGA development boards, I find that connectivity and I/O support are crucial factors that can considerably impact your project’s success. Boards with over 65 I/O pins allow for complex peripheral connections, which is essential for advanced applications. Look for support for diverse interfaces like HDMI, MIPI, PCIe, USB, and Ethernet; these options enable versatile integration with external devices. Many boards include Pmod connectors, letting you expand with additional modules and custom peripherals easily. High-speed data transfer interfaces, such as Gbps Ethernet or DDR memory, support real-time processing for data-intensive tasks. Plus, multiple user LEDs, pushbuttons, and display modules enhance testing and debugging, making your development process smoother and more interactive.
Development Tools and Environment
When I evaluate high-end FPGA development boards, the development tools and environment play a pivotal role in my decision-making process. I look for boards that support extensive environments like Quartus Prime or Vivado, as these facilitate advanced design and debugging. It’s essential for me to have dedicated software support, including simulation tools like ModelSim, which help in testing complex designs. I appreciate boards that offer seamless integration with HDL editors and synthesis tools, streamlining my workflow. Additionally, having programming and debugging interfaces such as USB and JTAG enhances usability and reduces my development time. Ultimately, compatibility with Linux-based environments and open-source toolchains provides the flexibility I need for effective software development and system integration.
Educational Resources and Tutorials
How can educational resources and tutorials enhance your experience with high-end FPGA development boards? They’re essential for steering through the complexities of FPGA design. Many advanced boards come with detailed user manuals, schematics, and tutorial guides that lead you through setup, simulation, and even creating test benches. This hands-on experience is invaluable! You’ll find that access to software tools like ModelSim or Quartus Prime is often supported by these resources, helping you understand design workflows better. Boards aimed at education typically offer step-by-step guides for projects ranging from beginner to advanced, making your learning progression smoother. Plus, supplementary resources like online repositories and community forums further support self-directed learning, ensuring you’re never alone on your journey.
Power Supply Flexibility
Having a solid grasp of educational resources and tutorials lays the groundwork for tackling more technical aspects of high-end FPGA development boards, including the essential factor of power supply flexibility. Many of these boards support multiple power input options, like USB-C and barrel connectors, which makes integrating them into various projects easier. I’m particularly drawn to boards with onboard voltage regulators and power management circuits, as they guarantee reliable operation across different power sources. This flexibility is vital for high-performance applications that require stable voltage and current levels, typically from +4.5V to +5.5V and up to 3A or more. Switching between power sources enhances usability, whether I’m working in a lab or deploying in the field.
Form Factor and Size
Choosing the right form factor and size for high-end FPGA development boards can considerably affect your project’s success. Larger boards, like those in ATX or micro-ATX formats, often guarantee compatibility with existing systems, which is vital. If you’re dealing with tight spaces, compact options like Pmod or DIP modules are perfect for breadboarding and prototyping. Some boards feature custom or modular designs, allowing for additional peripherals and expansion slots, which can be a game-changer. Don’t overlook the physical size and weight; these factors impact portability and integration into embedded or mobile applications. Always check the dimensions to make sure your FPGA board fits well within your enclosures or mounting setups. It’s all about making the right choice for your specific needs!
Frequently Asked Questions
What Are the Key Applications for High-End FPGA Development Boards?
High-end FPGA development boards are perfect for a variety of applications. I’ve found them invaluable in areas like digital signal processing, telecommunications, and machine learning. They’re also great for high-performance computing and real-time data processing. When I work on complex algorithms, these boards provide the flexibility and speed I need. Plus, they’re fantastic for prototyping custom hardware solutions, allowing me to push the limits of innovation in my projects.
How Do I Choose the Right FPGA Development Board for My Project?
When I choose an FPGA development board, I first consider my project’s requirements, like processing power and I/O options. Next, I evaluate the available documentation and community support, as I want to make certain I can find help if needed. I also think about the budget; finding a balance between features and cost is vital. Finally, I check compatibility with existing tools, making sure everything will integrate smoothly for a successful outcome.
What Programming Languages Are Commonly Used With FPGA Development Boards?
When I built my first FPGA project, it felt like learning a new language. Common programming languages I use with FPGA development boards include VHDL and Verilog, which are like the grammar that structures my design. I’ve also dabbled in SystemVerilog and even C/C++ for high-level synthesis. Each language offers unique strengths, much like different dialects, helping me express my ideas effectively. Choose one that fits your project’s needs, and start creating!
Are There Any Online Communities for FPGA Development Board Users?
Yes, there are several online communities for FPGA development board users! I’ve found great resources on platforms like Reddit, particularly in the FPGA subreddit, where enthusiasts share tips and projects. Additionally, groups on LinkedIn and forums like Xilinx and Intel’s communities are invaluable. These spaces allow us to ask questions, collaborate, and learn from each other’s experiences. Joining these communities has really helped me grow in my FPGA development journey!
What Is the Average Lifespan of an FPGA Development Board?
The average lifespan of an FPGA development board is typically around 5 to 10 years, depending on usage and care. I’ve found that if I keep mine in a stable environment, avoiding excessive heat and dust, they can last even longer. Of course, technology advances quickly, so while the hardware may still work, I often feel the need to upgrade for better performance and features as new models come out.
Conclusion
In exploring these high-end FPGA development boards, I hope you feel inspired to elevate your projects. Whether you’re seeking versatility with the CycloFlex, diving into educational tools like the Nexys A7, or pushing boundaries with the iCESugar-Pro, there’s something here for everyone. Choose wisely, invest in quality, and embrace the innovation that FPGA technology offers. With the right board in hand, your creative possibilities are endless, and your projects will surely thrive!
