Based on my latest research, the top five nano-oscilloscopes of 2025 combine compact designs with high-resolution displays, fast sampling rates, and versatile features like waveform storage and spectrum analysis. Models like the OWON SDS215, Hantek TO1112D, UNI-T UPO1102, HDS272S, and OWON SDS220S offer excellent performance for precise testing in portable formats. If you keep exploring, you’ll find detailed insights into each device’s strengths to help you choose the best fit.
Key Takeaways
- The latest models feature high-resolution screens, intuitive touch interfaces, and multifunctional tools like spectrum analysis and signal generators.
- They offer bandwidths up to 200MHz and sampling rates up to 1GSa/s for accurate high-frequency signal measurement.
- Compact, lightweight designs with rechargeable batteries enable portable testing in field and educational settings.
- Compatibility with standard probes and optimized input specifications ensure precise measurements of diverse signals.
- Advanced features such as waveform storage, protocol decoding, and automation support detailed diagnostics and efficient testing.

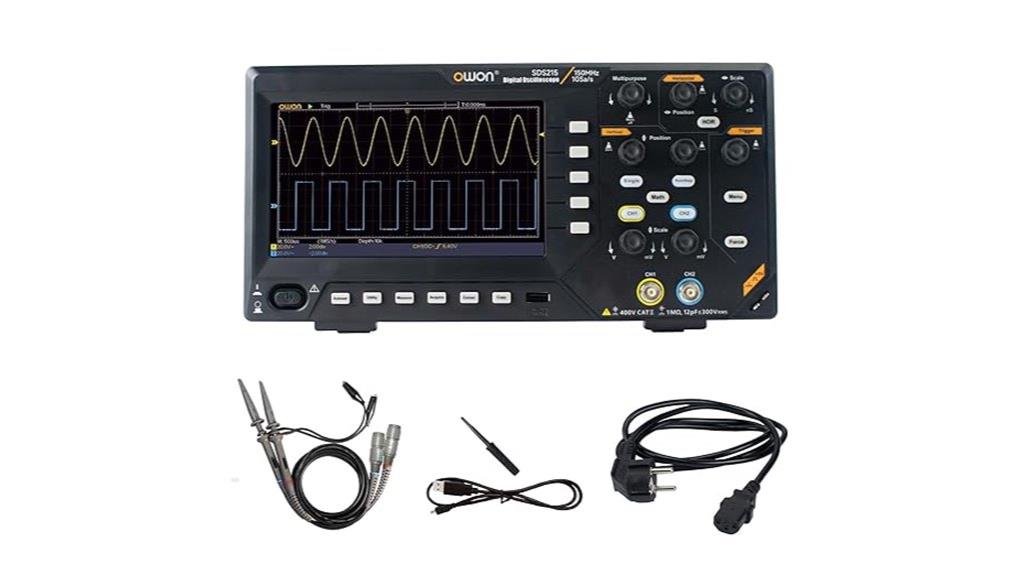

OWON Digital Oscilloscope with Dual-Channel, 7-inch TFT-LCD Display, Portable Kit (SDS215)
The OWON SDS215 stands out as an ideal choice for electronics enthusiasts and students who need a portable, yet capable oscilloscope. Its dual channels and 7-inch high-definition TFT-LCD display deliver clear, detailed signal visualization. With a real-time sampling rate of up to 1GSA/S and 150MHz bandwidth, it handles complex signals efficiently. Weighing just about 1.1 kg, this lightweight device is easy to carry and stable on any surface, thanks to flip-out back feet. Its versatile features include automatic adjustments, waveform storage, cursor measurements, FFT analysis, and built-in signal generation—making it a powerful, user-friendly tool for various electronics projects.
Best For: electronics hobbyists, students, and professionals seeking a portable, versatile oscilloscope with reliable measurement and signal generation capabilities.
Pros:
- High-definition 7-inch TFT-LCD display ensures clear signal visualization.
- Lightweight (approximately 1.1 kg) and compact, ideal for portable use.
- Multiple features including waveform storage, FFT analysis, built-in signal generator, and automatic adjustments for versatile testing.
Cons:
- Slight waveform fuzziness may affect ultra-precise measurements.
- Bandwidth limited to 150MHz (upgrade versions may vary), which might not suit very high-frequency applications.
- Some users may find the interface less intuitive compared to more advanced or professional oscilloscopes.
Hantek Tablet Oscilloscope 2CH Digital Storage Oscilloscope
If you’re looking for a portable, user-friendly oscilloscope that combines advanced features with ease of use, the Hantek Tablet Oscilloscope 2CH Digital Storage model TO1112D is an excellent choice. It offers a 110MHz bandwidth, 250MSa/s sampling rate, and 8 million points of storage, making detailed waveform analysis straightforward. The 7-inch multi-touch screen provides intuitive control, while built-in functions like FFT spectrum analysis, data storage, and multiple trigger options enhance versatility. Its integrated multimeter and 25MHz waveform generator add further value, making it ideal for automotive, lab, and technical testing on the go. Overall, it’s a compact powerhouse for precise diagnostics.
Best For: hobbyists, technicians, and students seeking a portable, feature-rich oscilloscope for quick diagnostics and detailed waveform analysis.
Pros:
- Compact and portable design with a 7” multi-touch touchscreen for intuitive operation
- High bandwidth of 110MHz and 250MSa/s sampling rate for detailed waveform capture
- Built-in multimeter and waveform generator add multifunctionality for versatile testing
Cons:
- Some probes have bandwidth limitations (only up to 70MHz), restricting full use of the scope’s 110MHz bandwidth
- Touchscreen operation, while user-friendly, may lack the tactile feedback some users prefer over physical controls
- Startup time and setup could be improved for faster initial use

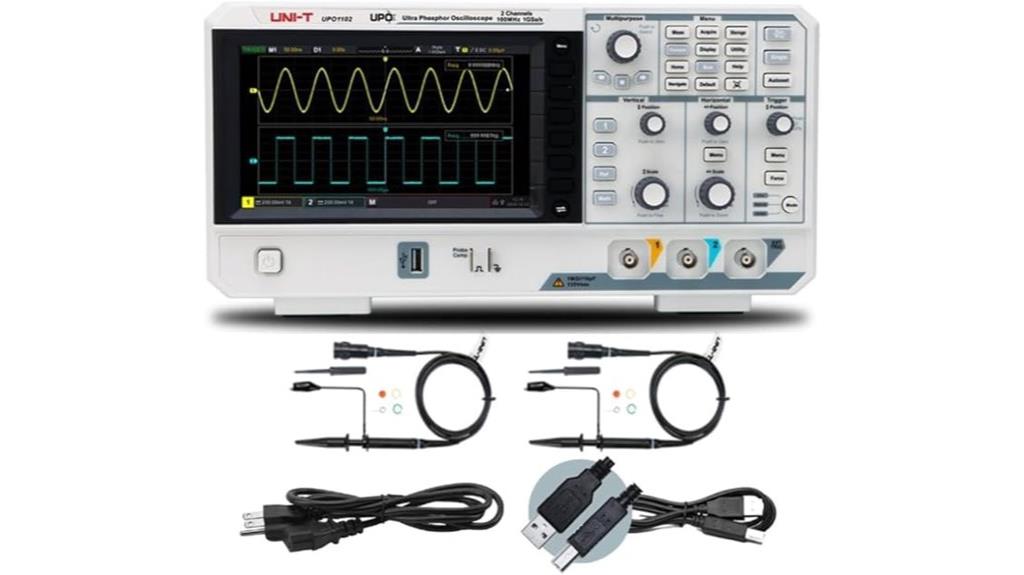

UNI-T UPO1102 Digital Oscilloscope (UPO1102)
For professionals seeking a reliable, portable digital oscilloscope with high-speed performance, the UNI-T UPO1102 stands out as an excellent choice. It offers 100MHz bandwidth, 2 channels, and a 1 GSa/s sampling rate, ensuring precise signal capture. The 7-inch display provides clear visuals, while the 56 Mpts memory supports detailed analysis. Features like spectrum analysis, real-time decoding, and cursor measurements make it versatile for various testing scenarios. Its compact design, weighing just over 8 pounds, allows easy transport for fieldwork or lab use. Overall, the UPO1102 delivers impressive performance and value, earning high customer praise.
Best For: professionals and engineers needing a portable, high-speed digital oscilloscope for precise signal analysis in both laboratory and field environments.
Pros:
- High performance with 100MHz bandwidth and 1 GSa/s sampling rate for accurate signal capture
- Compact and lightweight design weighing just over 8 pounds for easy portability
- Advanced features like spectrum analysis, real-time decoding, and cursor measurements for versatile testing
Cons:
- Limited to 2 channels, which may not suit more complex multi-signal testing
- Slightly higher price point compared to basic oscilloscopes with similar bandwidth
- May require familiarity with digital oscilloscopes and spectrum analysis for full utilization

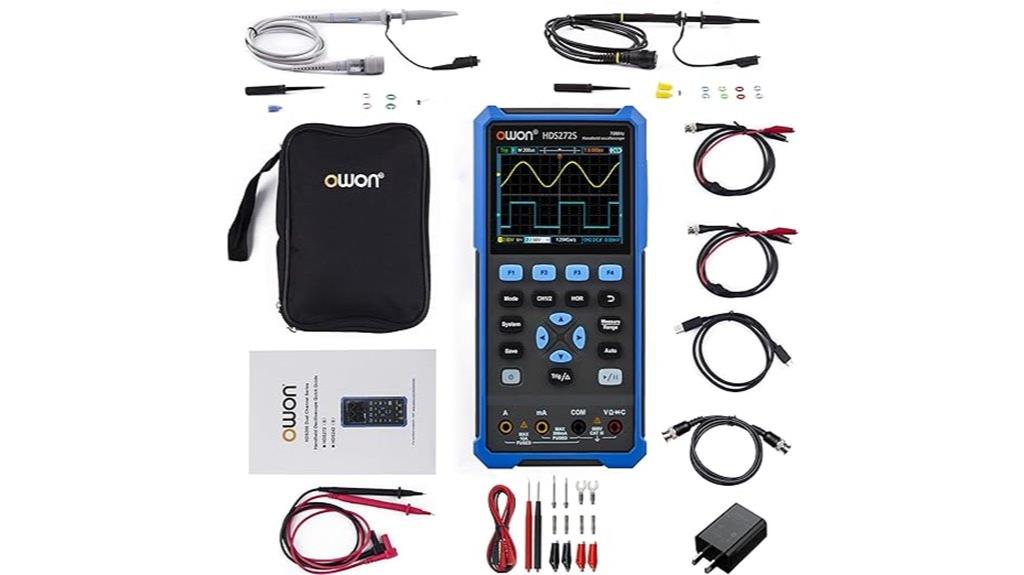

HDS272S Handheld Oscilloscope with Multimeter and Waveform Generator
Designed for field technicians and engineers, the HDS272S handheld oscilloscope stands out with its all-in-one functionality, combining an oscilloscope, multimeter, and waveform generator in a compact device. Its 3.5-inch high-resolution color LCD ensures clear readings even outdoors. With 70MHz bandwidth, 250MS/s sample rate, and 8K record length, it provides precise measurements. The device features two channels, a built-in multimeter with 20,000 counts, and a reliable waveform generator. Powered by a rechargeable 4400mAh battery, it offers around six hours of continuous use. Its practical design makes troubleshooting, diagnostics, and educational tasks straightforward, making it an essential tool for professionals on the go.
Best For: field technicians, engineers, and educators seeking a versatile, portable testing device for troubleshooting, diagnostics, and educational experiments.
Pros:
- Combines oscilloscope, multimeter, and waveform generator in one compact device for versatile use.
- High-resolution 3.5-inch color LCD provides clear readings even outdoors.
- Long battery life of approximately six hours supports extended fieldwork without needing power.
Cons:
- Limited bandwidth of 70MHz may not meet the needs of high-frequency applications.
- Small size and handheld design may be less suitable for detailed, lab-grade work requiring larger displays.
- Rechargeable battery, while convenient, may need replacement over time to maintain optimal operation.

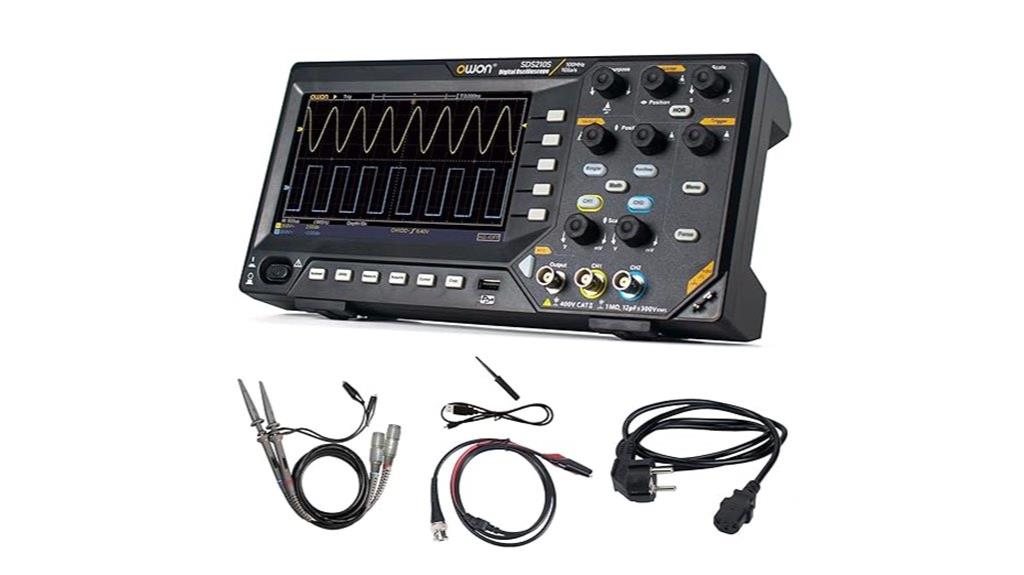

OWON SDS220S Digital Oscilloscope (200MHz, 2+1 Channels)
The OWON SDS220S Digital Oscilloscope stands out as an ideal choice for electronics enthusiasts and professionals seeking reliable performance without breaking the bank. With a 200MHz bandwidth, dual channels, and a 1GSa/s sampling rate per channel, it handles detailed signal analysis efficiently. The 7-inch TFT display offers clear visualization, while features like FFT spectrum analysis, waveform storage, and automatic measurements enhance usability. Its compact, lightweight design makes it portable for fieldwork and labs. Supporting remote control via USB and compatibility with SCPI and LabVIEW, it’s versatile for testing, debugging, and educational purposes—all at an accessible price point.
Best For: electronics enthusiasts, engineers, and educators seeking a reliable, portable oscilloscope with solid features at an accessible price point.
Pros:
- 200MHz bandwidth with dual channels and 1GSa/s sampling rate per channel for detailed signal analysis
- 7-inch TFT display with clear visualization, zoom, and waveform storage capabilities
- Supports remote control via USB, SCPI, and LabVIEW for automation and secondary development
Cons:
- Physical interface controls could benefit from larger labels for easier operation
- Pixelation of waveforms and minor screen dead pixels may affect visual clarity
- Some noise at high zoom levels during detailed waveform inspection
Factors to Consider When Choosing Nano‑Oscilloscopes
When selecting a nano-oscilloscope, I focus on key factors like bandwidth and sampling rate to guarantee accurate measurements. Portability and display quality matter too, especially for working in tight spaces or on the go. Additionally, I check probe compatibility and extra features that can enhance my testing capabilities.
Bandwidth and Sampling Rate
Ever wondered how to guarantee your nano-oscilloscope captures the fastest, most detailed signals? It all comes down to bandwidth and sampling rate. A higher bandwidth lets your scope accurately measure signals with rapid rise times and high-frequency components, preventing distortion and attenuation. Meanwhile, the sampling rate determines how often data points are recorded; the higher it is, the better the waveform reconstruction, especially for high-frequency signals. According to the Nyquist theorem, your sampling rate should be at least twice the highest frequency component, but going higher minimizes aliasing and enhances detail. Combining sufficient bandwidth with a fast sampling rate ensures you don’t miss transient events or subtle features, giving you a clear, precise picture of complex signals. These factors are essential for capturing detailed, accurate measurements in demanding testing environments.
Portability and Size
Choosing a nano-oscilloscope often hinges on its portability and size, which are crucial for fieldwork and troubleshooting in tight spaces. These devices are designed to be compact and lightweight, often fitting comfortably in the palm of your hand, making them easy to carry and deploy anywhere. Their small footprint allows for quick setup and use in confined environments or on-the-go scenarios. To maximize space, they typically feature fewer physical controls and a simplified interface. Many models include rechargeable batteries, enabling testing in remote locations without power access. Despite their small size, many nano-oscilloscopes deliver high bandwidth and sampling rates comparable to larger bench-top units, ensuring reliable, precise testing even in compact form factors.
Display Quality and Interface
A high-quality display is essential for accurate and efficient analysis with nano-oscilloscopes, especially in challenging lighting conditions. I look for a high-resolution screen, like a 7-inch TFT-LCD with at least 800×480 pixels, to guarantee signal details are crisp and easy to interpret. Touchscreen interfaces make navigation intuitive, but physical buttons can sometimes offer more precise control, so flexibility is key. Brightness and contrast levels must adapt to various environments, whether outdoors or in dim labs. An easy-to-read interface with clear icons and organized menus helps reduce errors and speeds up setup. Features like zooming, freezing, and overlaying waveforms directly on the display enhance measurement accuracy and comparison, making the device a powerful testing tool.
Input Probes Compatibility
When selecting input probes for nano-oscilloscopes, ensuring compatibility is essential for accurate measurements and reliable operation. Some models support standard BNC probes, while others require specialized or proprietary probes, so verifying compatibility is vital. The probe’s bandwidth should match or exceed the oscilloscope’s bandwidth to prevent signal distortion and maintain measurement integrity. Attenuation ratios, like 1X, 10X, or 100X, impact measurement accuracy, so choosing probes with compatible ratios is important. Additionally, the input impedance (usually 1 MΩ) and capacitance must align with the oscilloscope’s specifications to avoid signal loading or distortion. For digital or USB probes, confirm compatibility, as these often have different requirements compared to traditional analog probes, ensuring seamless operation.
Additional Features and Tools
In selecting a nano-oscilloscope, considering its additional features and tools is essential for maximizing functionality and efficiency. Built-in signal generators, FFT spectrum analysis, and multiple trigger modes boost versatility, making testing more exhaustive. Tools like cursor measurements, waveform math functions, and storage options—such as waveform groups and USB storage—enhance measurement accuracy and streamline data management. Some models include integrated multimeters, waveform generators, and protocol decoding for UART, SPI, or I2C, broadening diagnostic capabilities. Remote control via SCPI protocol and software support facilitate automation, data logging, and extended analysis. Features like high-resolution displays, multiple waveform analysis tools, and extensive connectivity options enable faster troubleshooting and more precise experimentation. These additional features ensure your nano-oscilloscope adapts seamlessly to complex testing needs.
Frequently Asked Questions
What Is the Typical Battery Life of These Nano-Oscilloscopes?
The battery life of these nano-oscilloscopes typically ranges from 4 to 8 hours on a single charge, depending on usage and settings. I’ve found that lightweight testing and data collection tend to conserve power, while high-frequency sampling can drain batteries faster. I recommend carrying a portable charger or spare batteries if you plan to use it extensively during fieldwork. This way, you won’t miss a beat in your testing sessions.
How Do Nano-Oscilloscopes Compare With Traditional Bench Oscilloscopes?
Nano-oscilloscopes are more portable and convenient than traditional bench models, making them perfect for on-the-go testing. While they might have slightly lower bandwidth and fewer features, they excel in ease of use and quick setup. I find them ideal for fieldwork or quick diagnostics, but for detailed, high-frequency analysis, I still prefer a bench scope. Overall, they complement traditional oscilloscopes nicely.
Can These Devices Analyze High-Frequency Signals Beyond Their Bandwidth?
Did you know nano-oscilloscopes can analyze signals slightly beyond their bandwidth? I’ve found that while they’re designed with specific frequency limits, advanced signal processing techniques like oversampling help me interpret some high-frequency signals just above their specs. Though not perfect, this approach allows me to get valuable insights without needing larger, traditional equipment. It’s a clever way to extend their capabilities and still achieve precise testing results.
Are Software Updates Available for Expanding Device Functionalities?
Yes, software updates are available to expand device functionalities. I regularly check for firmware updates from manufacturers, as they often introduce new features, improve performance, and enhance compatibility. Updating my nano-oscilloscope guarantees I get the most out of its capabilities, especially for advanced testing and analysis. Staying current with updates is essential for maintaining precision and leveraging the latest technological advancements in these compact devices.
What Are the Typical Maintenance Requirements for Nano-Oscilloscopes?
I find that regular maintenance for nano-oscilloscopes mainly involves keeping the device clean, especially the probes and contacts, to guarantee accurate readings. I also calibrate them periodically as recommended by the manufacturer to maintain precision. Additionally, I check software updates for new features or bug fixes. Handling the oscilloscope carefully, avoiding physical shocks, and storing it properly extend its lifespan and keep it functioning at its best.
Conclusion
Choosing the right nano-oscilloscope means balancing power, portability, and precision. Whether you prioritize dual channels, touchscreen interfaces, or integrated tools like multimeters and waveform generators, there’s a compact powerhouse for you. By considering your testing needs, budget, and portability preferences, you can find the perfect fit. Remember, the best nano-oscilloscope isn’t just about features—it’s about empowering you to test accurately, work efficiently, and innovate confidently every single time.
